ZKTeco MB20-VL Installation Guide

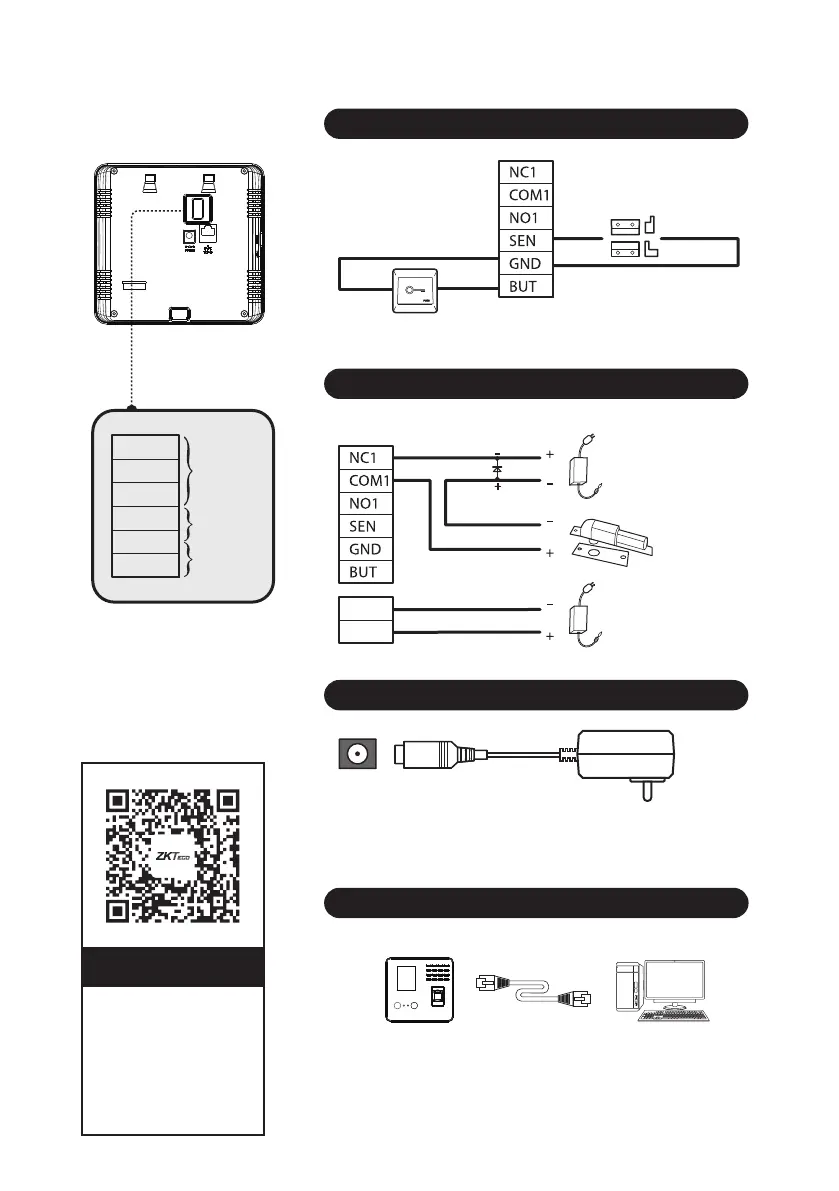

Wiring Diagram
1. Recommended AC adapter: 5V, 2A
2. To share the power with other devices, use an AC adapter
with higher current ratings.
Power Connection
Ethernet Connection
Door Sensor & Exit Button Connection
Lock Relay Connection
Door Sensor
Exit button
GND
+5V
DC12V
DC5V
NC Lock
FR107
Not sharing power with the lock
COM1
NO1
BUT
GND
SEN
NC1
Sensor
Button
Lock
Terminals
Scan the QR Code
and Download
the User Manual,
Installation Guide
and Quick Start Guide
Connect the device and computer software over an Ethernet cable.
Note: In LAN, IP addresses of the server (PC) and the device must be in
the same network segment when connecting to ZKBioAccess IVS software.
Click on [Comm.] > [Ethernet] > [IP Address], input the IP address and
click on [OK].
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
ZKBioAccess IVS
Download Center
