ZKTeco PL10 Installation Instruction

Door Preparation
Note: The standard lock includes 2 mounting hardware packages only, which are used for the door
thickness of 39-46mm and 47-54 mm separately.

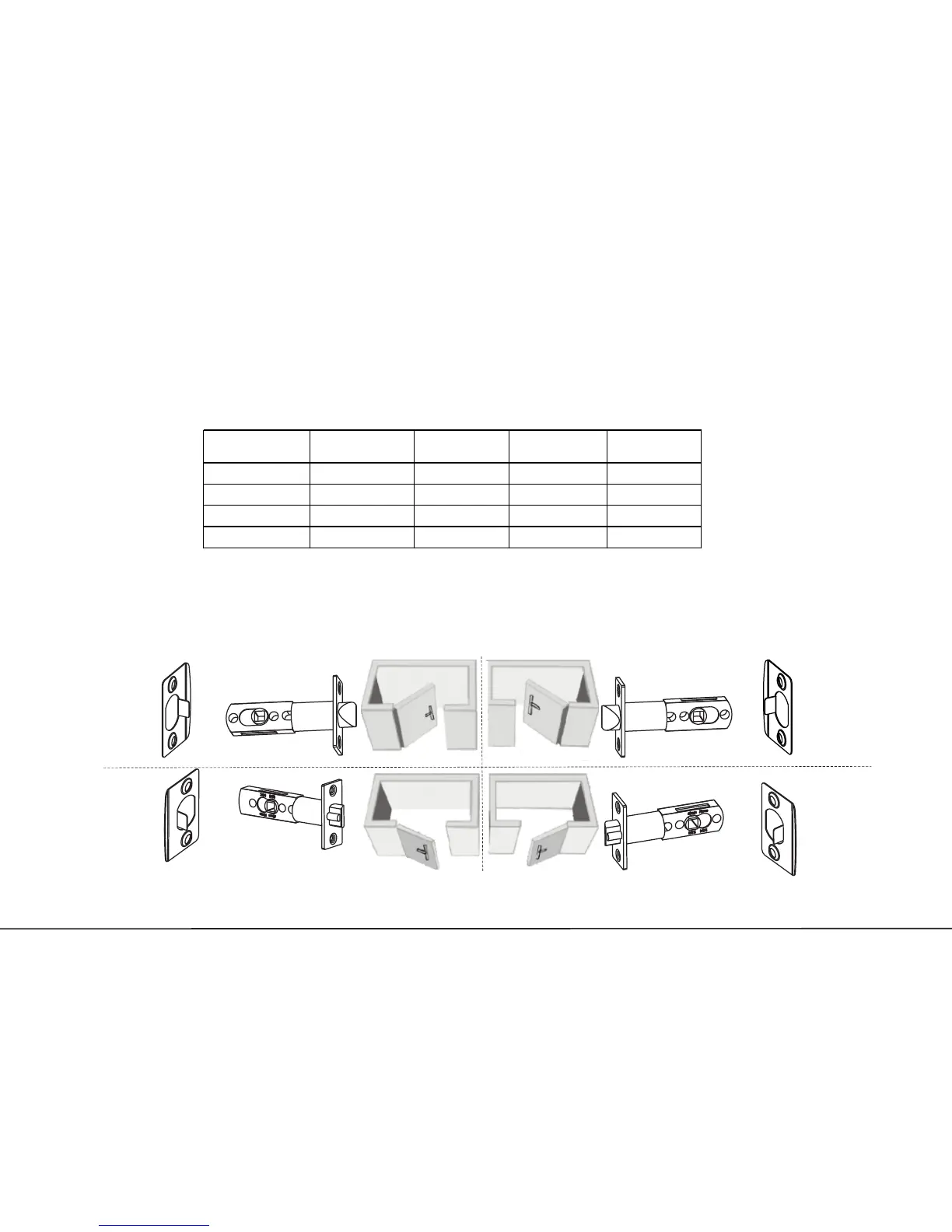

Note: Please refer to the above picture to adjust the direction of strike plate F and latch D.
1. Check the door thickness and prepare the corresponding mounting
hardware package.
2. Check door opening direction.
F
F
F
F
D
D
D
D
30~38 56 20 10 25
39~46 64 30 10 35
47~54 72 35 10 40
55~60 80 45 10 50
H Spindle Length
(mm)
J Screw Length
(mm)
M Screw Length
(mm)
L Screw Length
(mm)
Door Thickness
(mm)
Left inward Right inward
Left outward Right outward
3

ZKTeco PL10 Specifications

General

Brand	ZKTeco
Model	PL10
Category	Locks
Language	English
