ZKTeco ProFace X Installation Guide

3

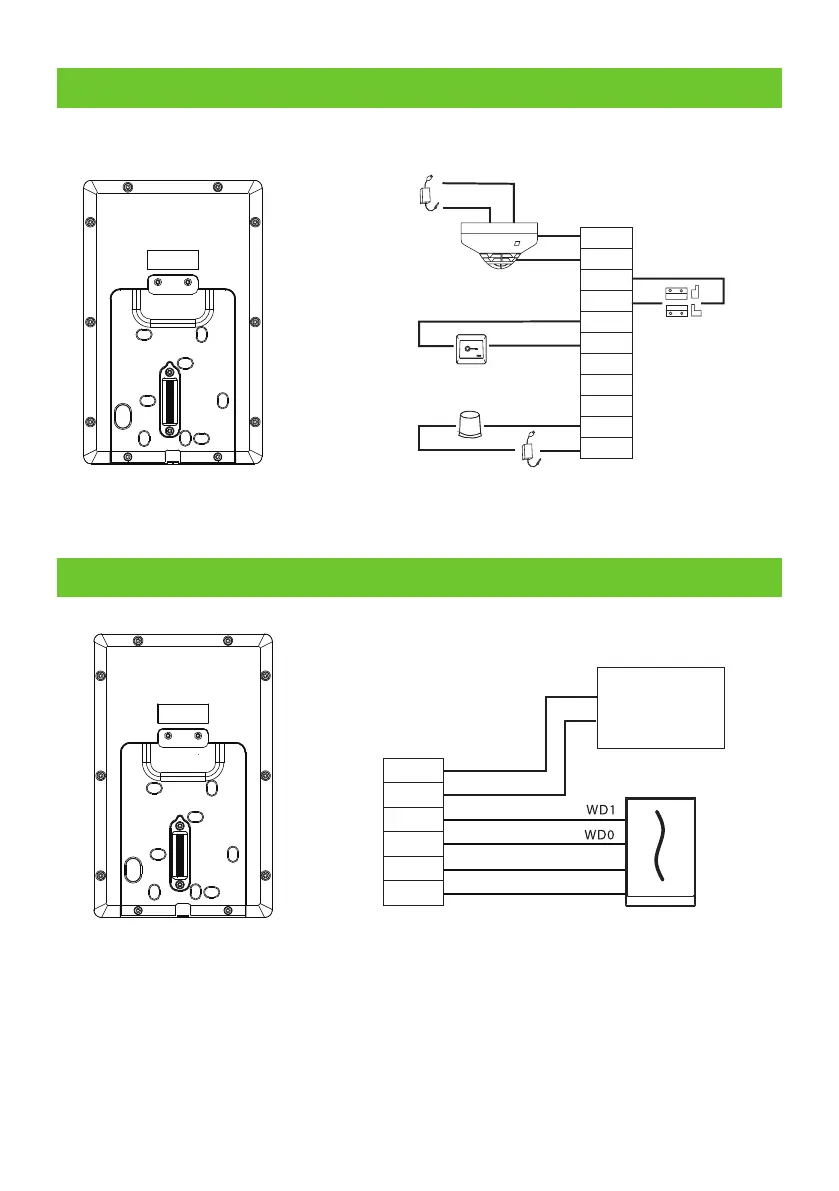

Door Sensor, Exit Button & Alarm Connection
Door Sensor
Alarm Power
Alarm
Detector Power
SmokeDetector
ExitButton
-
+
-
+
-
+
AUX
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
GND
NO
COM
Wiegand Reader Connection
Access controller
+12V
GND
Wiegand reader
INWD0
INWD1
12V
GND
WD0
WD1

ZKTeco ProFace X Specifications

General

Type	Face recognition terminal
IK code	IK04
Face capacity	30000
Product color	Black, Grey
User capacity	50000 user(s)
Event capacity	1000000
Wiegand interface	Yes
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
International Protection (IP) code	IP68
Operating temperature (T-T)	-30 - 60 °C
RS-232 ports	1
Screen shape	Flat
Display diagonal	8 \
Display technology	LED
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Input current	2 A
Input voltage	12 V

Weight and Dimensions

Depth (with stand)	26 mm
Width (with stand)	143 mm
Height (with stand)	227 mm
