2. C
onnected to the barrier gate
When the radar is connected to the P15, PB4000, CMP200, BG1000 barrier gate, the normally ope
n
signal wire of the radar, that is, the blue and green wires, are connected to the ground sense coil
terminals and common terminals of the barrier control main board (no distinction between positive
and negative).
R

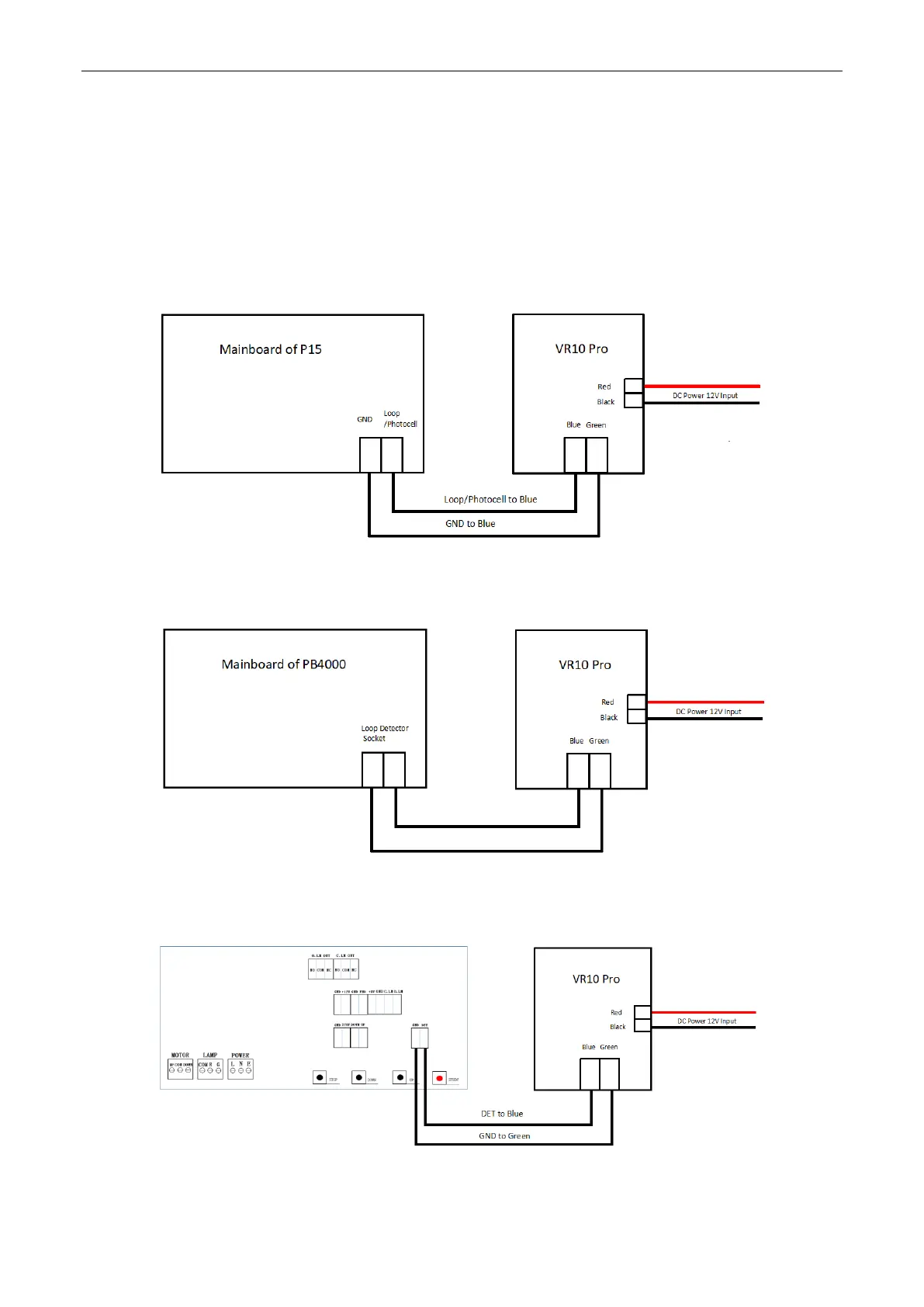

adar connected to P15 barrier gate
R
adar connected to PB4000 barrier gate
R
adar connected to CMP200 barrier gate
