Step 5

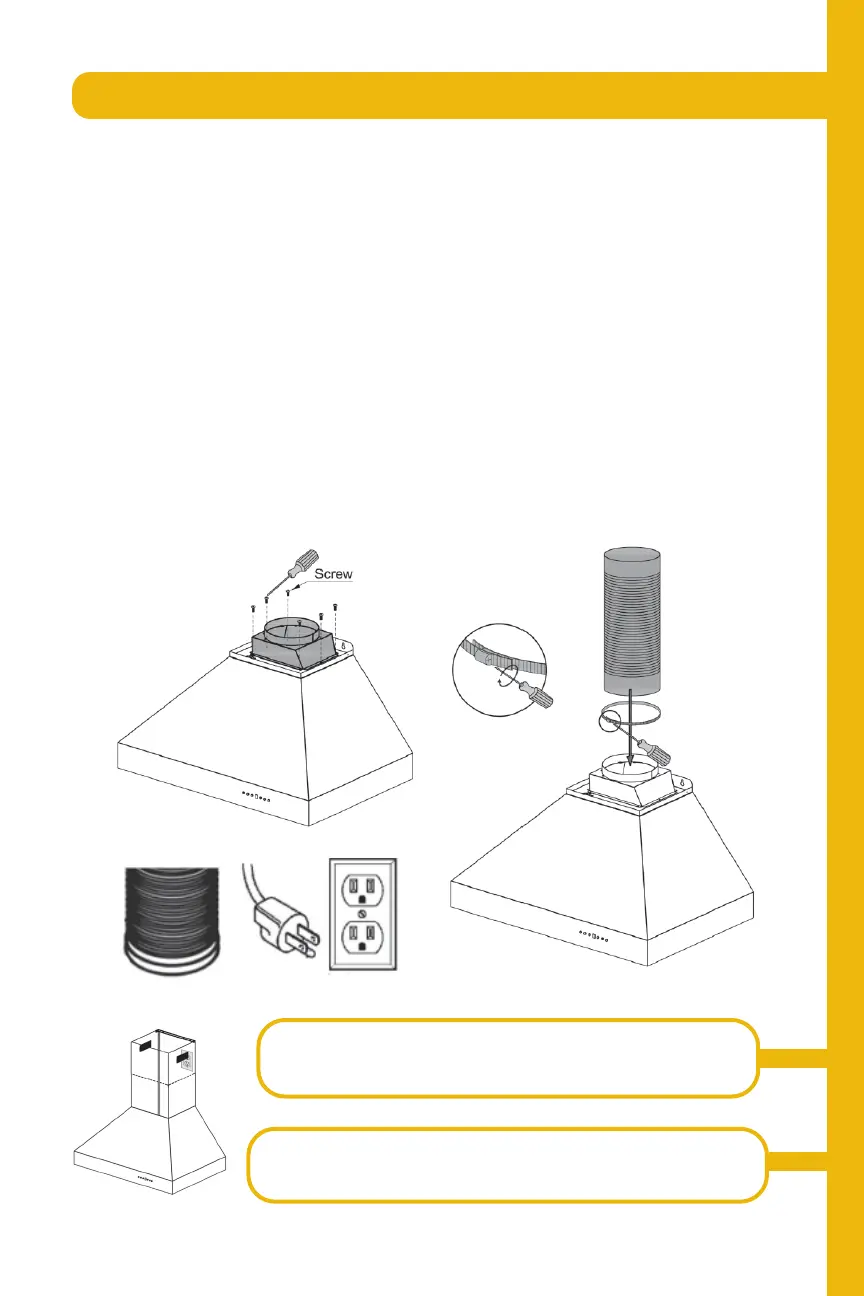

Install the transition piece securing it with the screws provided. Figure 4
Step 6
Make your electrical and ducting connections. Try and minimize the use of elbows.
More elbows and longer runs create higher static pressure. The hood comes with a
grounded three prong plug that can either be direct wire or plugged into a 20 amp
circuit. The cord is 45” long. Figure 5
Step 7
Connect the ducting to the transition piece using a ring to hold it into place. Attach the
ducting to the range hood. Figure 6
Wall Range Hood Installation
Figure 4
Figure 6Figure 5
Place the cord behind the chimney or in the attic. An outlet
behind the chimney, to either the left or right is ideal. Shown left.
ZLINE provides a ducting ring for the 8” metal ductwork. The
ring for the PVC 6” can be found at the local hardware store.
