GUIDELINES FOR USING SURFACE BURNERS
• Both the SGR30 series ranges and SGR36 series ranges operate using electric ignition;
all burners have a special auto re-ignition feature. Burners will relight if the flame
goes out suddenly due to a wind gust or other reason. The auto re-ignition feature will
automatically detect the loss of flame and reignite the burner if gas is still flowing.
• When pushing in one burner knob, sparking will occur on all surface burners, but only
the burner activated will receive gas flow. This is a perfectly normal feature for gas
ranges for all burners to spark at once when igniting a burner.
• Keep all burners clean. Especially after a spill or boil over, make sure you clean the
affected burners before using them again. Food residue may clog the igniter and
notches of the burner spread, stopping the burner from functioning correctly.
• Check that the burner flames are regular. They should be blue with little to no yellow
tipping, and burn without fluttering all around the burner cap.
MANUAL FLAME ADJUSTMENT
• Each range includes a flame adjustment feature if
burners experience irregular flame sizes or are too
yellow or orange in color. Ranges are designed to
ensure flames are set at appropriate levels. Should
an adjustment be needed, follow these steps:
• Light one burner at a time and set it to the lowest
position. Next, remove the knob by firmly and
carefully pulling it straight out.
• Inside each burner is an adjustment valve. Using
a 2 mm x 50 mm flathead screwdriver, locate the

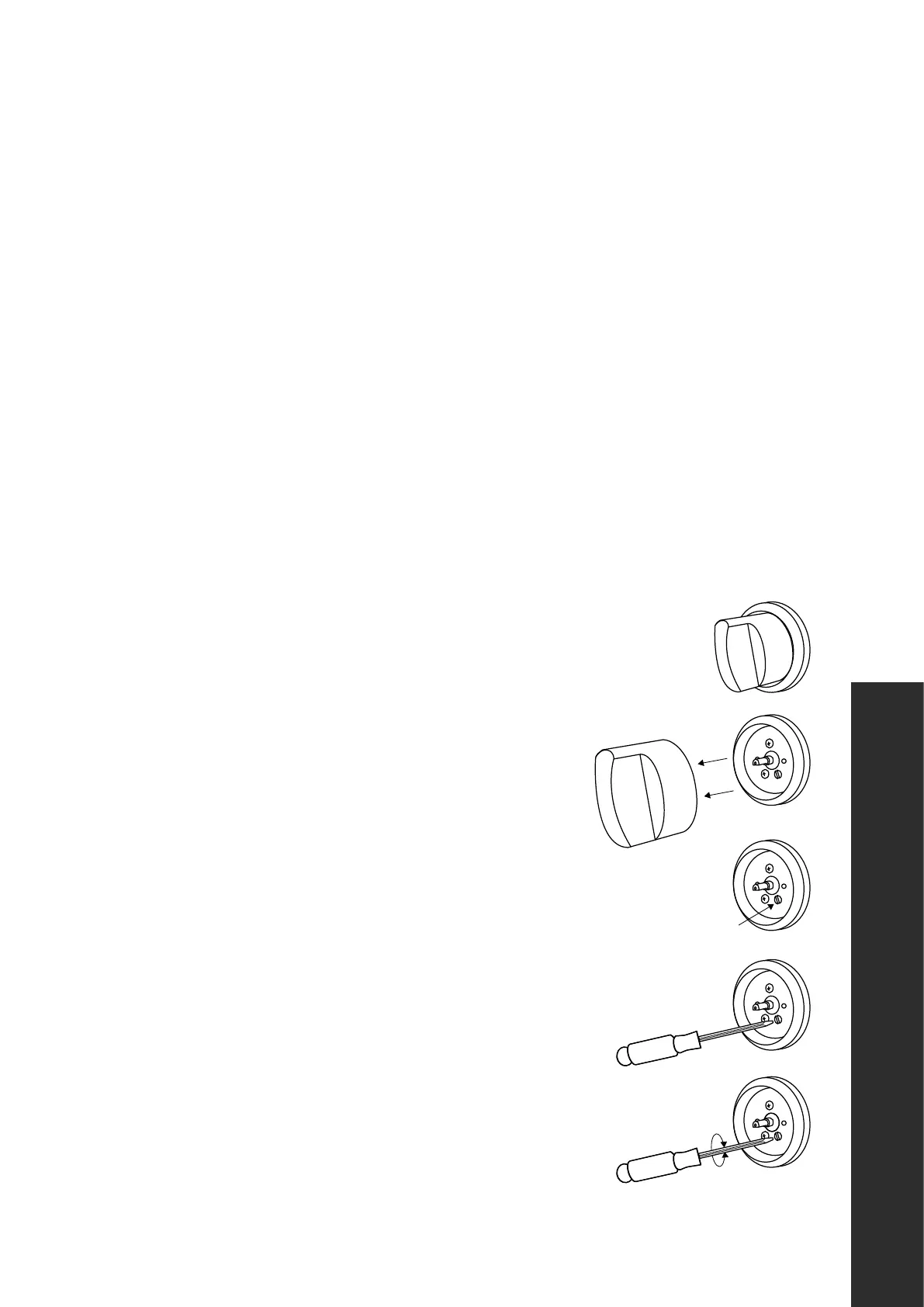

adjustment screw (see diagram — the screw is on the
right) and turn the screwdriver to the right or left until
the flame is adjusted to the desired minimum. Use a
flashlight if it’s difficult to see the adjustment screw.
• Make sure the flame does not go out when switching
quickly from the HI to the LO position. NOTE: The
high flame setting cannot be adjusted to be lower.
• NOTE: On the SGR36 series dual burner knob, there
are 2 screws to adjust if needed —1 for the inner ring
and 1 for the outer ring. These screws are located on
the left side of the adjustment valve.
2.0 x 50 mm
2.0 x 50 mm
