© Copyright 2013 Zoeller Co. All rights reserved.
CORD SEAL
OUTLET
GFCI
UNION BY OTHERS
TO ROOF VENT
BACKFLOW DEVICE
DISCHARGE PIPE
SHUT-OFF VALVE
BY OTHERS
SEAL WITH SOAPY WATER.
LUBRICATE INSIDE SURFACE OF
NOTE:
DISCHARGE PIPE
FLAT WASHERS
1/4 - 20 STD.
1/4 - 20 x 1" (25 mm)
S.S. SCREWS
(LUBRICATE OUTSIDE SURFACE
OF PIPE WITH SOAPY WATER.)
3" (75 mm) VENT PIPE SEAL
PIPE SEAL
2" (50 mm) DISCHARGE
CORD SEAL
NOTE:
INSTALL CORD SEAL BEFORE
INSTALLING PIPE SEALS.
OVERLAP DETAIL
TOP OF TANK
GASKET AREA

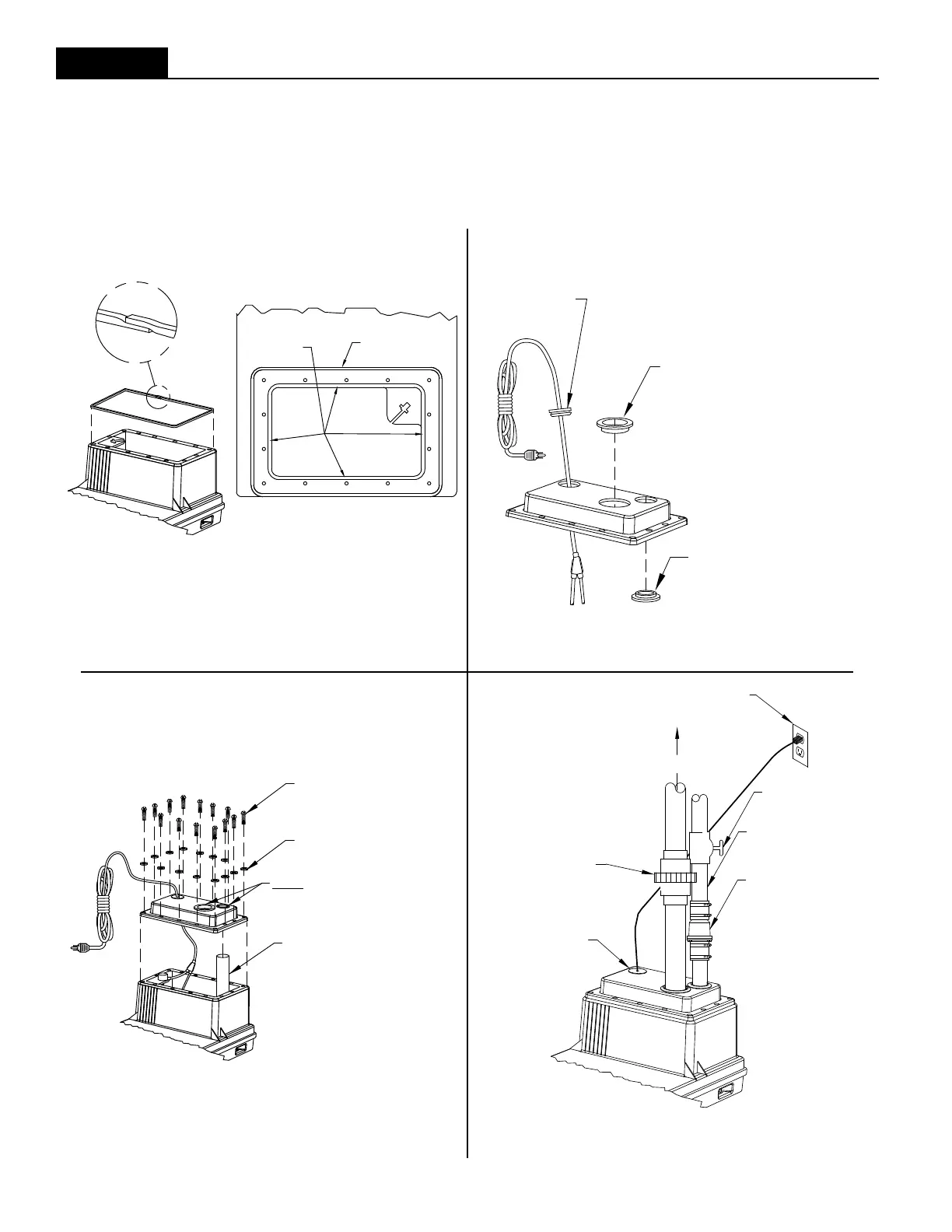

STEP 7 INSTALLATION OF LID AND ASSOCIATED PLUMBING
NOTE: STEPS 7.1 - 7.3 are for Models 100 & 102 only. For Model 101, skip to 7.4.
7.1) Apply foam gasket material to ange of pump chamber, leaving an overlap of gasket material as shown in Figure 7.1.
7.2) Install the Lid components as shown in Figure 7.2.
7.3) Install the Lid onto the pump chamber as shown in Figure 7.3.
7.4) Complete installation as shown in Figure 7.4.
Figure 7.1
Figure 7.2
Figure 7.3 Figure 7.4
SK1753
SK1754
SK1755
SK1756
