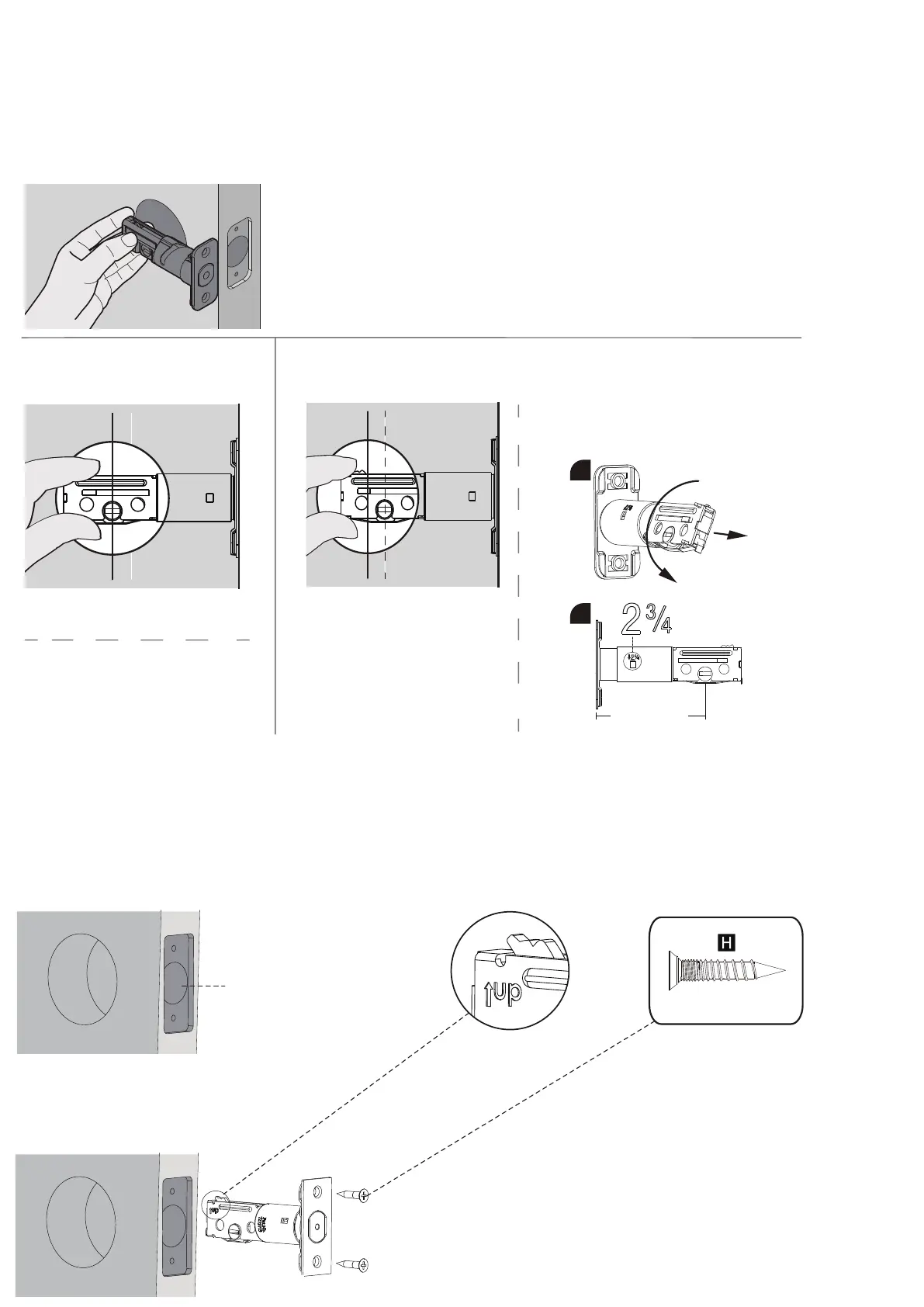

Hold the latch in front of the door
hole, with the latch face flush
against the door edge.
Is the slotted hole centered in the door hole?
Slotted hole is
NOT centered.
Slotted hole is centered.
Rotate and pull the latch
as shown to extend latch.
NO
YES
. No adjustment is required
Proceed to next step.
2
Determine backset and adjust the latch
Do not overtighten screws.
Actual Size
Chiseled
Install the latch
3
STEP
1
1
φ2-3/4"
(70mm)
2
2
To Next Page
