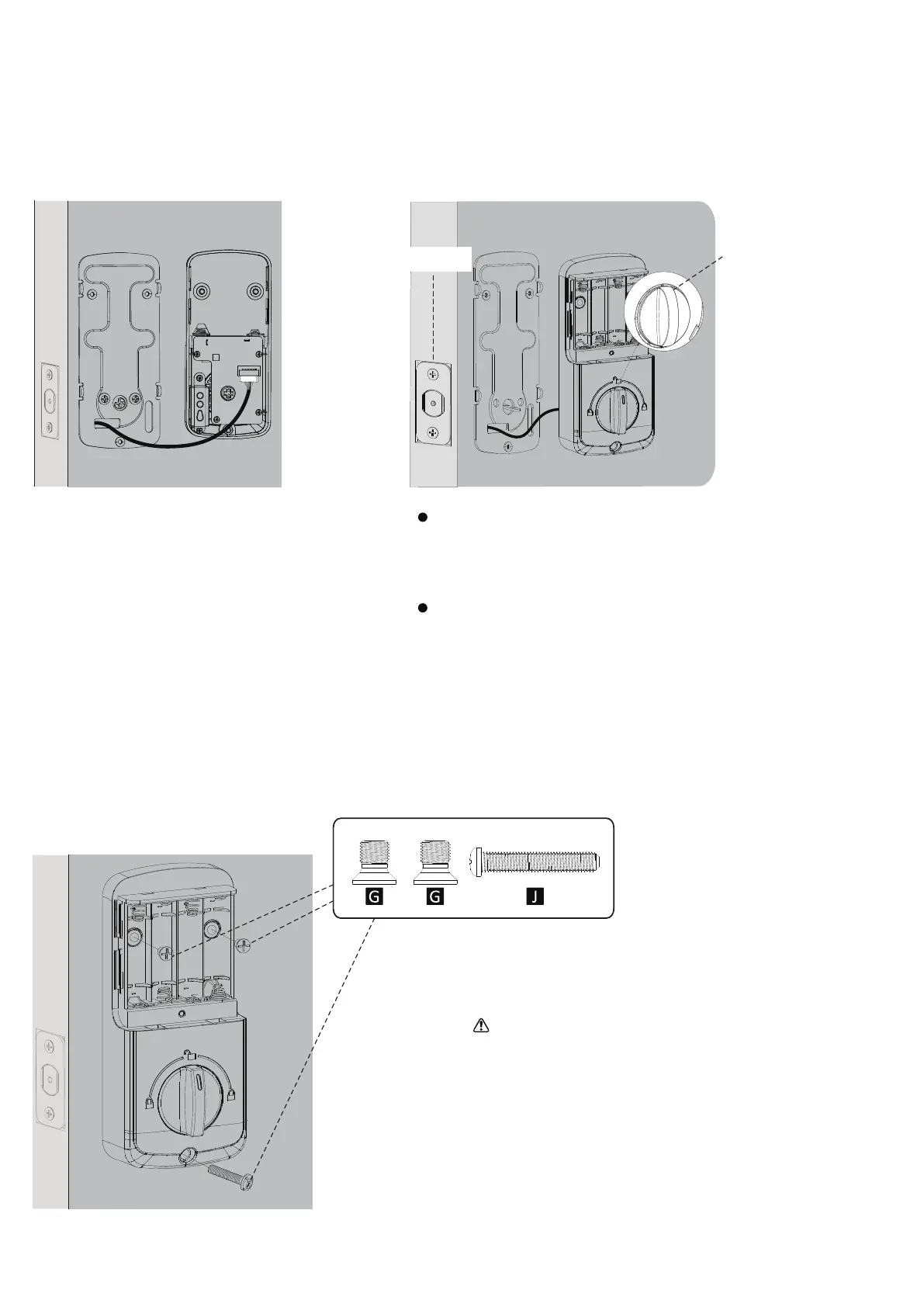

Install interior
assembly
A7
STEP
B7
STEP
Insert the cable connector to
the socket. Push the connector
in firmly until it is completely
seated.
Rotate the thumbturn and
keep it in a vertical position.
Make sure the latch is still
fully retracted (unlocked).
Vertical
unlocked
C
7
STEP
IMPORTANT: Test the thumbturn
for smooth rotation.
If thumbturn doesn’t rotate:
(a) Repeat step 7B, making sure the
thumbturn is vertical with bolt retracted;
(b) Rotate it with much more strength.
Attach Interior assembly to Mounting
Plate and tighten 3 screws.
Actual Size
To Next Page
