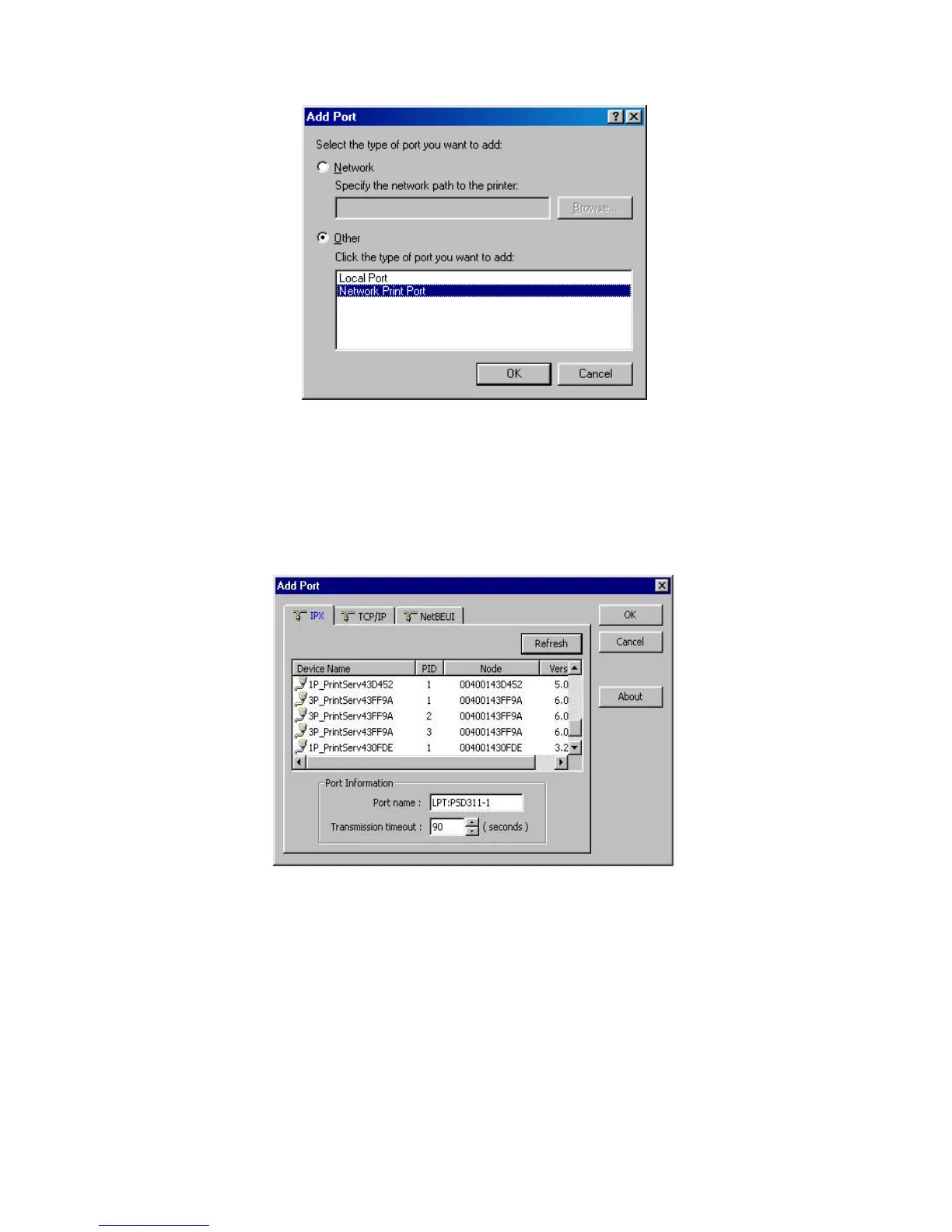

15. Select the Network Print Port and click OK.
16. The Add Port box will then appear, along with the print server’s Node ID (The last 6 digits
of the Node ID, located on the back of the print server unit). Select one printer server port
from the list, which is now connected to (one of) your printer(s), as shown in the following
picture.
By default, the computer will first search for the print server(s) on the network by using
the IPX/SPX protocol.
If the IPX/SPX protocol is installed, the print server will be displayed along with its Node
ID, as shown in Node column. (The last 6 digits of the Node ID, located on the back of the
print server unit). Select one of the print server’s ports from the list.
If the IPX/SPX protocol is not installed, no print server will be shown in the display box.
Then please select TCP/IP or NetBEUI alternatively.
46
