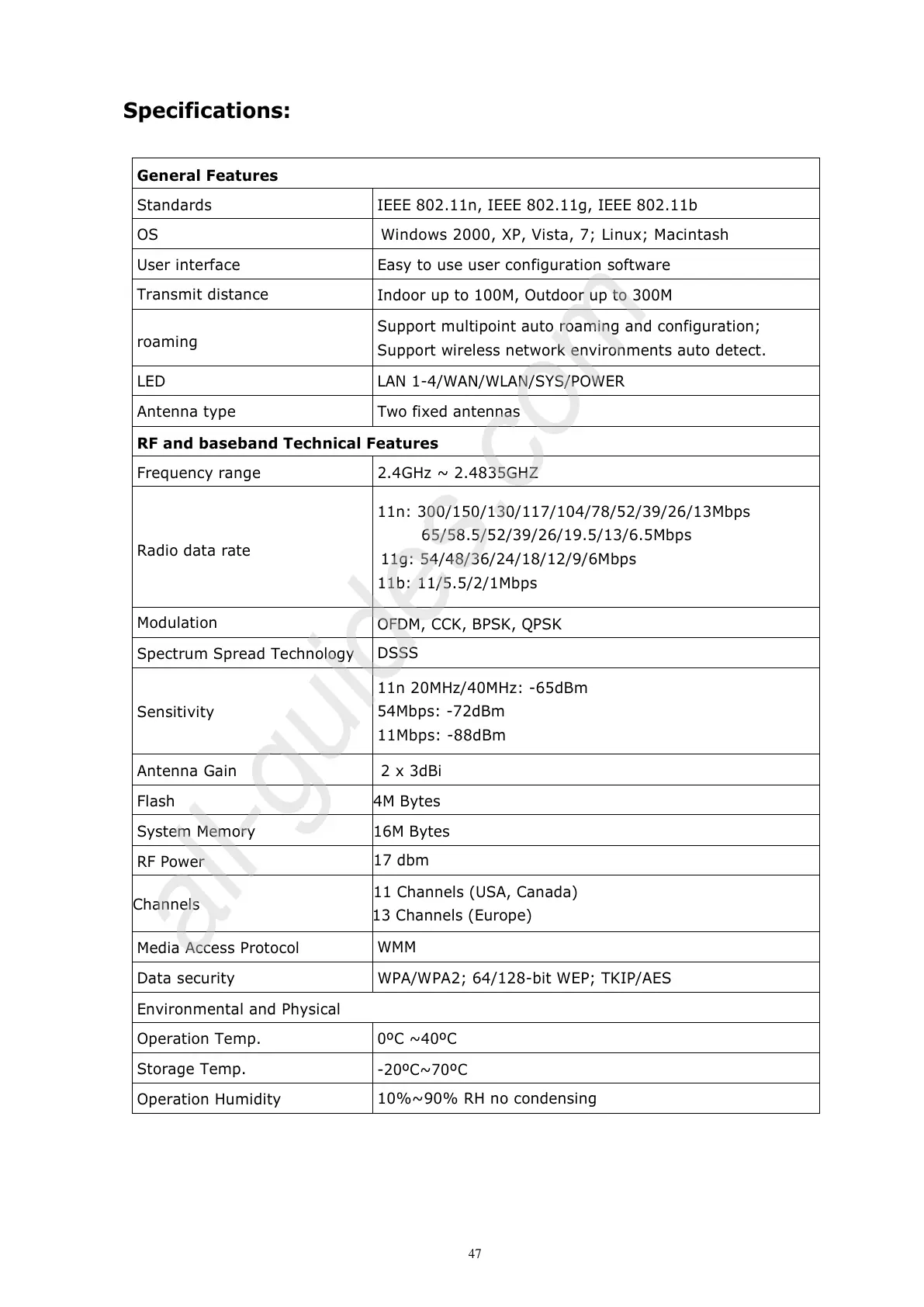

Specifications:
General
Features
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
OS Windows 2000, XP, Vista, 7; Linux; Macintash
User interface Easy to use user configuration software
Transmit distance
Indoor up to 100M, Outdoor up to 300M
roaming
Support multipoint auto roaming and configuration;
Support wireless network environments auto detect.
LED LAN 1-4/WAN/WLAN/SYS/POWER
Antenna type Two fixed antennas
RF and baseband Technical Features
Frequency range 2.4GHz ~ 2.4835GHZ
Radio data rate
11n: 300/150/130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6Mbps
11b: 11/5.5/2/1Mbps
Modulation
OFDM, CCK, BPSK, QPSK
Spectrum Spread Technology
DSSS
Sensitivity
11n 20MHz/40MHz: -65dBm
54Mbps: -72dBm
11Mbps: -88dBm
Antenna Gain 2 x 3dBi
Flash 4M Bytes
System Memory 16M Bytes
RF Power
17 dbm
Channels
11 Channels (USA, Canada)
