162 / 183

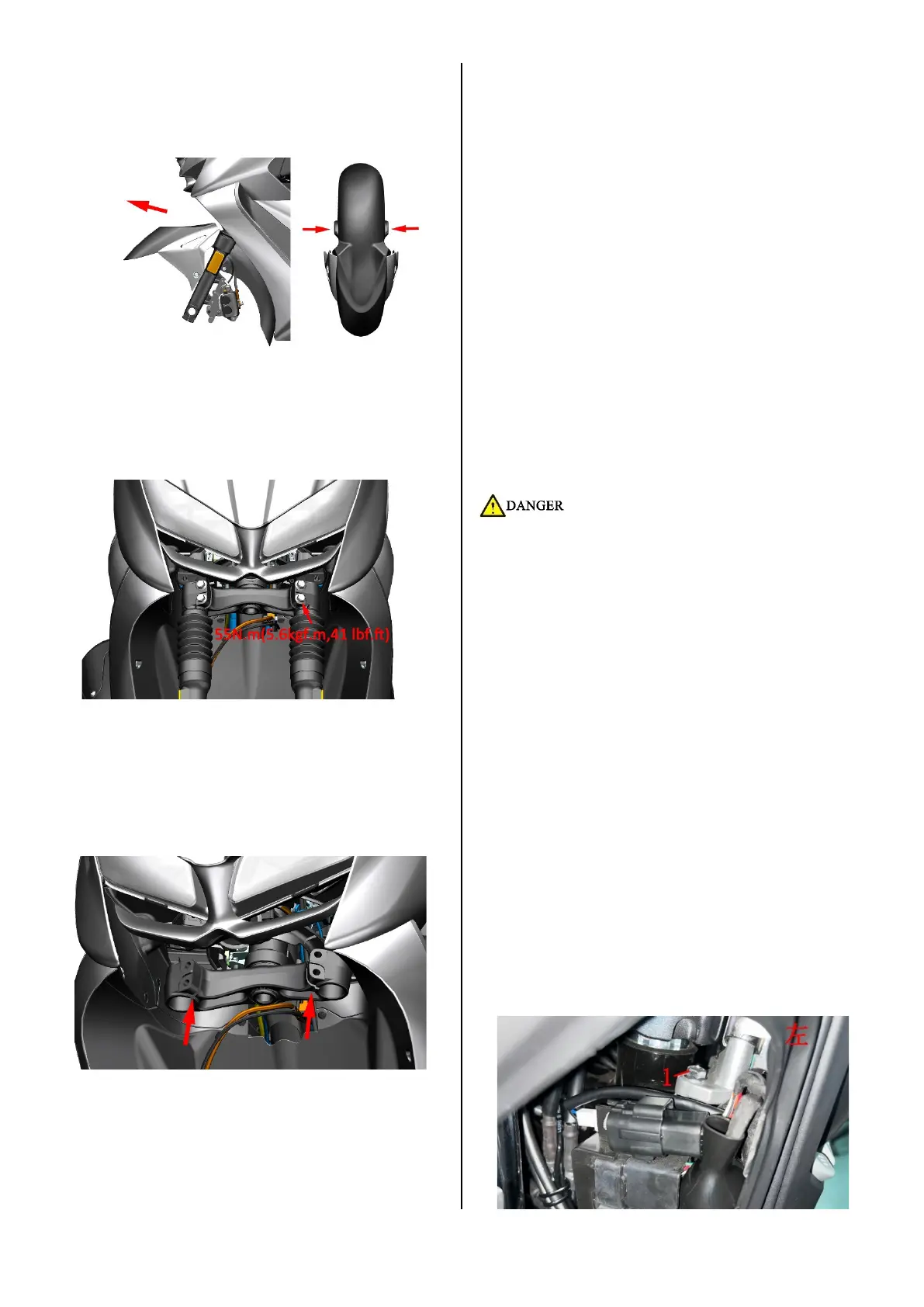

d.First press the two sides of the front mud board
according to the small arrow, press the protrusion on the
front mud board arrow inward, and then move the front mud
board up to a suitable position and then pull it out in the
direction of the big arrow.
2. Remove the left and right front shock
absorbers
a. Use a 14# sleeve to remove the 4 M10×1.5×43 bolts, pry
open the gap on the lower link plate with a straight batch,
and remove the front left shock absorber and the front right
shock absorber.
3. Reinstall the shock absorber, front
fender, front wheel and other components
a. Pry a gap on the lower connecting plate with a flat-
headed batch, insert the corresponding shock absorber,
install the shock-absorbing in place, take the next batch,
screw in two M10×1.5×43 bolts, use a 14# sleeve Tighten two
M10×1.5×43 bolts, torque: 55N.m (5.6 kgf.m, 41 lbf.ft).
b. Use the same method to install another shock absorber.
c. Pick up the front wheel and install the bushing, align the
mounting holes between the two shock absorbers, penetrate
the front wheel axle, and tighten the front wheel axle with a
17# inner hexagon. Torque: 50N.m (5.1 kgf.m, 37 lbf.ft). If
one of the shock absorbers is not installed in place, the front
axle will not be tightened or can not be inserted into the right
shock absorber. You need to remove the shock absorber that
is not in place and install it in place.
d. After installing the front wheel, use the 6# inner
hexagon to tighten the two M8×35 bolts at the bottom of the
left front shock absorber, torque: 20N.m (2.0 kgf.m, 15 lbf.ft).
e. First use a single batch to separate the two brake pads
inside the brake caliper. If the resistance is too large and the
two brake pads cannot be separated, please refer to the
method of "Adding Brake Fluid" to remove the upper cover of
the disc brake oil cup and then separate it. 2 brake pads,
align the gap between the 2 brake pads in the disc brake
caliper with the brake disc on the front wheel and install it.
Then use a 14# sleeve to tighten two M8×37 bolts (2),
torque: 24N.m (2.5 kgf.m, 18 lbf.ft).
f. Press the position held when the front mud plate is
removed, pass through the appropriate position in the
middle of the shock absorber, and install it to the
corresponding position, use the 4# inner hexagon to reinstall
the 2 M6×12 bolts (3), do not miss the installation of the
lining Set⑷, and cushion rubber⑸. Then use the 5# inner
hexagon to reinstall the two M6×30 bolts⑴, Caution: the
left M6×30 bolt⑴ needs to have a spring washer⑹.
●The vehicle must be parked on a level and stable ground or
on a lifting platform.
●After the front wheel is installed, please press the brake
handle repeatedly until the brake restores the braking effect.
Replace the lower link board
Caution:
●After the front wheel is disassembled, please do not press
the brake handle.
●When the disc brake oil cup is removed, it must be vertically
upward to prevent air from entering the brake pipeline.
●After disassembly, make sure that all parts are installed
correctly.
●Appropriate amount of grease should be applied when
installing the bearing.
1. Disassemble parts ahead of time
Refer to "Replace the front wheel", "Replace the front
shock absorber", "Replace the steering handle", and remove
the front wheel, front shock absorber, and direction handle.
2. Remove the faucet lock
a. Insert the 10 # box wrench from the notch at the
storage box, and remove two M6× 20 bolts (1) screws on the
main lock support, take down the main lock and main lock
support, do not need to remove the main lock and main lock,
and put them in a proper position nearby.
