Zontes ZT184MN User Manual

3-CYLINDER BLOCK ASSEMBLY
18
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
4050558-004000
ZT184MP Cylinder body assembly
1
2
1051658-007000
ZT184MP Cylinder body gasket (foam rubber)
1
3
1251401-001000
φ8×14 hollow locating pin
1
4
1051161-003000
GB119.2 φ9×14 cylindrical pin
1
PROCEDURE:
Take the cylinder assembly out vertically, remove the gasket ⑵, positioning pins
⑶,cylindrical pin⑷, and clean the remaining sealant on the joint surface.
Notice:
●The gasket ⑵ are for one-time use and must be replaced after disassembly, otherwise
there will be oil leakage and water leakage.
●Check the inner wall of the cylinder. If there are obvious scratches or damages on the
inner wall of the cylinder, it must be replaced.
●Before installing the cylinder,make sure that the box and cylinder assembly planes are
smooth and flat and apply a proper amount of sealant on the box assembly plane.After
installing the new gasket, apply a proper amount of sealant on the upper surface of the new
gasket.
●Prevent foreign objects from falling into the engine during disassembly and installation.
●Before installing the cylinder, apply a proper amount of engine oil to the inner wall of the
cylinder as lubrication.

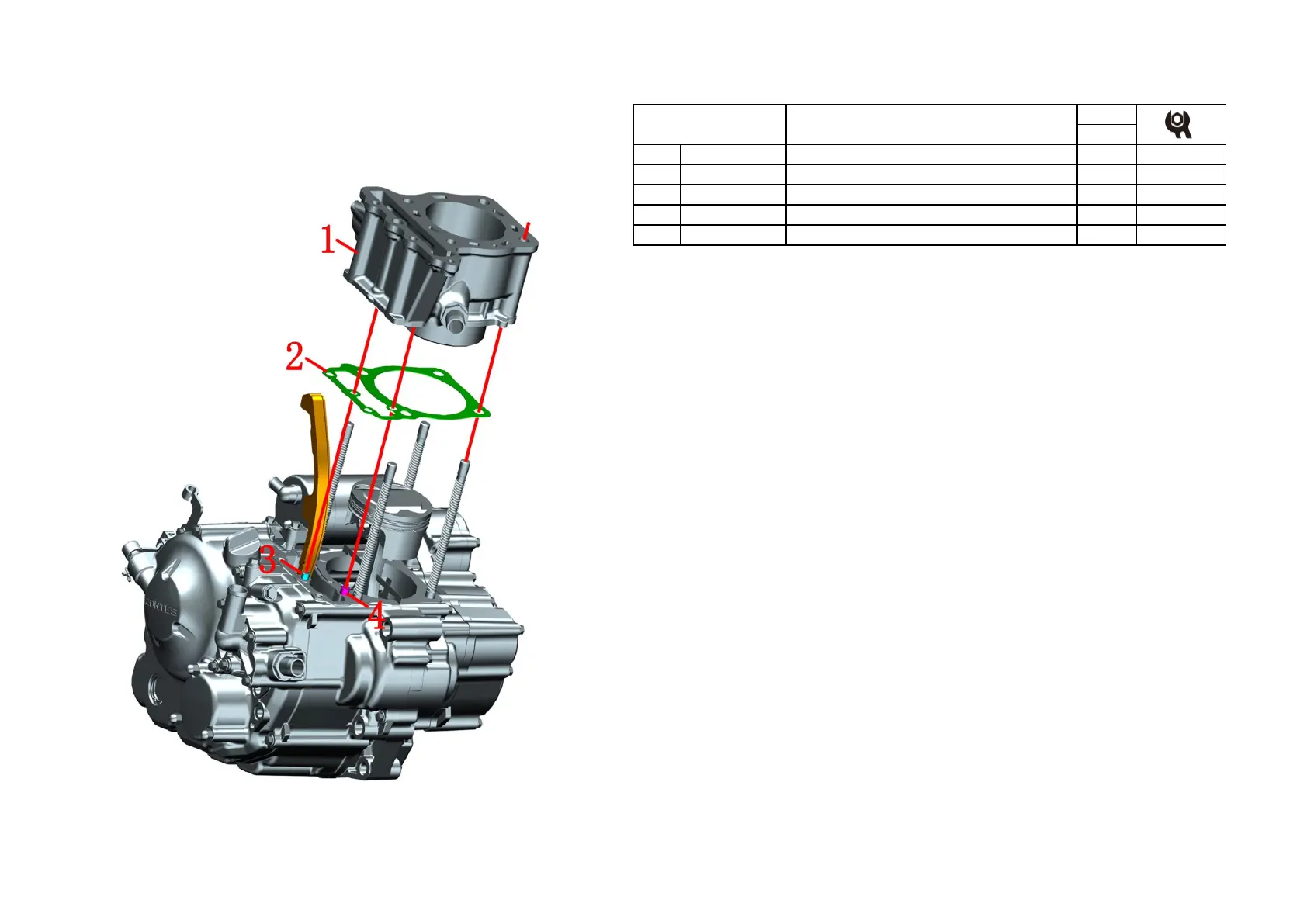

Fig.2 CYLINDER BLOCK
ASSEMBLY
Cylinder block assembly
