4-RIGHT CRANKCASE COVER ASSEMBL
22
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
1251112-004093
M6×60 Hexagon flange bolts (color Zinc) 3
2
1251513-001019
6.3×12×1.6 copper gasket 1
3
1251112-003093
M6×45 Hex flange surface 9.8 bolt (color Zinc
6
4
1251112-006093
M6×90 Hexagon flange bolts (color Zinc) 1
5
1251112-005093
M6×75 Hexagon flange bolts (color Zinc) 1
6
1051354-008000
ZT180MN clutch cable bracket 1
8
1251401-001000
φ8×14 hollow locating pin 2
9
1050854-007000
φ6×6 hollow positioning pin 1
10
1051354-012000
9.2×18×1 Thrust Washer 1

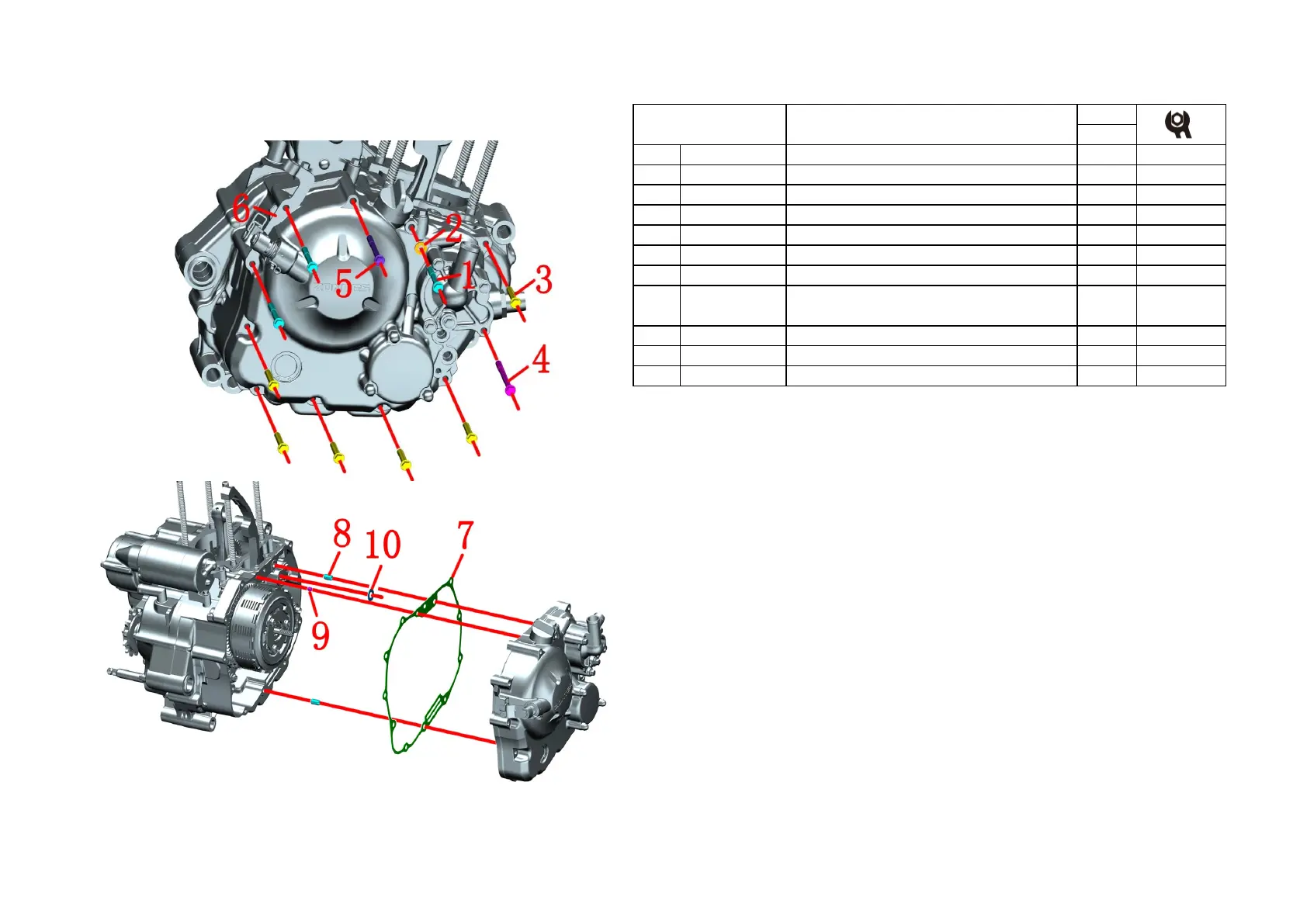

Fig.1 RIGHT
CRANKCASE COVER
Remove Right Crankcase Cover Assembly 1
1051658-008000
ZT184MP Gasket for right crankcase cover
(foaming rubber)
1
PROCEDURE:
●Remove the right crankcase cover
F
ix the engine, use an 8# sleeve to remove 3 bolts (1) with a copper washer (2), 6 bolts (3),
1 bolt (4) and 1 bolt (5); take out the Clutch cable bracket(6).
S
eparate the right crankcase cover sub-assembly from the engine case, and remove the
gasket ⑺, 2 locating pins ⑻, and 1 locating pin ⑼,Water pump shaft washer 9.2x18x1⑽.
Notice:
●The gasket ⑺ is for one-time use and must be replaced after disassembly.
●Before installing the box body, make sure that the box body assembly plane is smooth
and flat and apply an appropriate amount of sealant on the box body assembly plane. After
installing the new gasket⑺, it is necessary to apply sealant again on the upper surface of
the Install new gasket ⑺ .
●When installing the right cover, all bolts should be evenly tightened at the corners to
ensure tightness.
