Zontes ZT184MN User Manual

4-RIGHT CRANKCASE COVER ASSEMBL
29
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
2
1050754-022000
125×1.5-26Z clutch driven plate 1
3
1050753-012000
125X1.5 clutch follower plate
5
PROCEDURE:
●Friction plate assembly
Take out 1 piece of friction plate with large inner hole → 1 piece of follower plate with
large inner hole → 1 piece of friction plate with large inner hole → follower plate with small
inner hole → friction plate with small inner hole → follower of small inner hole Disc →
friction disc with small inner hole → follower disc with small inner hole → friction disc with
large inner hole. There are 7 friction plates and 6 driven plates, including 3 friction plates
with large inner holes and 1 driven plate with large inner holes.
Notice:
●The direction of the outermost friction plate is inconsistent with the direction of other
friction plates and is stuck in the groove of the driving disc.
●Please check the friction lining during installation. If the friction lining becomes more
black, you need to replace a new set of friction lining.
●When installing, please check whether the follower is assembled evenly. If it is not, you
need to replace it with a new one.

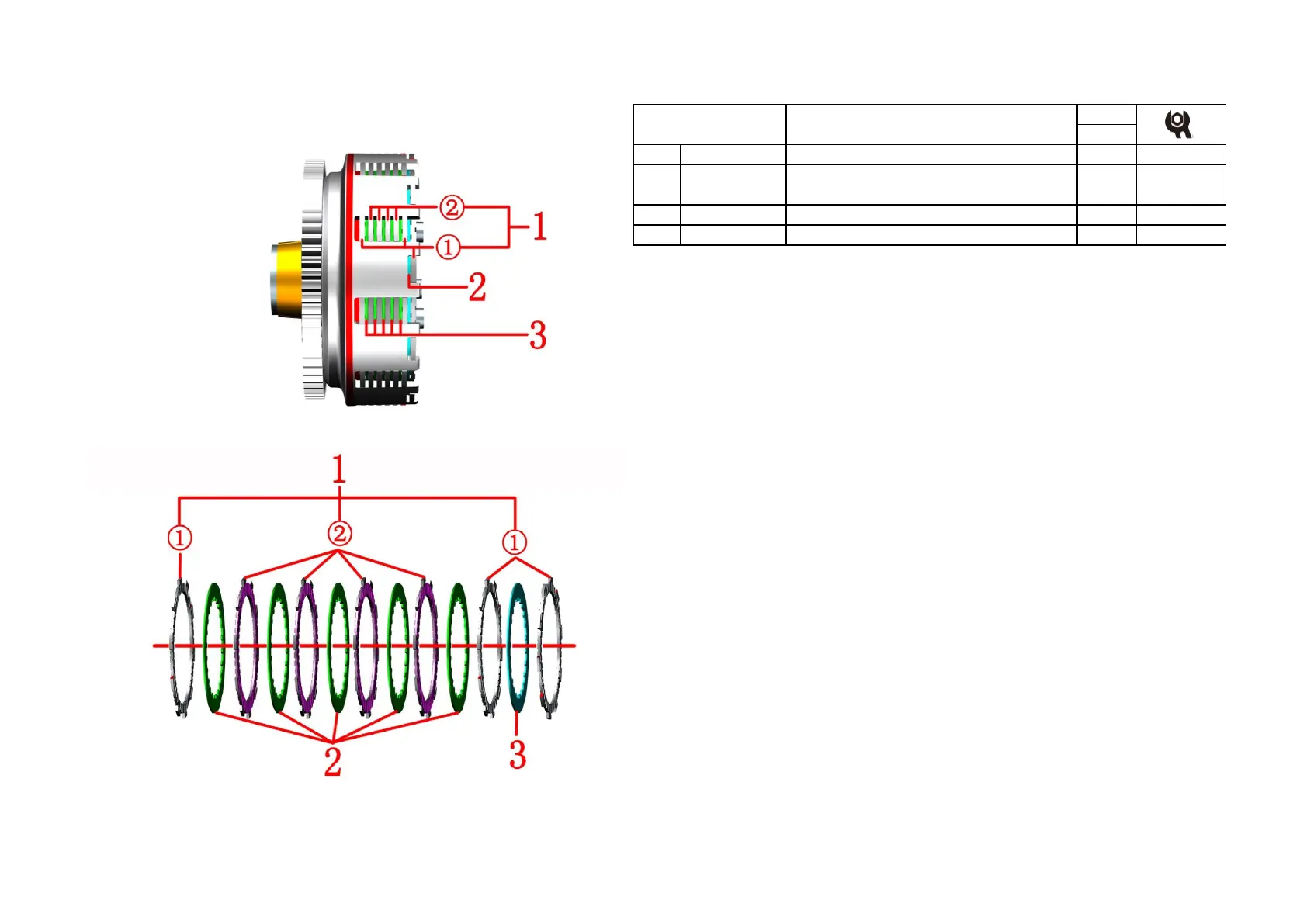

Fig.8 RIGHT
CRANKCASE COVER
Clutch assembly-1
1
1050754-023000
ZT180MN sliding clutch friction plate sub-
assembly
1 7pieces
