Making connections
Installing batteries
1.
Open the battery compartment cover on the bottom of the product and insert 4
AA batteries.
By default, ECO mode setting is ON, so the power will automatically turn off
if no use occurs for 10 hours.
ECO mode can also be set to “OFF” on the SETTING screen.
NOTE
1.
Minimize the volume of
the output device.
2.
Connect an instrument
to the INPUT jack.
Use the MAA-1 to con-
nect a mic.
3.
Connect a PA system or
headphones to the OUT-
PUT jack.
4.
Raise the output device
volume.
If distortion occurs, lower
the level of the connected
instrument.
NOTE
•
If a dedicated AC adapter (ZOOM AD-16) is connected, it can run on AC power.
• Power for operation can also be supplied through the USB port.
• By connecting an audio device, for example to the AUX IN jack, you can
play along with another sound source.
HINT
Using the Mac/Windows Guitar Lab application, you can manage patch
memories and edit and add effects.

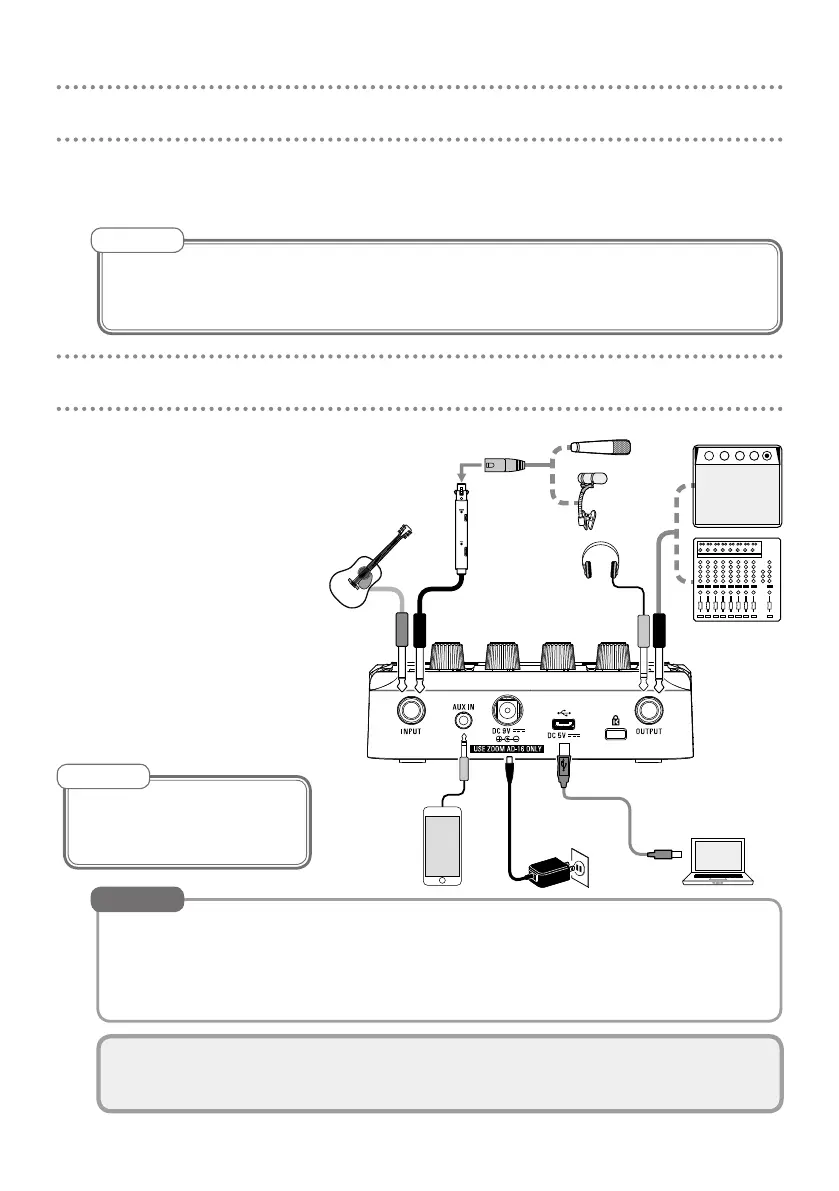

AC adapter
MAA-1
Computer
(Mac/Windows)
1, 4
2
3
Audio device, etc.
Acoustic guitar with
pickup, electric violin,
etc.
