Zoom B1 FOUR User Manual

BASS tuner

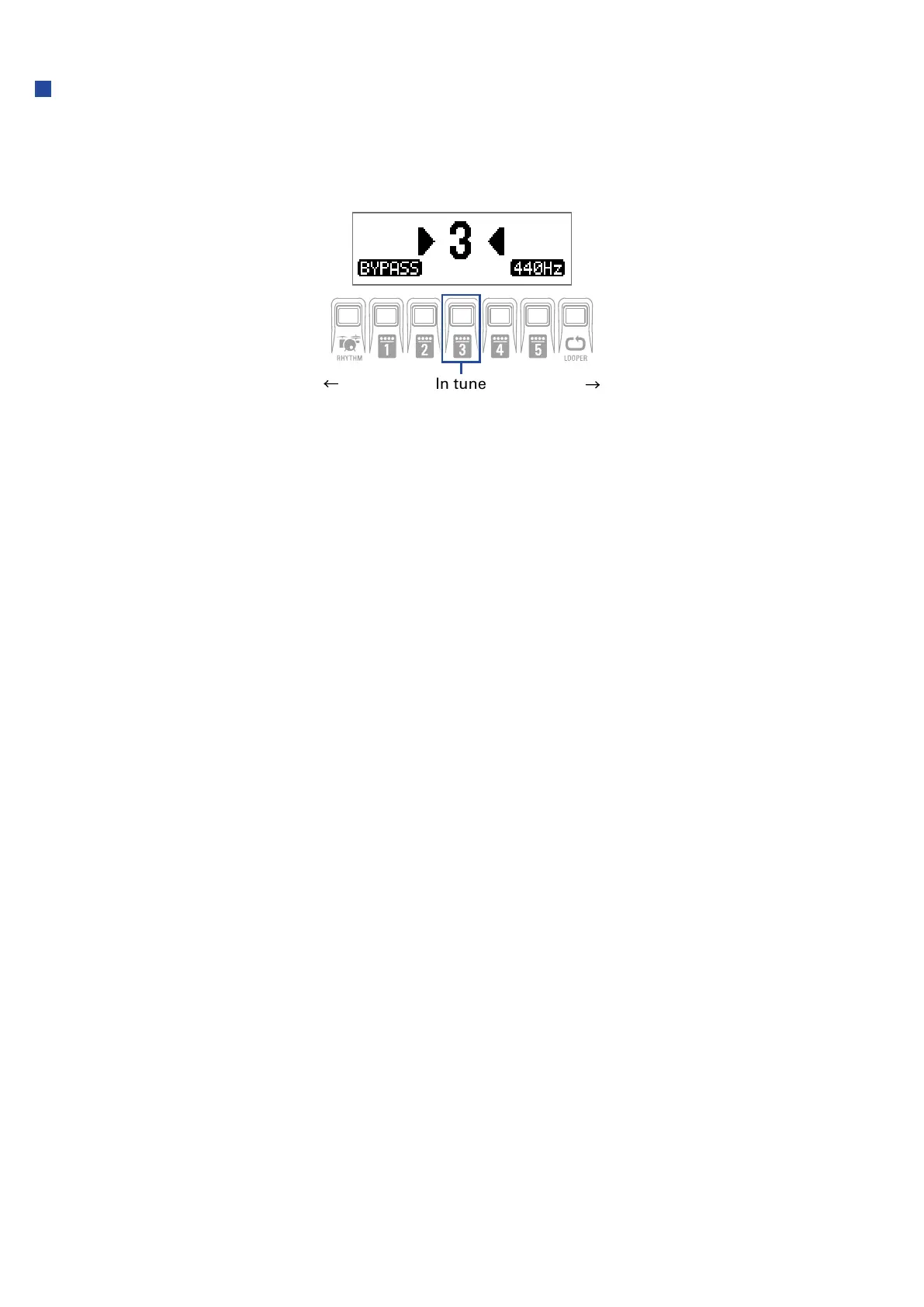

The nearest string number and pitch detuning will be shown on the display and by the LEDs.
When the pitch is accurate, the LED at the center of the meter will light green and the LEDs to the left
and right will light red.
Flat In tune Sharp
40

Zoom B1 FOUR Specifications

General

Simultaneous Effects	5
Sampling Frequency	44.1 kHz
Tuner	Yes
A/D Conversion	24-bit
D/A Conversion	24-bit
Frequency Response	20 Hz - 20 kHz
Display	LCD
Input	1/4" phone jack
Output	1/4" phone jack
Expression Pedal	Yes
Inputs	1 x 1/4" (Instrument)
Outputs	1 x 1/4" (Headphones), 1 x 1/4" (Line Out)
Patches	50
