Controls and Functions
8
ZOOM FIRE-30

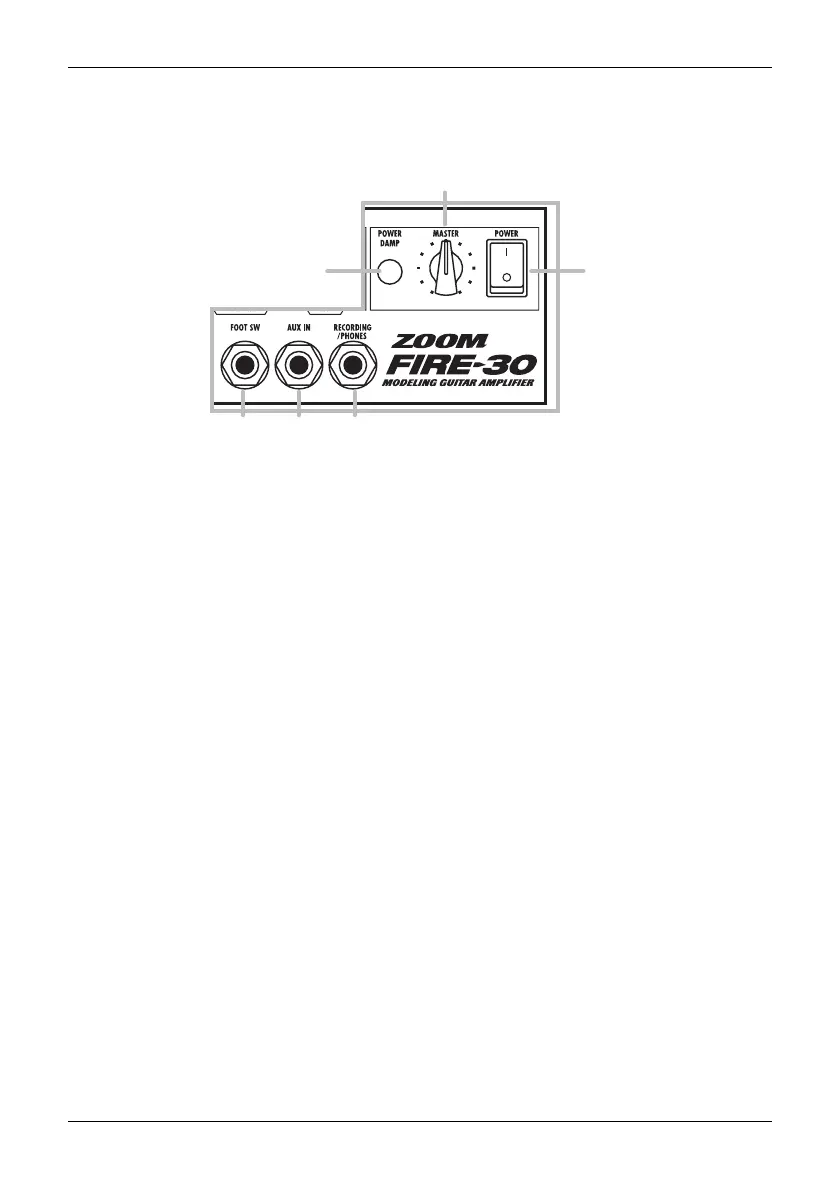

◆ Output/control section
This section lets you adjust the overall amp volume and connect external devices including a foot switch.
(1) [POWER DAMP] switch
This switch allows you to lower the volume without loss of sound character by power amp.
(2) [MASTER] knob
Adjusts the volume.
(3) [POWER] switch
Controls the power on/off status.
(4) FOOT SW jack
A separately available foot switch (ZOOM FS-01) can be connected here, allowing you to toggle
between manual mode and program mode with your foot.
(5) [AUX IN] jack
This is a stereo input that accepts the signal from a CD player or MD player.
(6) [RECORDING/PHONES] jack
This is a stereo output that can be used to connect a recording device or a pair of headphones.
(1) (3)
(2)
(4) (5) (6)
