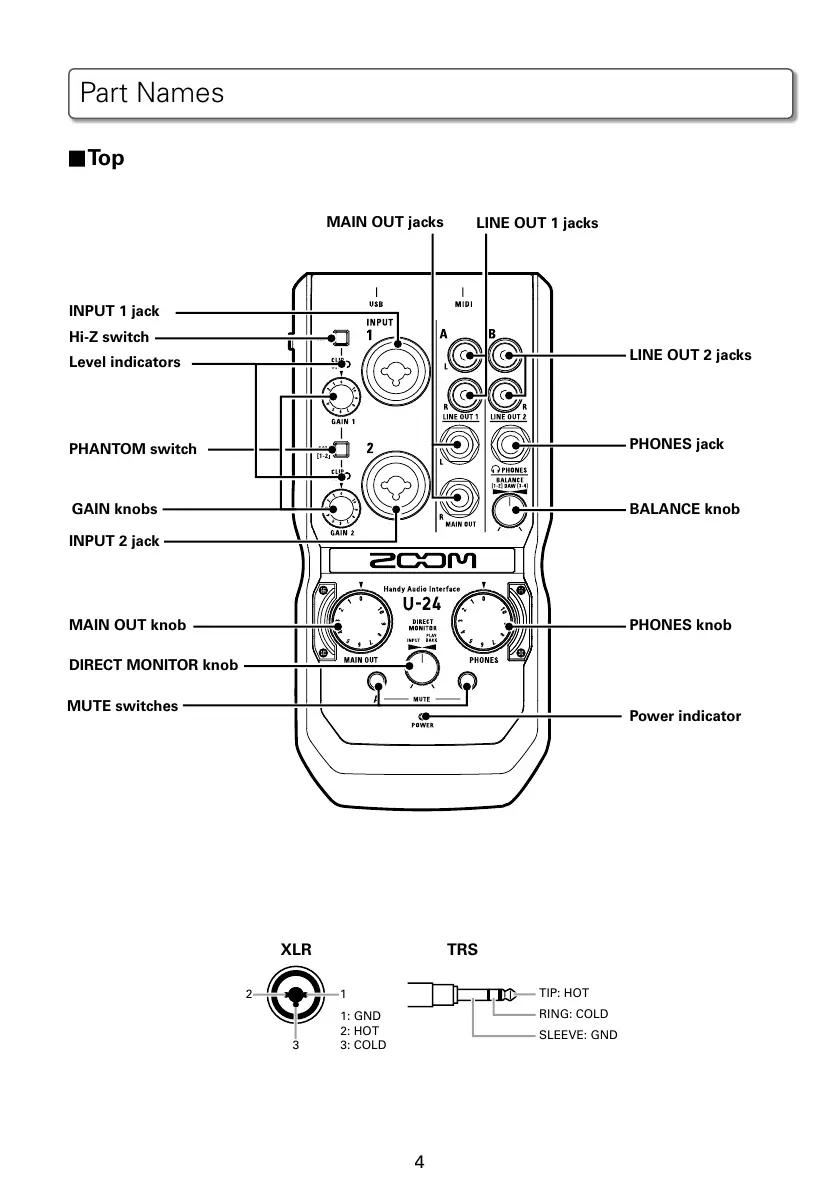

Zoom U-24 - ZOOM U-24 Part Identification; Top Panel Controls and Connectors

4
INPUT 2 jack
Level indicators
GAIN knobs
Power indicator
PHONES jack
BALANCE knob
PHONES knob
PHANTOM switch
MAIN OUT knob
MAIN OUT jacks
LINE OUT 1 jacks
LINE OUT 2 jacks
DIRECT MONITOR knob
MUTE switches
Hi-Z switch
INPUT 1 jack
Top
XLR TRS
1: GND
2: HOT
3: COLD
TIP: HOT
RING: COLD
SLEEVE: GND
12
3
Part Names
