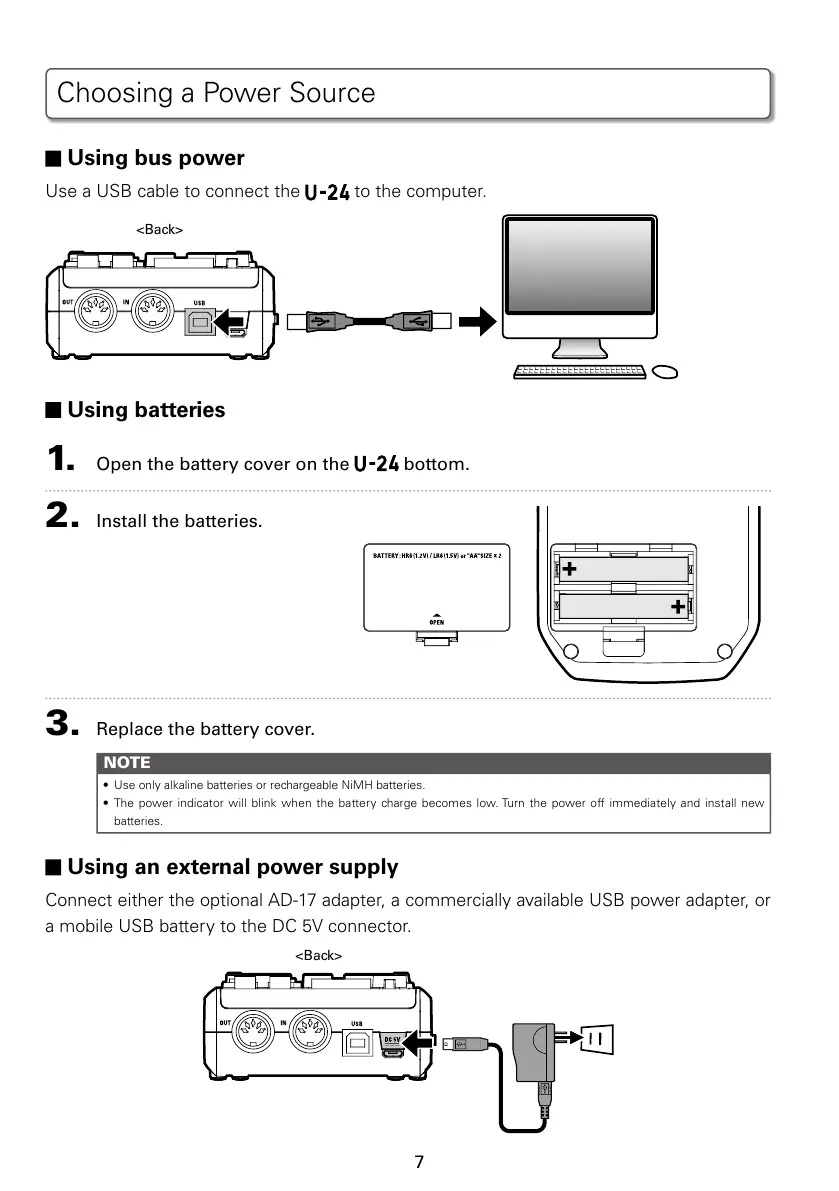

Zoom U-24 - Choosing a Power Source for U-24; Using USB Bus Power; Using Batteries for Power; Using an External Power Supply

7
Using bus power
Use a USB cable to connect the
to the computer.
<Back>
Using batteries
1. Open the battery cover on the bottom.
2. Install the batteries.
3. Replace the battery cover.
NOTE
t 6TFPOMZBMLBMJOFCBUUFSJFTPSSFDIBSHFBCMF/J.)CBUUFSJFT
t 5IF QPXFSJOEJDBUPSXJMMCMJOLXIFOUIFCBUUFSZDIBSHFCFDPNFTMPX5VS O UIFQPXFSPGGJNNFEJBUFMZ BOE JOTUBMMOFX
batteries.
Using an external power supply
Connect either the optional AD-17 adapter, a commercially available USB power adapter, or
a mobile USB battery to the DC 5V connector.
<Back>
Choosing a Power Source
