zortrax M200 Instructions

Unloading the Material

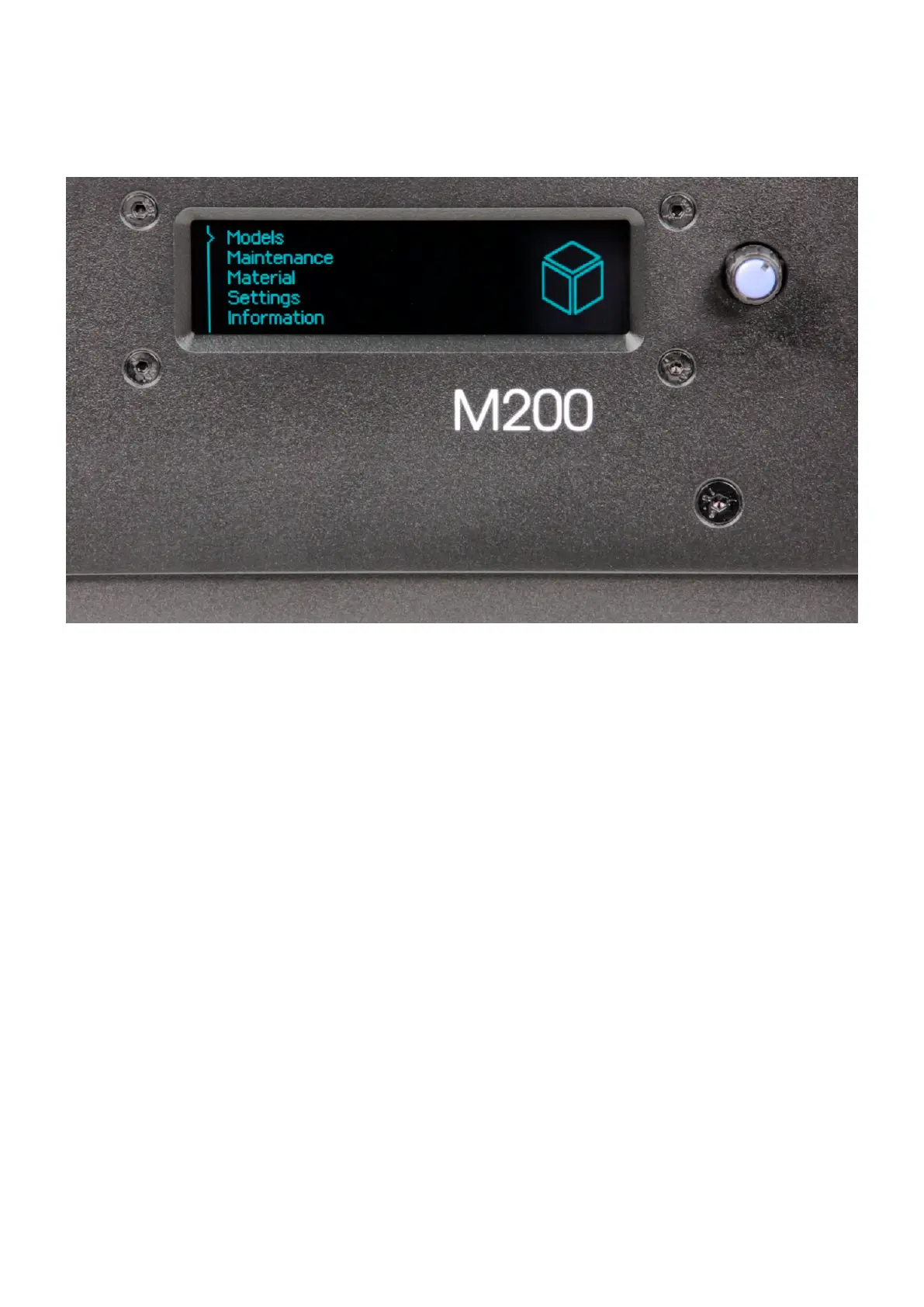

From the menu choose “Material” and then “Unload the material” option. The extruder
should start to heat up automatically. Once the extruder is hot, the motor will start to
unload the material.

zortrax M200 Specifications

General

Build Volume	200 x 200 x 180 mm
Layer Resolution	90-400 microns
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Connectivity	SD card
Software	Z-Suite
Operating System	Windows, macOS
Frame	Aluminum
Printing Speed	up to 100 mm/s
Heated Bed	Yes
Bed Temperature	up to 110°C
Nozzle Temperature	up to 380°C
Power Consumption	300 W
Technology	FDM
Supported Materials	Z-ABS, Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD
Power Supply	100-240 V, 50/60 Hz
Dimensions	345 x 360 x 430 mm
Weight	13 kg
