1-10 • 02418V10 • 11.08.2016/DC
Assembly

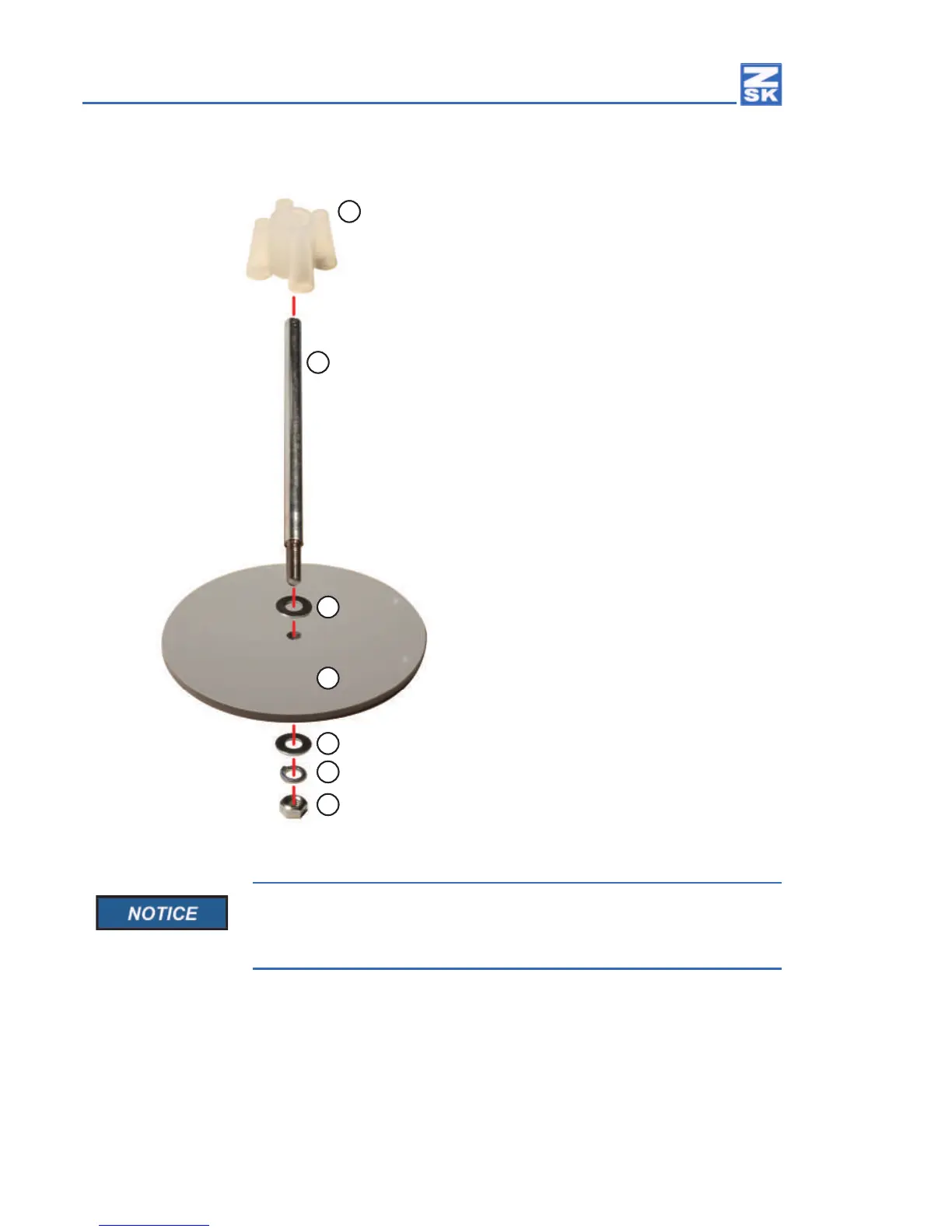

1.6.2 Assembly yarn cone bracket
• Slide in order the washer (3), the
plastic sheave (4), the washer (5), the
lock washer (6) over the screw thread
of the cone spindle
• Tighten the nut (7) on the screw
thread.
• Tighten the mounted cone spindle
in the corresponding tap hole in the
winder cabinet
• Slide the yarn cone lock (1) from
above over the cone spindle (2) till on
the plastic sheave (3).
The yarn cone lock (1) will be needed for yarn cones with large
cone core only. Small cones can be fi xed on the cone spindle (2)
without the cone lock.
1
2
3
4
5
6
7
1
2
3
4
5
6
7
