Adjustments
1.10.4 Adjust cut-off time
The cut-off time of the bobbin fi lling is adjustable (e.g. if small bobbins are not
fi lled properly or after backfi tting the winder towards bobbins with a greater
diameter).
• Pull via JOGGING automatically a new bobbin into the bobbin support, for
which applies the adjustment.
• Start winding process.
• Adjust the new cut-off time through counter clockwise respectively clockwise
rotation of the regulating screw. In the process the spring will be lowered
or uplifted and the cut-off time will be modifi ed.
Regulating screw clockwise rotation cut-off time earlier lower charging level
Regulating screw counter clockwise rotation cut-off time later higher charging level
The cut-off time has been chosen correctly, when the bobbin is
reeled up to its brim. Avoid extremely fi lled or brimmed over
bobbins.

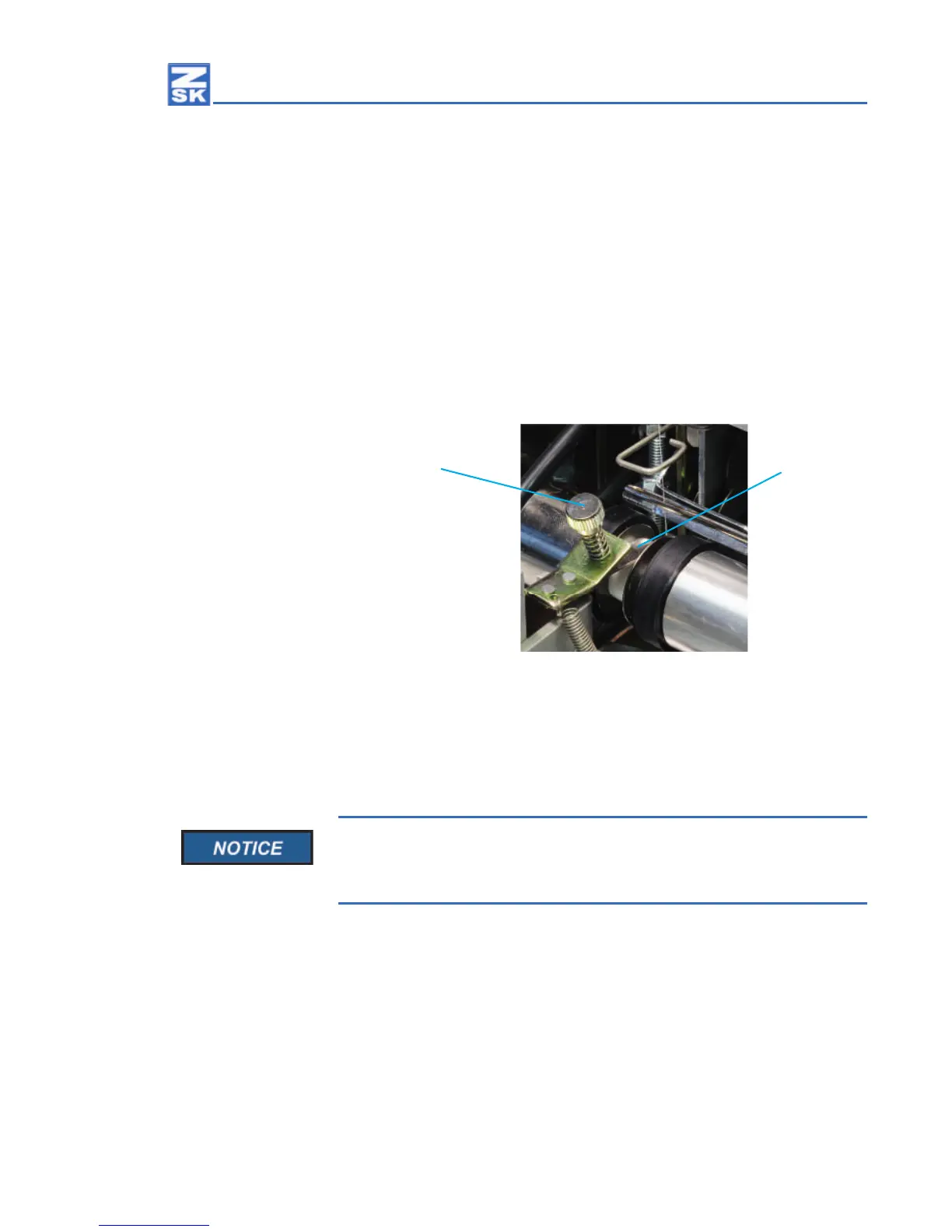

Regulating screw
Spring
