Assembly
1.6 Assembly

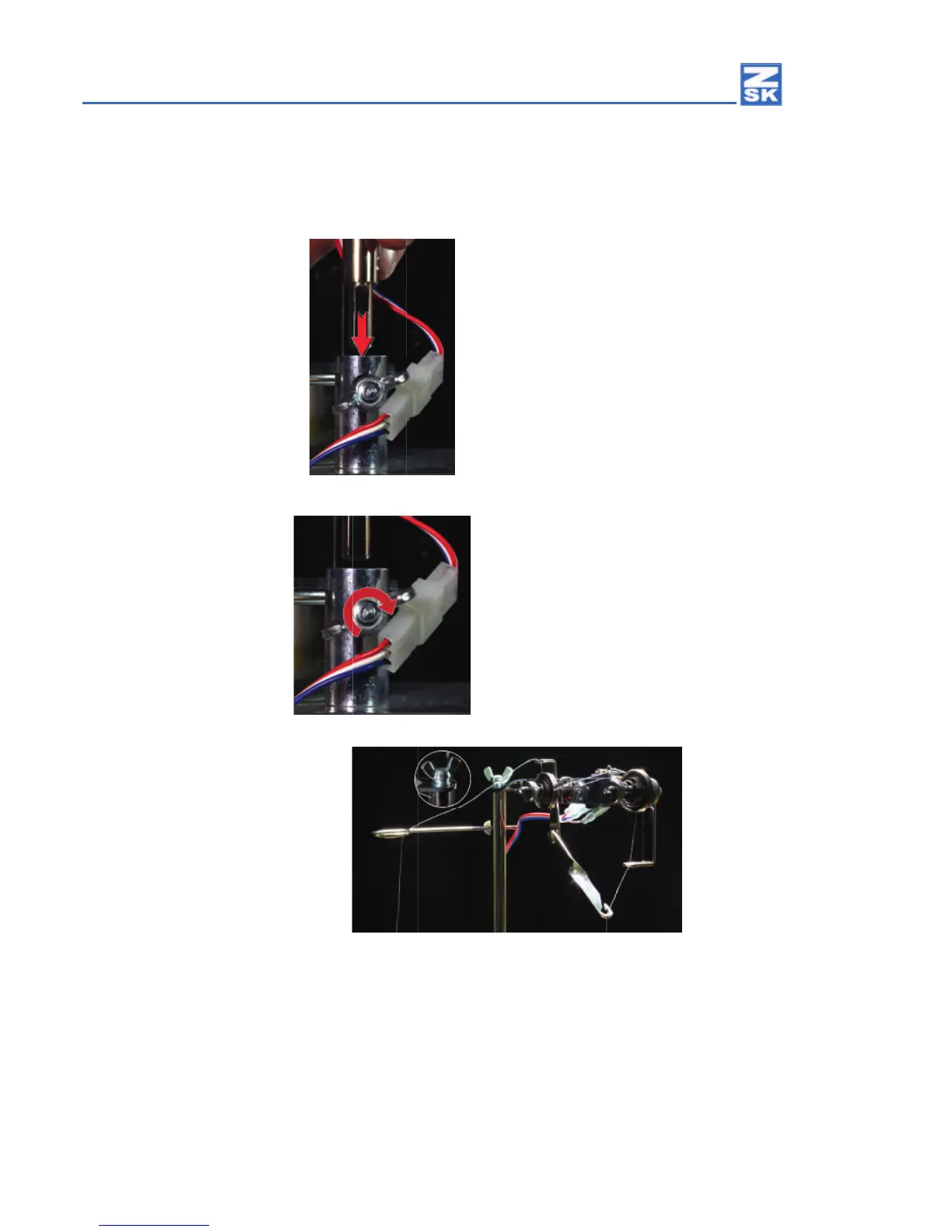

1.6.1 Assembly yarn guide
• Insert the guide bar of the yarn guide
with the fl at side towards to the rear
into the mount on the winder.
• Tighten the wing screw at the mount.
• Release the upper wing screw at the yarn guide.
• Adjust the yarn guide straight facing to the winder front. The yarn has to fi t
vertically into the cut of the cover
• Tighten the upper wing screw.
