Name: ZURN AQUASPEC Z86500-XL-P Series
Brand: ZURN
Rating: 4 (1 reviews)

To Next Page

To Previous Page

PAGE 3 OF 4

ZURN INDUSTRIES, LLC 5900 Elwin Buchanan Drive, Sanford, NC U.S.A. 27330, Ph. 1-800-997-3876, Fax 919-775-3541

In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292

Rev. C Date: 6/25/2018 C.N. No. SAN008311 Prod. | Dwg. No. CF1193

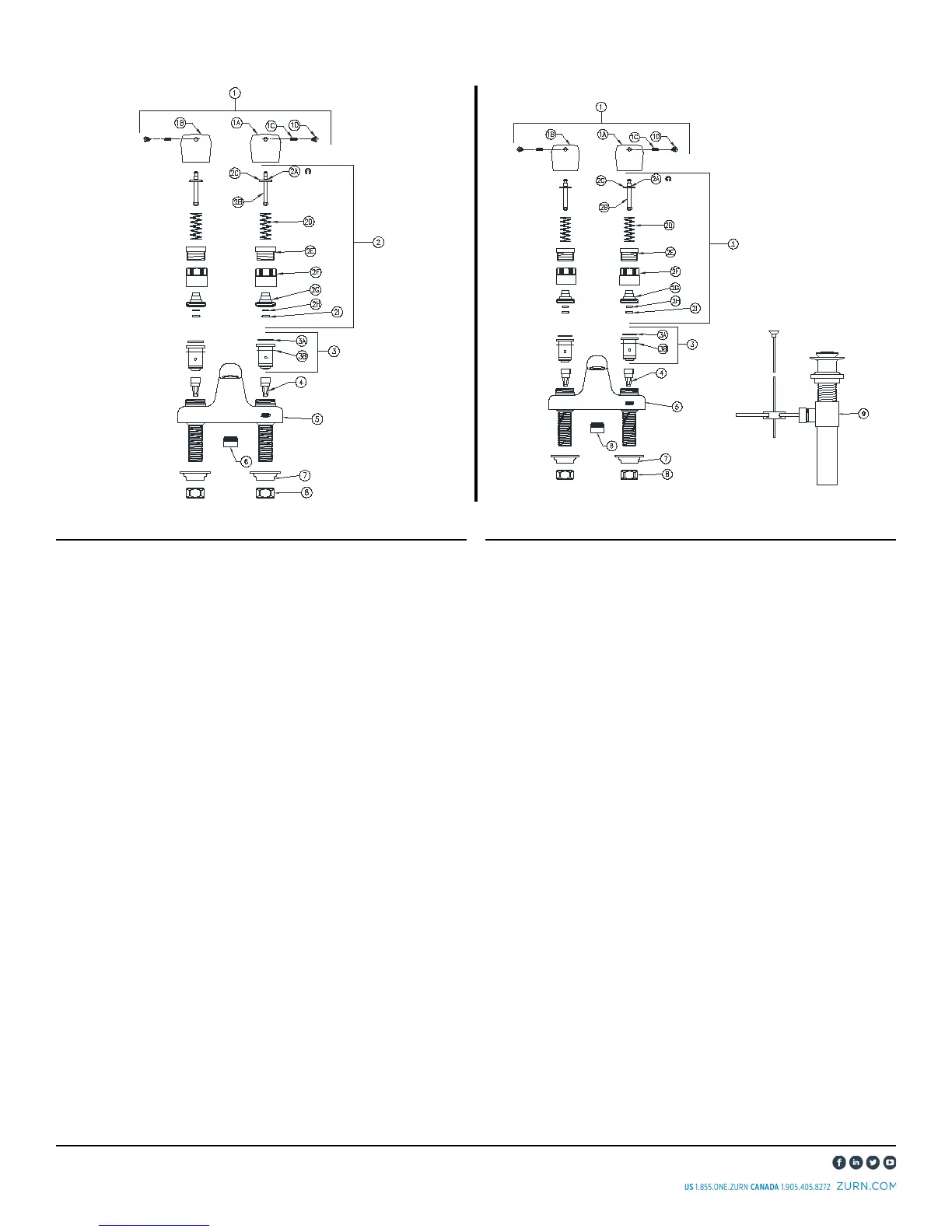

Z86500-XL PICTURED Z86500-XL-P PICTURED

Item Part Number Description Qty.

1 G61830 Dual Metering Handle Assembly 1

1A 60601002 Cold Metering Handle 1

1B 60601001 Hot Metering Handle 1

1C 62705001 Setscrew 2

1D G60562 Metering Index Buttons - H, C 1

60460001 Hot Index 1

60460002 Cold Index 1

2 G60561 Handle Nut Assembly 2

2A - E-Ring 1

2B - Stem 1

2C - Spring Seat 1

2D - Spring 1

2E - Adjustment Nut 1

2F - Cap 1

2G - Stem Housing 1

2H - O-Ring 1

2I - O-Ring Retainer 1

3 G61754 Metering Cartridge Assembly 2

58155020

O-Ring 1

3B 81241001 Washer 1

4 G68020 Integral Shank Filter 2

5 92950003 4” [102mm] Centerset Body 1

6 G63561 13/16”-27 Male Spray Outlet - 0.25 1

7 G68042 Mounting Nut 1

8 G68043 1/2” NPSM Riser Nut 1
