FV794 Rev. A 05/21/21
Page 5

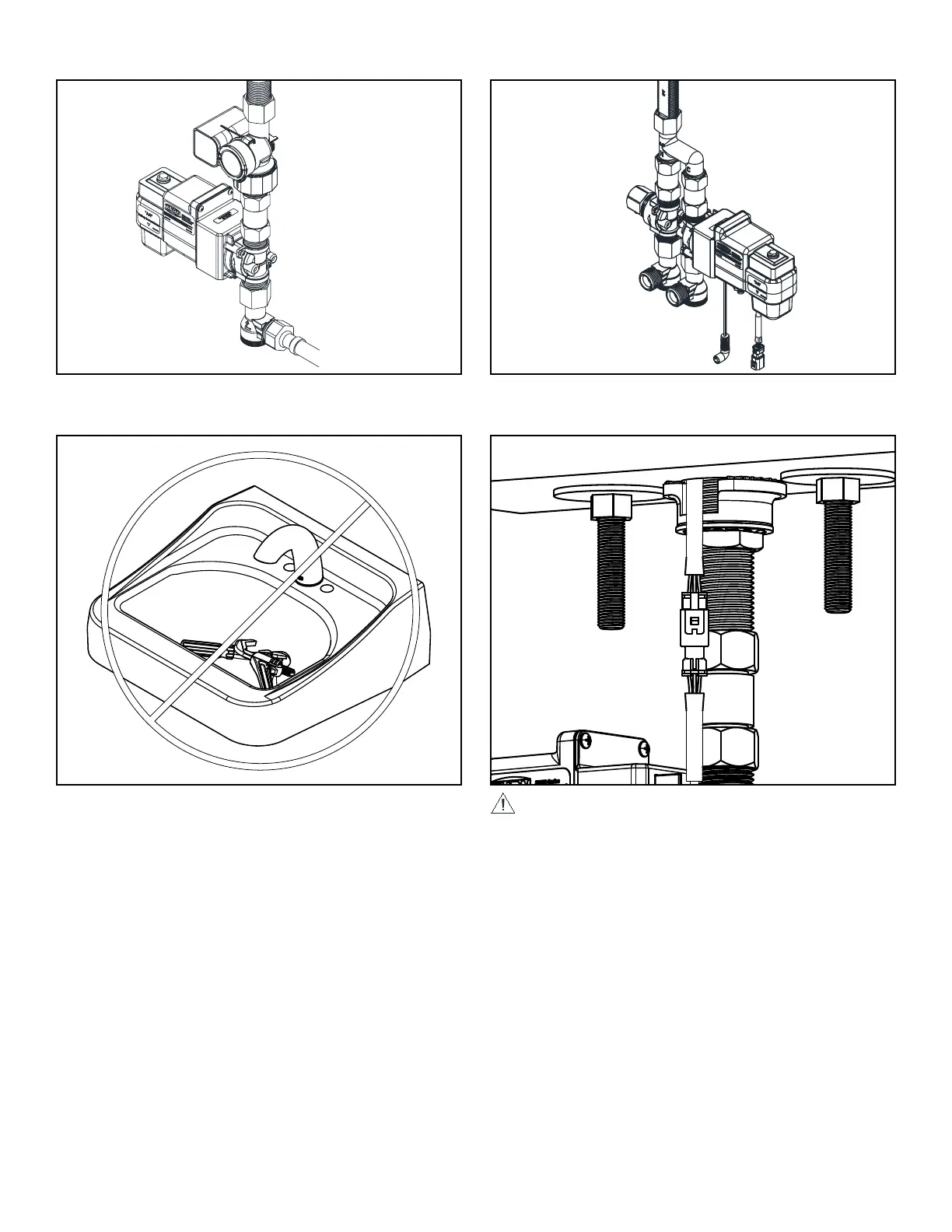

2.8. Connect sensor inline connector or electronics module (for
battery-powered, IM installations) to sensor cable from spout.
2.6. Turn on water supply(ies).
2.7. Ensure that sink is clear of tools/debris and is in normal
operating condition.
After the connection is made, do not engage the sensor until
its self-calibration is complete. The sensor’s self-calibration is
complete once the faucet stops owing water. The sensor’s
self-calibration can take up to one (1) minute after the
connection is made.
2.5. Tighten electronics module assembly with hydrogenerator to
shank and connect water line(s).
2.5.a. For IM assembly, tighten mixing yoke with electronics module
and hydrogenerator assembly to shank and connect water line(s).
To Next Page
