Chapter 3 Web Configurator

AX/DX/EX/PX Series User’s Guide

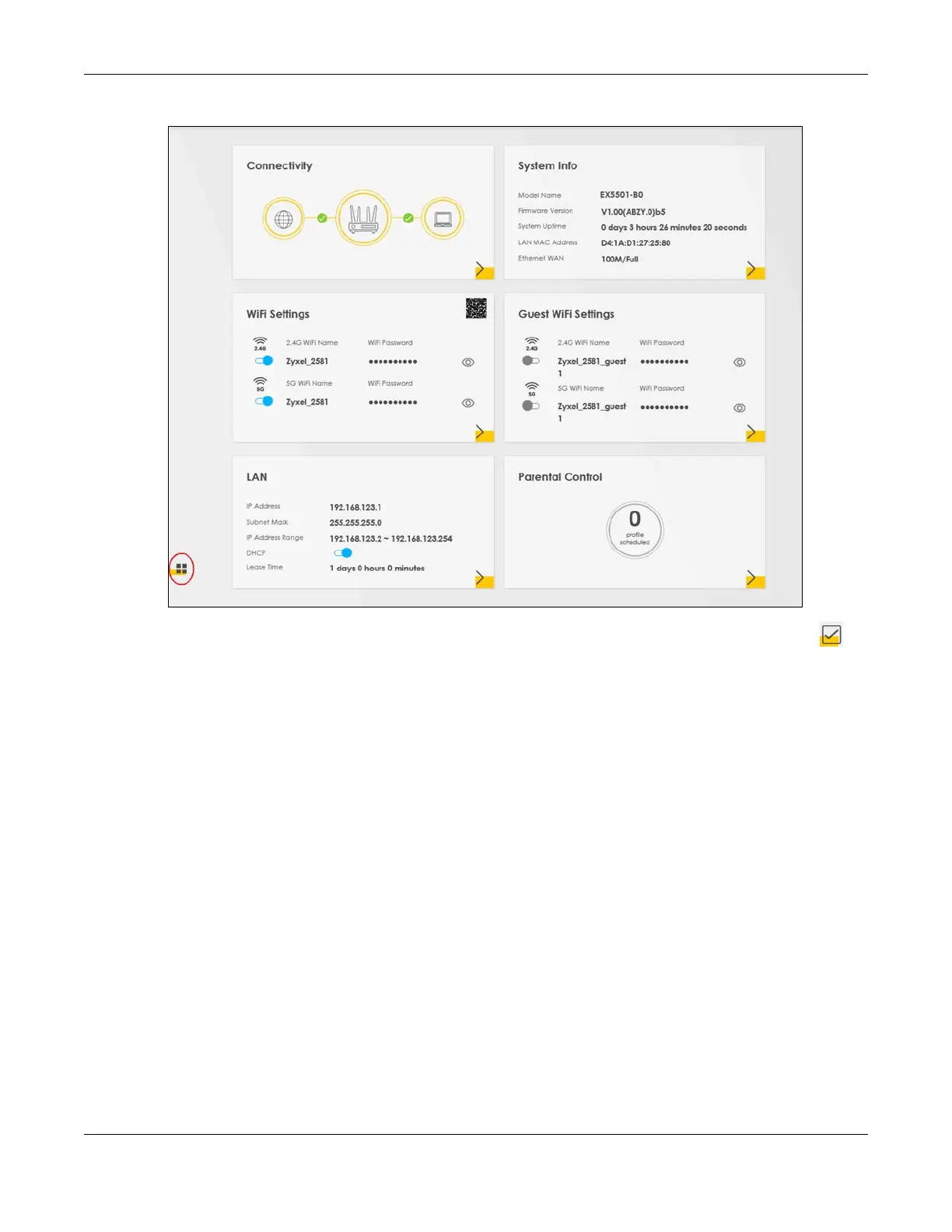

Figure 53 Dashboard Widget

The following screen appears. Select a block and hold it to move around. Click the Check icon ( ) in

the lower left corner to save the changes.
