XGS4700/XGS4500 Series
24/48-port GbE L3 Switch with 10GbE Uplink
XGS4700/XGS4500 Series
24/48-port GbE L3 Switch with 10GbE Uplink
XGS4700/XGS4500 Series
24/48-port GbE L3 Switch with 10GbE Uplink
XGS4700/XGS4500 Series
24/48-port GbE L3 Switch with 10GbE Uplink
Speci cationsKey Applications
Single Site Campus Hotel IPTV Service
Virtualization
Features
Standard Compliance
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-Tx Ethernet
• IEEE 802.ab 1000BASE-T Ethernet
• IEEE 802.3x  ow control
• IEEE 802.1D spanning tree protocol
• IEEE 802.1w rapid spanning tree protocol
• IEEE 802.1s multiple spanning tree protocol
• IEEE 802.1p class of service, priority protocols
• IEEE 802.1Q VLAN tagging
• IEEE 802.1X port authentication
• IEEE 802.3ad LACP aggregation
Tra c Management and QoS
• Rate Limiting: Policy-based/Port-based
bandwidth control, 64 kbps granularity
• Two Rate Three Color Marker (trTCM)
• CIR/PIR for bandwidth control
• Port-based egress tra c shaping
• Broadcast storm control
• IEEE 802.1p with 8 priority queues per port for
di erent tra c types
• WFR (Weighted Fair Queue)/WRR (Weighted
Round Robin)/SPQ scheduling algorithm
• DSCP/DSCP to 802.1p priority mapping
• IGMP/IGMP snooping v1, v2, v3
• IGMP throttling
• Support IGMP snooping fast leave
• Support IGMP snooping statistics
• Multicast VLAN Registration (MVR)
• Congestion control on all ports
• Selective QinQ
IP Routing and Service Features
IPv4
• Wire-speed IP forwarding
• RIP v1, v2
• OSPF
• Static routing
• DHCP server/relay
• OSPF summary address
• DVMRP, ECMP
• IP port moving
• VRRP
IPv6
• IPv6 over Ethernet
• IPv6 Addressing
• ICMPv6
• Dual Stack
• IPv6 static routing
• IPv6 MLD snooping proxy
• Neighbor discovery
• DHCPv6 relay
Link Aggregation
• IEEE 802.3ad LACP link aggregation
• Static manual port trunking
• Up to 12/24 aggregation groups (XGS-4728F,
XGS-4528F, XGS-4526: 12; XGS4700-48F: 24),
8 ports per group randomly selected
• Link aggregation algorithm of source/
destination IP address
Resilient Network
• IEEE 802.1w Rapid Spanning Tree Protocol
(RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol
(MSTP)
• Backup Power System (BPS-120 for XGS-
4728F, XGS-4528F, and XGS-4526)
• Redundant power (XGS4700-48F)
• Switch CPU Protection
User Security and Authentication
• IEEE 802.1Q tag-based and port-based VLAN
• Support GVRP, automatic VLAN member
registration
• 1K static VLAN, up to 4K dynamic VLAN
• Full range 4K PVID support
• Port-base VLAN & VLAN isolation
• IP classi cation VLAN
• VLAN counter
• VLAN search
• VLAN translation
• VLAN MAC limit
• Intrusion Lock
• MAC freeze
• MAC search
• MAC  ltering per port secures access to each
port
• Port security
• Limited MAC number per port
• IP source guard
• Loop guard
• RADIUS MAC login
• IP  ltering
• TCP/UDP socket  ltering
• BPDU transparency
• 802.1X port-based authentication
• Enhanced 802.1X compensate assignment
over VLAN and bandwidth
• TACACS+
• Layer 2 protocol tunneling
• Guest VLAN
Network Administration Security
• User name/password required for Web/
Telnet/local console administrators
• Two-level security by speci c SNMP read/
write community
• Multiple login session
• Multiple access permission management
• SSH v1/v2
• SSL/TLS
Network Management
• ZyXEL iStackingTM, up to 24 switches
managed by single IP address
• Web-based management
• Telnet CLI
• SNMP v1, v2c, v3
• RS-232c local console
• IP management: static IP or DHCP client
• RMON four RMON groups 1, 2, 3, 9 (history,
statistics, alarms, and events)
• Port mirroring: source/destination/both port
mirroring
• IEEE 802.1ag CFM
• IEEE 802.1AB LLDP
• Support transceiver DDMI information
(including MIB)
• sFlow
Intelligent ACL
(L2/L3/L4 Access List Control)
• Based on MAC address
• Based on VLAN
• Based on IP address
• Based on protocol type
• Based on TCP/UDP type
• Based on DSCP
Hardware
• Support of auto-negotiation
• Support of auto MDI/MDI-X
• Console: D-Sub 9 pin Female (DCE)
• Management: 1 out-of-band management
RJ-45 port
MIB Information
• RFC 1066 TCP/IP-based MIB
• RFC 1213, 1157 SNMP v2c/v3 MIB
• RFC 2011, 2012, 2013 SNMP v2 MIB
• RFC 1493 bridge MIB
• RFC 2674 bridge MIB extension
• RFC 1643 Ethernet MIB
• RFC 2358 Ethernet-like MIB
• RFC 1757 RMON group 1, 2, 3, 9
• RFC 2819, 2925 Remote Management MIB
• ZyXEL private MIB
Internet
Core Aggregation Access
ISP 2
ISP 1
Device
HA
OSPF
standard
area
OSPF
backbone
area
OSPF
stub
area
OSPF
standard
area
Server
Farm
Server
Farm
ZyWALL USG
Unified Security
Gateway
ZyWALL USG
Unified Security
Gateway
GS2200-24
24-port GbE
L2 Switch
GS2200-24
24-port GbE
L2 Switch
GS2200-24
24-port GbE
L2 Switch
GS2200-24
24-port GbE
L2 Switch
XGS4700-48F
48-port GbE L3 Switch
with 10GbE Uplink
XGS4700-48F
48-port GbE L3 Switch
with 10GbE Uplink
XGS4700-48F
48-port GbE L3 Switch
with 10GbE Uplink
XGS4700-48F
48-port GbE L3 Switch
with 10GbE Uplink
GS2200 24
XGS4700 48F
XGS4700 48F
CH1, VLAN1
CH1, VLAN2
CH1, VLAN3
CH1, VLAN4
Media
Server
Media
Server

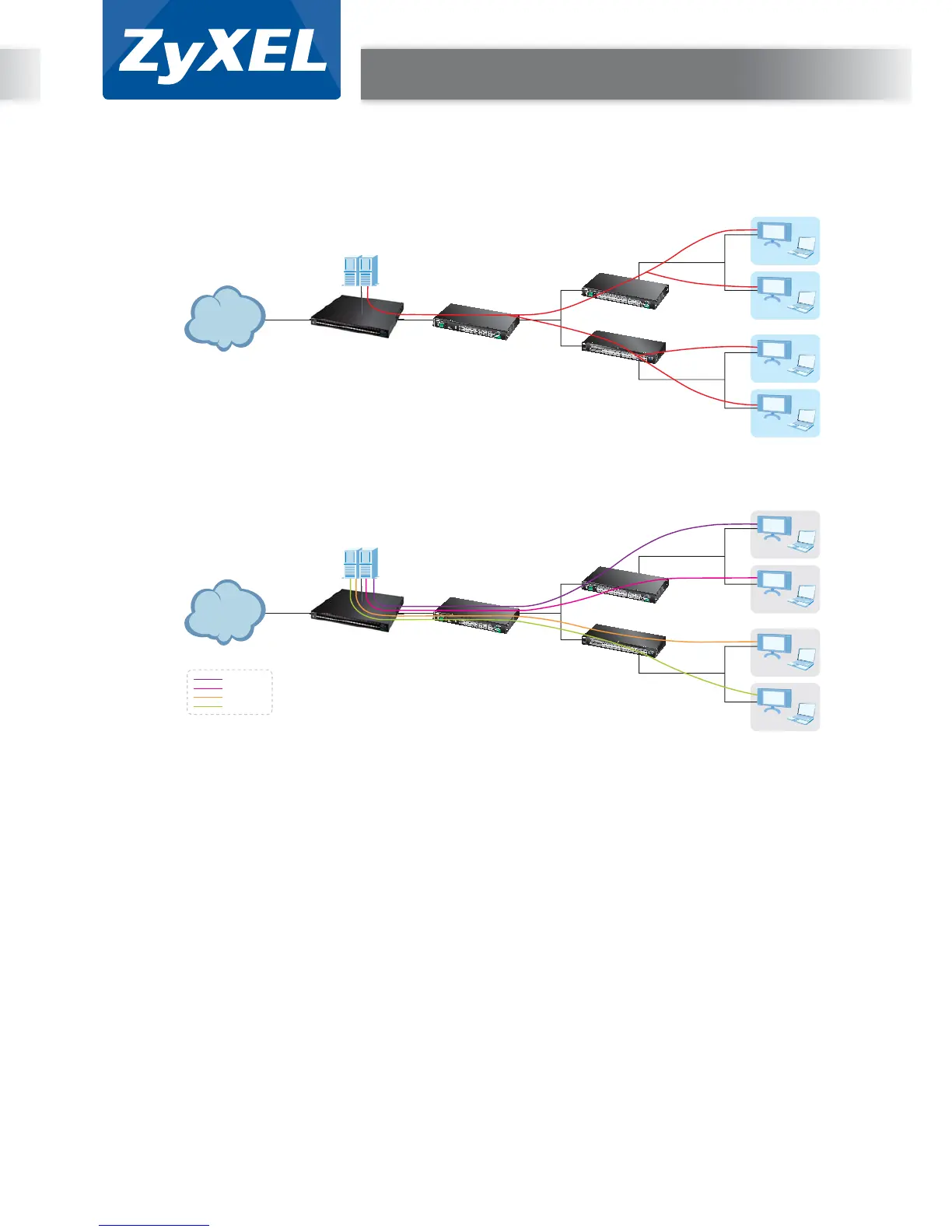

Multicast VLAN Registration (MVR) allows one single multicast VLAN
to be shared among different subscriber VLANs on the network.
With MVR function
Sub 1
Sub 2
Sub 3
Sub 4
Internet
Without MVR function
Media
Server
Media
Server
Sub 1
Sub 2
Sub 3
Sub 4
Internet
GS2200-24
24-port GbE
L2 Switch
XGS4700-48F
48-port GbE L3 Switch
with 10 GbE Uplink
MGS-3712
12-port GbE
L2 Switch
MES-3728
24-port FE L2 Switch
GS2200-24
24-port GbE
L2 Switch
XGS4700-48F
48-port GbE L3 Switch
with 10 GbE Uplink
MGS-3712
12-port GbE
L2 Switch
MES-3728
24-port FE L2 Switch
Model XGS4700-48F XGS-4728F XGS-4528F XGS-4526
Product name
48-port GbE L3 Switch
with 10GbE Uplink
24-port GbE L3 Switch
with 10GbE Uplink
24-port GbE L3 Switch
with 10GbE Uplink
24-port GbE L3 Switch
with 10GbE Uplink
Port Density
1000BASE-T ---20
GbE Open SFP Slot 48 - - -
Dual personality GbE ports -24244
10G expansion module slot 2111
12G stacking port -22-
Performance
Switching capacity (Gbps) 192 144 144 96
Switching forwarding rate (Mpps) 143 100 100 71.4
Packet buffer (byte) 2M 2M 768K 768K
MAC address 32k 16k 8k 8k
IP address table 8K 8K 2K 2K
Routing entries 12K 8K 512 512
Routing domains 128 64 64 64
Certification
Safety
ANSI/UL 60950-1
CSA 60950-1
EN 60950-1
IEC 60950-1
Emission (EMC)
FCC Part15 (Class A)
CE EMC (Class A)
Others EU RoHS Compliant
Power Requirement
Removable power module Yes - - -
Input voltage of AC 100 - 240 V AC, 50/60 Hz
Input voltage of DC -36 to -72 V DC -36 to -72 V DC -36 to -72 V DC -
Physical Specifications
Removable fan module Yes - - -
Item dimensions (WxDxH)(mm/in.)
440 x 424 x 44.5/
17.52 x 16.70 x 1.75
438 x 310 x 44.5/
17.24 x 12.20 x 1.75
438 x 310 x 44.5/
17.24 x 12.20 x 1.75
438 x 310 x 44.5/
17.24 x 12.20 x 1.75
Item weight (kg/lb.) 5.4/11.90 4.9/10.80 4.9/10.80 4.8/10.58
Packing dimensions (WxDxH)(mm/in.)
583 x 535 x 163/
22.95 x 21.06 x 6.42
580 x 466 x 176/
22.83 x 18.35 x 6.93
580 x 466 x 176/
22.83 x 18.35 x 6.93
580 x 466 x 176/
22.83 x 18.35 x 6.93
Packing weight (kg/lb.) 7.8/17.20 5.9/13.01 5.9/13.01 5.67/12.50
Environmental Specifications
Operating temperature 0°C to 45°C/32°F to 113°F
Storage temperature -10°C to 70°C/14°F to 158°F
Operating humidity 10% to 90% (non-condensing)
Storage humidity 10% to 90% (non-condensing)
MTBF (hr) 77,451 119,814 125,667 119,814
Heat dissipation (BTU/hr) 487.63 289.85 289.85 245.52
Storage
iSCSI
Storage
iSCSI
Storage
iSCSI
Storage
iSCSI
XGS-4528F
24-port GbE
L3 Switch
with 10GbE
Uplink
XGS-4528F
24-port GbE
L3 Switch
with 10GbE
Uplink
USG 1000
Unified Security Gateway
USG 1000
Unified Security Gateway
XGS-4526/4528F
24-port GbE L3
Switch with10GbE
Uplink
GS2200-24
24-port GbE
L2 Switch
GS2200-24
24-port GbE
L2 Switch
VLAN1001/MRSTP2/VRRP
ESX1 ESX2
VLAN1002/MRSTP1/VRRP
VLAN1/MRSTP1
VLAN1000/VRRP
iSCSI
ESX Server ESX Server
Server Server
iSCSI
Ethernet
CX4 12G
Trunk static
Trunk LACP
