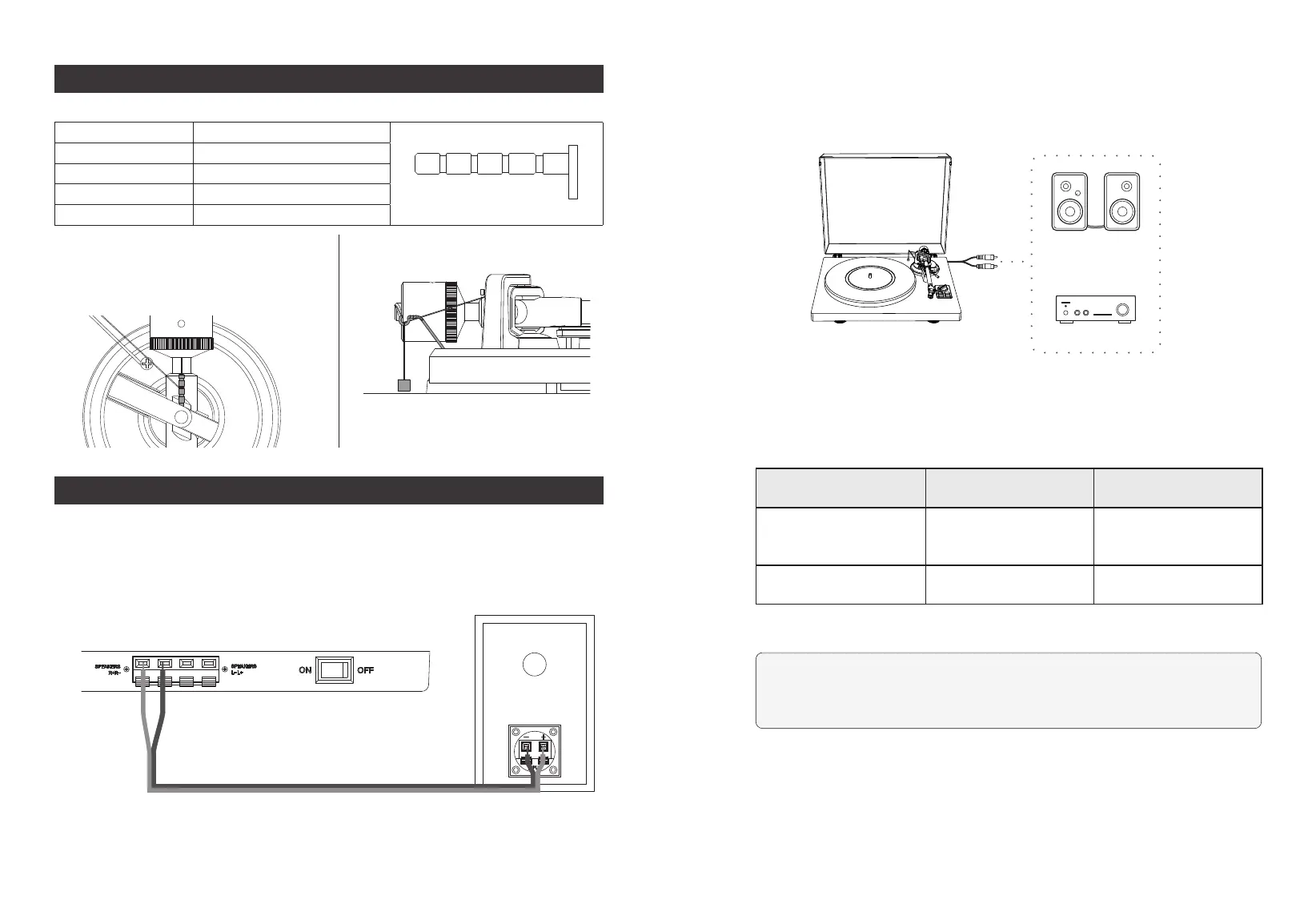

Anti-skating Force Adjustment
The anti-skating force must be adjusted corresponding to the tracking force as follows:
Tracking Force Groove in the Stick
④ ③ ② ①
5-10 mN 1st from bearing ring
10-15 mN 2nd from the bearing ring
15-20mN 3rd from the bearing ring
>20mN 4th from the bearing ring
1. Slip the loop of the anti-skating weight's
thread over the
3rd
groove of the stick
to set the correct anti-skating force for
the factory-installed cartridge.
2. Feed the thread through the loop of
the wire hanger.
Connection to Speakers
1. Connection to the Included Speakers
This turntable includes a built-in preamp and comes supplied with Hi-Fi speakers.
Connect the speakers using the included audio cable (dark cable to black cable
clamp and light cable to red cable clamp).
2. Connection to External Speaker with the RCA Audio Cable
If you wish to use your own amplifier or speakers, please follow the instructions
below:
RCA wired connection
Active Speakers
or
Amplifier
2.1 Setting pre-amplifier selector switch
This product has a built-in phono equalizer function. You can use the product
even if you do not have a phono amplifier or connectable equipment with a
built-in phono amplifier.
Use the pre-amplifier selector switch to set the output, as shown below.
Connectable equipment
being used
Position of pre-amplifier
selector switch
Where to connect RCA
audio cable
Device with phono input PHONO Phono input jack and
ground (earth) terminal of
connectable equipment
Device without phono
input
LINE AUX or line input jack of
connectable equipment
When connecting via the included speakers, using the pre-amplifier selector
switch is not necessary.
NOTE: The RCA Jacks are not designed to be connected directly to the
passive/unpowered speakers on LINE mode. If connected to the passive
speakers, there will be no sound.
