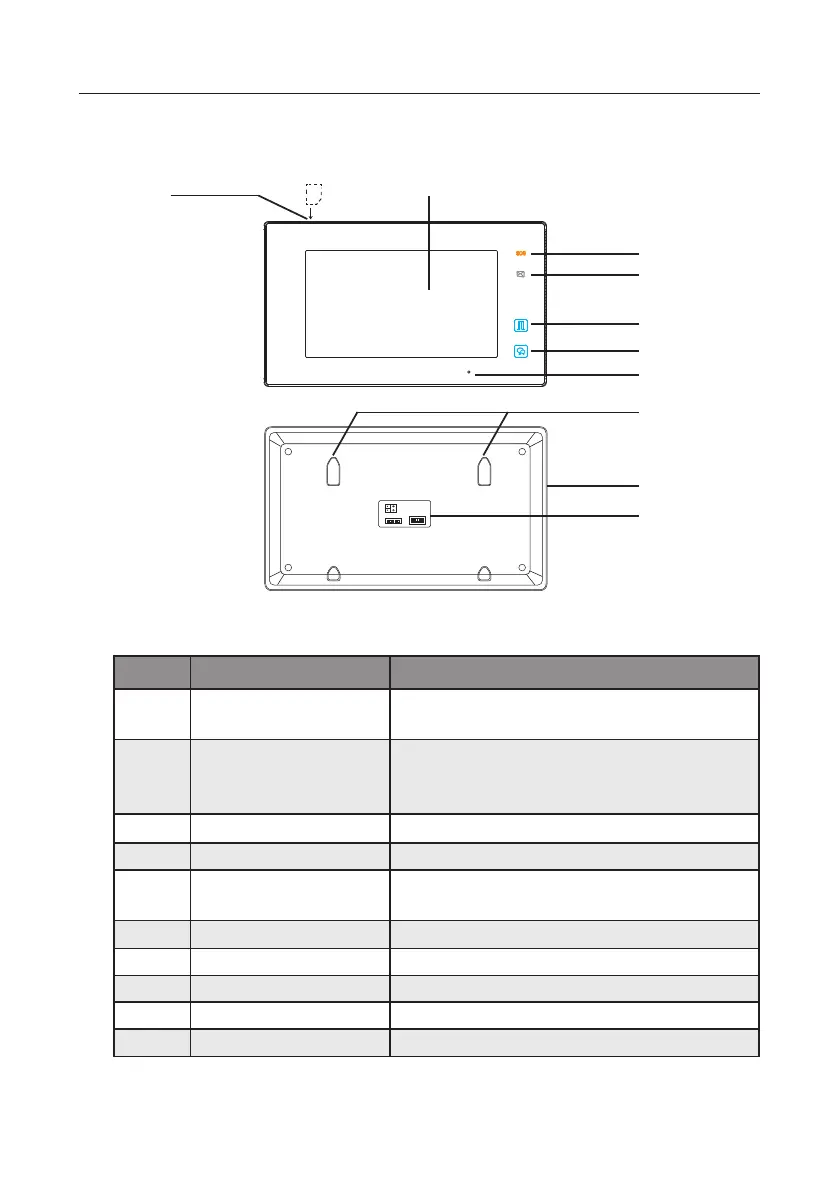

3. Parts and Functions
[1]
[7]
[2]
[3]
[4]
[5]
[6]
[8]
[9]
[10]
SD card
1 2 3 4 5 6
ON DIP
Key functions
NO. Item Description
[1] Digital LCD touch screen
See the next page for details
Display the visitors' image
[2] Emergency button
Press it & hold for 3s to send SOS message to mo-
bile phone,the function is supported by GSM unit.
[3] Message indicator Light up when the monitor has missed call
[4] Unlock button Press to release the door
[5] Talk/Mon button
Press to communicate hands free with visitor
Press to view the outdoor condition in standby mode
[6] Microphone Transmit audio from one station to other stations
[7] SD card slot Use to insert micro-SD card
[8] Mounting hook Use to hang up the monitor
[9] Speaker Send out sounds of ring tones,audios and alarms
[10] Connection port Bus terminal
To Next Page
