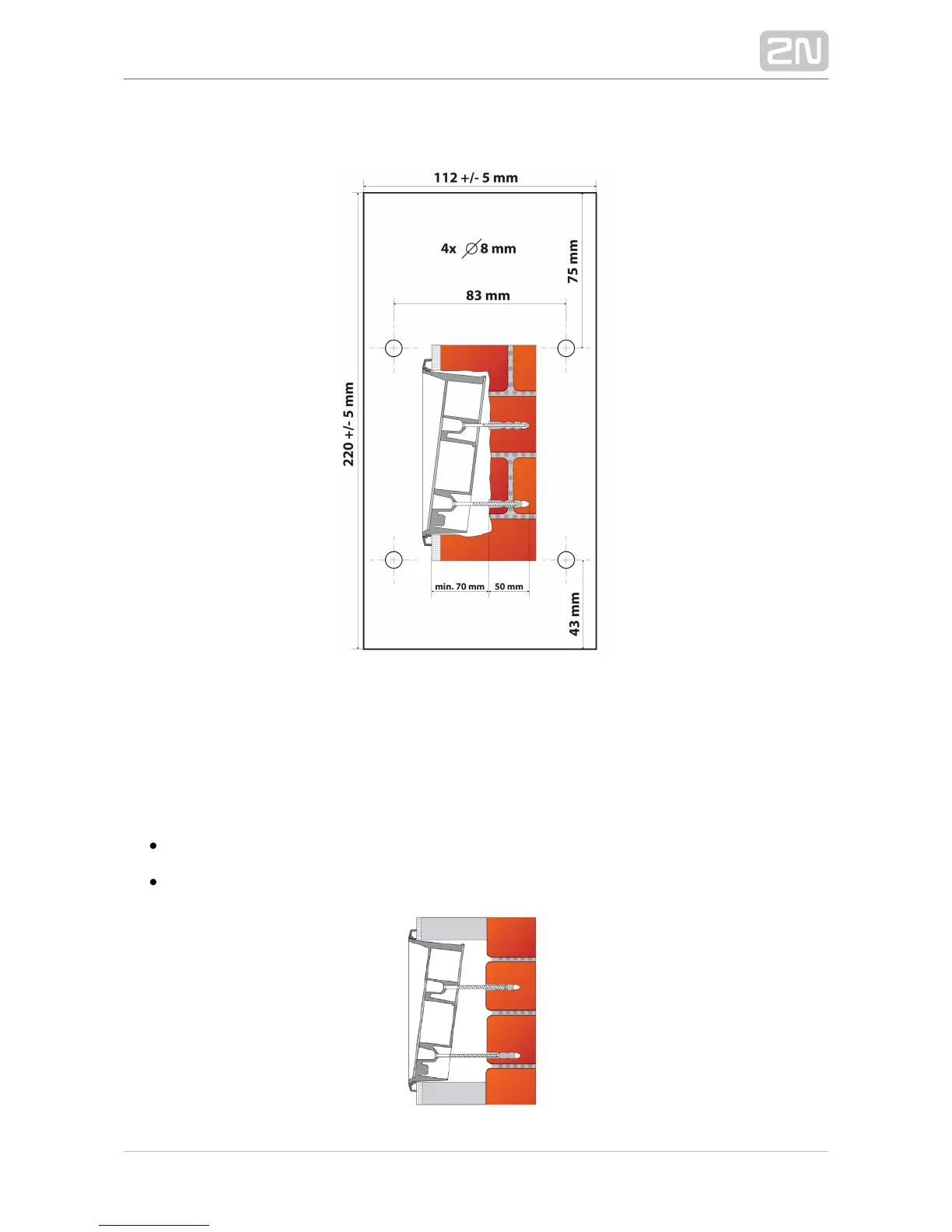

Be sure keep strictly the hole dimensions while mounting the device into classic bricks
without the flush mounting box as shown in the figure below.
Flush Mounting – Thermally Insulated Wall
Cut out the thermal insulation layer using the template (the same as for classic brick
wall).
What You Need:
Longer screws (depending on the thermal insulation thickness)
Hole: (112 × 220 × 70) mm
