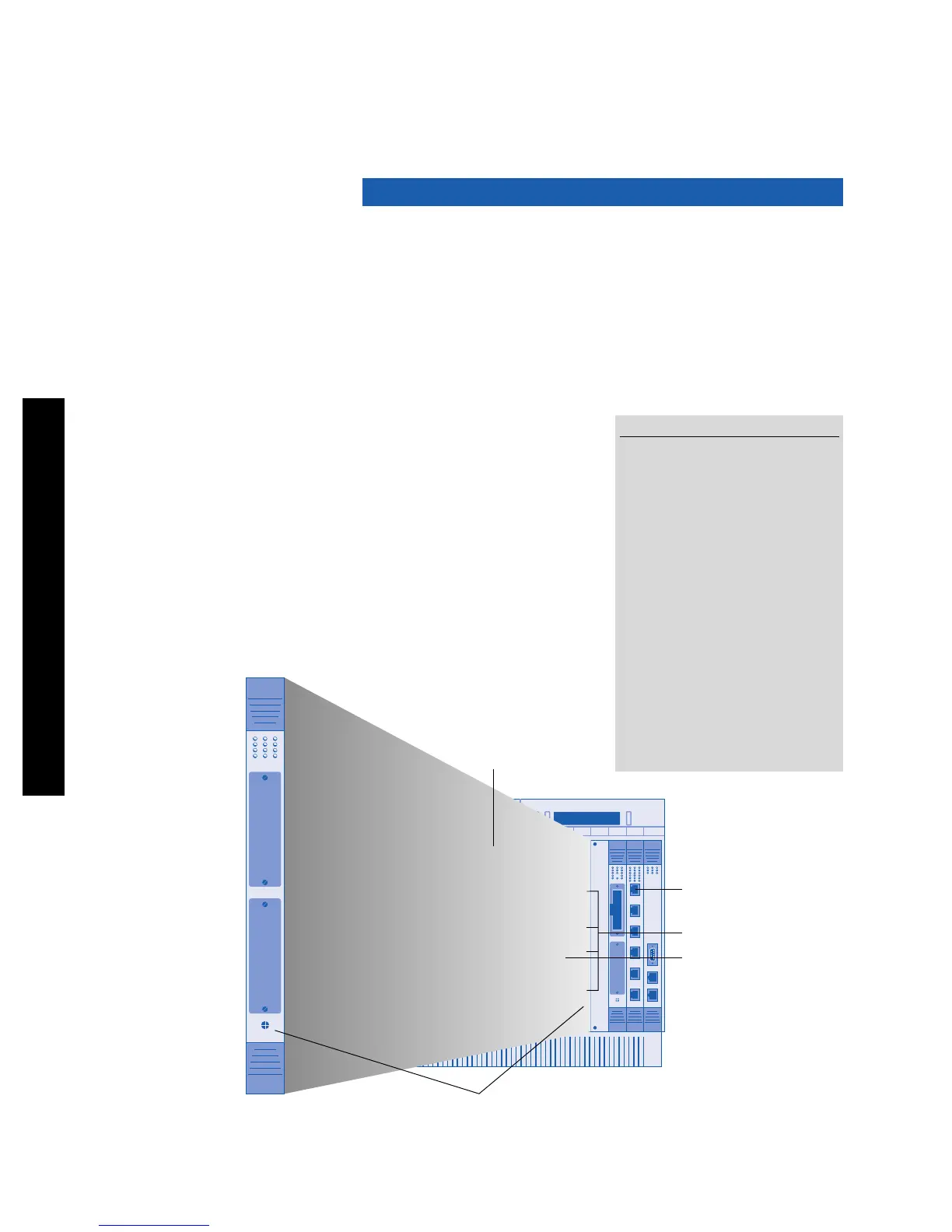

12 LinkBuilder Hub Configuration Guide
Solution 5:
LAN Switching and High-Speed Connectivity
Highlights
With powerful connectivity and
switching modules, the LinkBuilder
MSH hub can provide high-speed
FDDI floor concentration, as well
as floor-based switching between
Ethernet and FDDI LANs. High-
performance users get FDDI connec-
tions from the hub, while other users
keep their Ethernet links.
The FDDI RingBuilder module
creates an FDDI ring from multiple
FDDI fiber-optic concentrator mod-
ules within the LinkBuilder MSH hub.
FDDI-attached servers offer signifi-
cant improvement in file access over
Ethernet server connections in high-
bandwidth application environments.
The LinkSwitch 1200 module
and the LinkSwitch 1200 expansion
module provide full-speed switching
between up to nine Ethernet segments
and FDDI. The LinkSwitch 1200
module can connect to one of the
internal FDDI backplanes, or accom-
modate 1 or 2 FDDI fiber MIC media
modules for external single-attached,
dual-attached, or dual-homed con-
nections to the FDDI ring. The dual
homing feature provides additional
resilience by preventing the FDDI
ring from fragmenting if multiple
devices fail simultaneously.
Solution 5: LAN Switching and High-Speed Connectivity
Products
LinkBuilder MSH Chassis with FDDI
Backplane (3C18041)
LinkBuilder MSH 525 Power Supply Unit
(3C18012)
LinkBuilder MSH 24-Port 10BASE-T
Repeater Module (3C18122A)
LinkBuilder MSH FDDI Fiber-Optic Module
(3C18300)
LinkBuilder MSH FDDI RingBuilder Module
(3C18310)
LinkBuilder MSH LinkSwitch 1200 Module
(3C18640)
FDDI MIC Media Module (3C18320)
LinkBuilder MSH LinkSwitch Expansion
Module (3C18645)
LinkBuilder MSH Management Module
(3C18500)
LANplex 2500 (3C250100)
®
FDDI backbone
FDDI servers
Standard
workstations
LinkSwitch 1200 Module
(3C18640)
High-performance 
workstations
Chassis-Based High-Performance Workgroups
Requirements
Provide high-speed connections
to floor-based workgroups in
a large network with an FDDI
or ATM backbone. Servers are
distributed throughout the
building. Servers and high-
performance workstations need
higher bandwidth than can be
obtained with current Ethernet
connections.
