3Com 3CBLUG24A - Physical Features; Front Panel; Rear Panel; Description of Leds

4

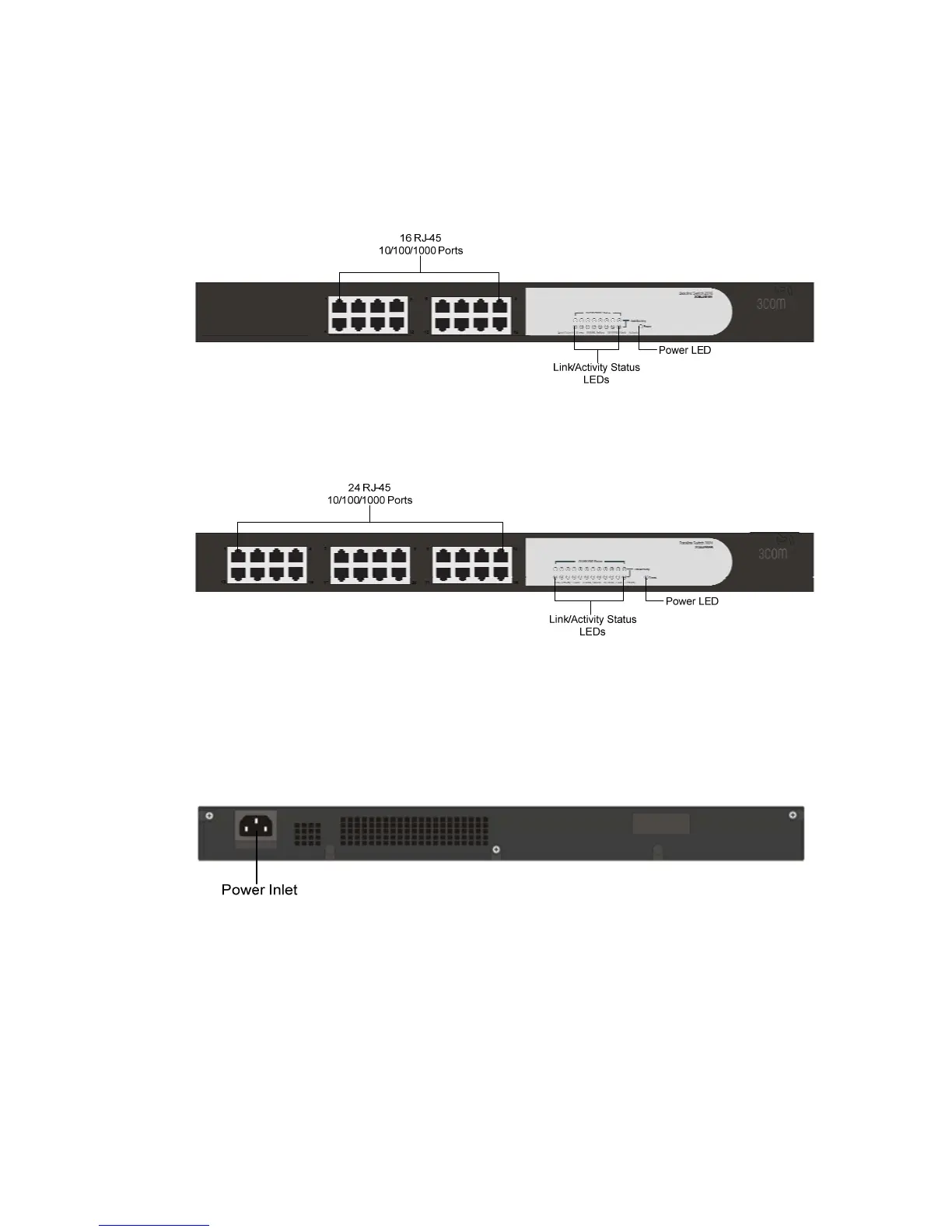

Physical Features
Front Panel
Figure 1-2 2816
Figure 1-3 2824
Rear Panel
Figure 1-4 Rear Panel
Description of LEDs
The Switch provides LEDs on the front panel for your convenience to
monitor the switch.
Table 1-2 describes the meanings of the LEDs.
