3Com Router 3012 User Manual

Router 3016 and Router 3018 15

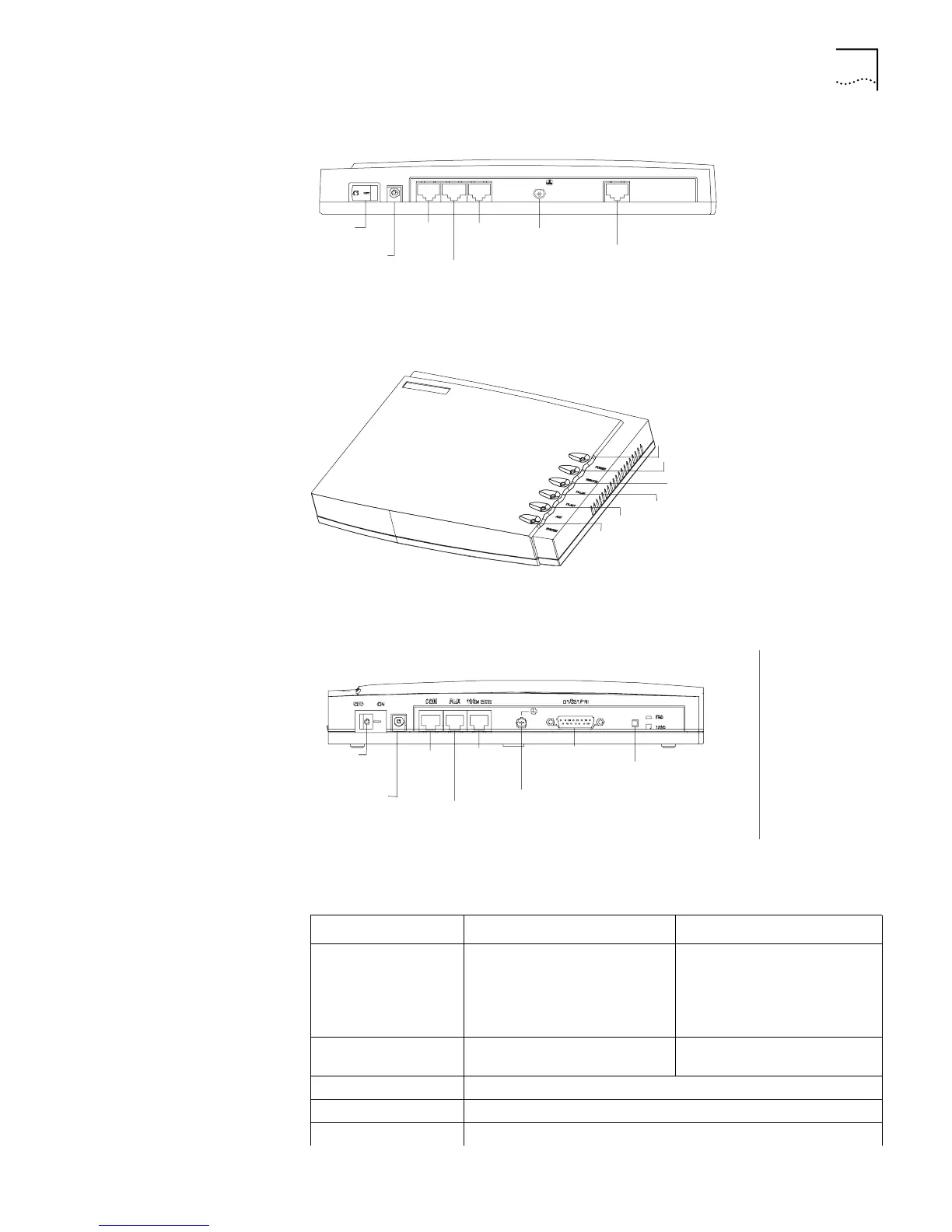

Figure 6 Back Panel of the Router 3016
Figure 7 illustrates the Router 3018.
Figure 7 Router 3018
Figure 8 illustrates the back panel of the Router 3018.
Figure 8 Back Panel of the Router 3018
System Specifications Tabl e 16 lists system specifications for the Router 3016 and Router 3018.
OFF ON
CON AUX100METH
CT1/PRI
Power
switch
Power
input
socket
CON
port
AUX
port
100M
Ethernet
port
Grounding
screw
CT1/PRI
port
Power LED
Ethernet LED
E1 Link LED
E1 ACT LED
AUX LED
System LED
Power
switch
Power
input
socket
CON
port
AUX
port
100M
Ethernet
port
Grounding
screw
E1/CE1/PRI
port
Port impedance
toggling button
Tab le 16 System Specifications for the Router 3016 and Router 3018
Item Router 3016 Description Router 3018 Description
Fixed ports 1 console port
1 10/100 Mbps Ethernet port
1 AUX port
1 CT1/PRI port
1 console port
1 10/100 Mbps Ethernet port
1 AUX port
1 E1/CE1/PRI port
Button 1 E1/CE1/PRI port impedance
toggling button
Processor MPC860T 50 MHz
SDRAM 64 MB
Flash memory 8 MB
