3DGence DOUBLE P255 - maintenance activities | version 07.2021
10. Raise the heatbed (Menu-> Upper heatbed).
11. Lower the heatbed (Menu ->Lower heatbed).
12. Collect excess grease from linear carriages and trapezoid bolt nuts using a paper towel.
LUBRICATING THE X AXIS
1. Move the module to the left until it stops to get access to the grease nipple on the X axis carriage.
2. Push grease into the grease nipple of the linear carriage of the X axis (Fig.75) by pressing the lubricator
nozzle firmly against the grease nipple and pressing smoothly the lubricator lever once.

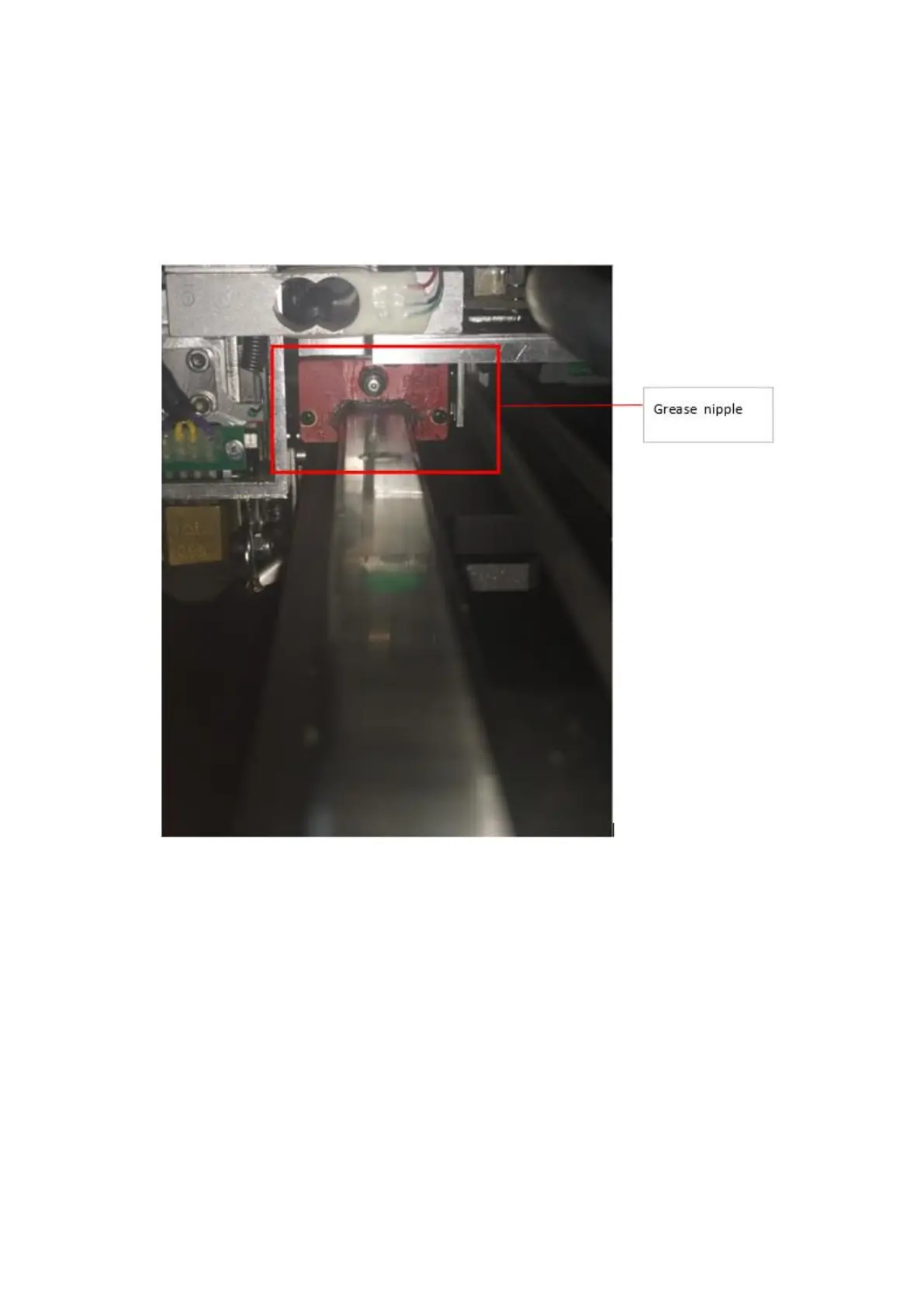

Fig.75 Linear carriage of the X axis
3. Move the module to the right and left twice.
4. Remove excess grease from the linear carriages using a paper towel.
