3DGence DOUBLE P255 - maintenance activities | version 07.2021
LUBRICATING THE Y AXIS
1. Move the heatbed to the front of the printer until it stops, to get access the Y axis linear carriage grease
nipple (Fig.76)
2. Push grease out by pressing the lubricator nozzle firmly against the grease nipple of the Y axis carriage and
pressing smoothly the lubricator lever once.

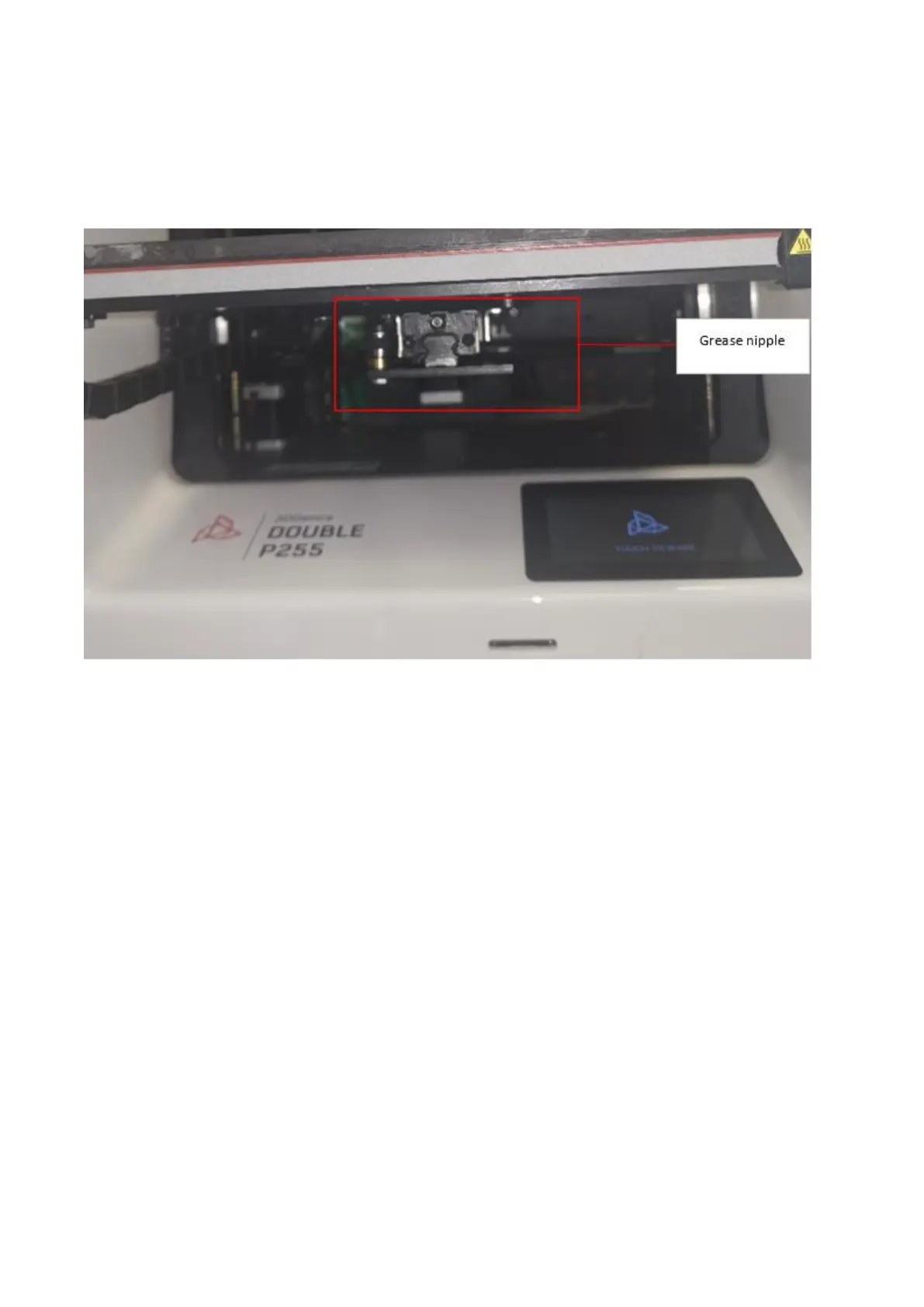

Fig.76 Linear carriage grease nipple Y axis
3. Move the heatbed back and forth twice.
4. Remove excess grease from the linear carriages using a paper towel.
5. Push grease out by pressing the lubricator nozzle firmly against the grease nipple of the Y axis carriage and
pressing smoothly the lubricator lever once.
6. Move the module back and forth twice.
7. Remove excess grease from the linear carriages using a paper towel.
