2 Power system
wiring
Follow these instructions to connect
the power system.

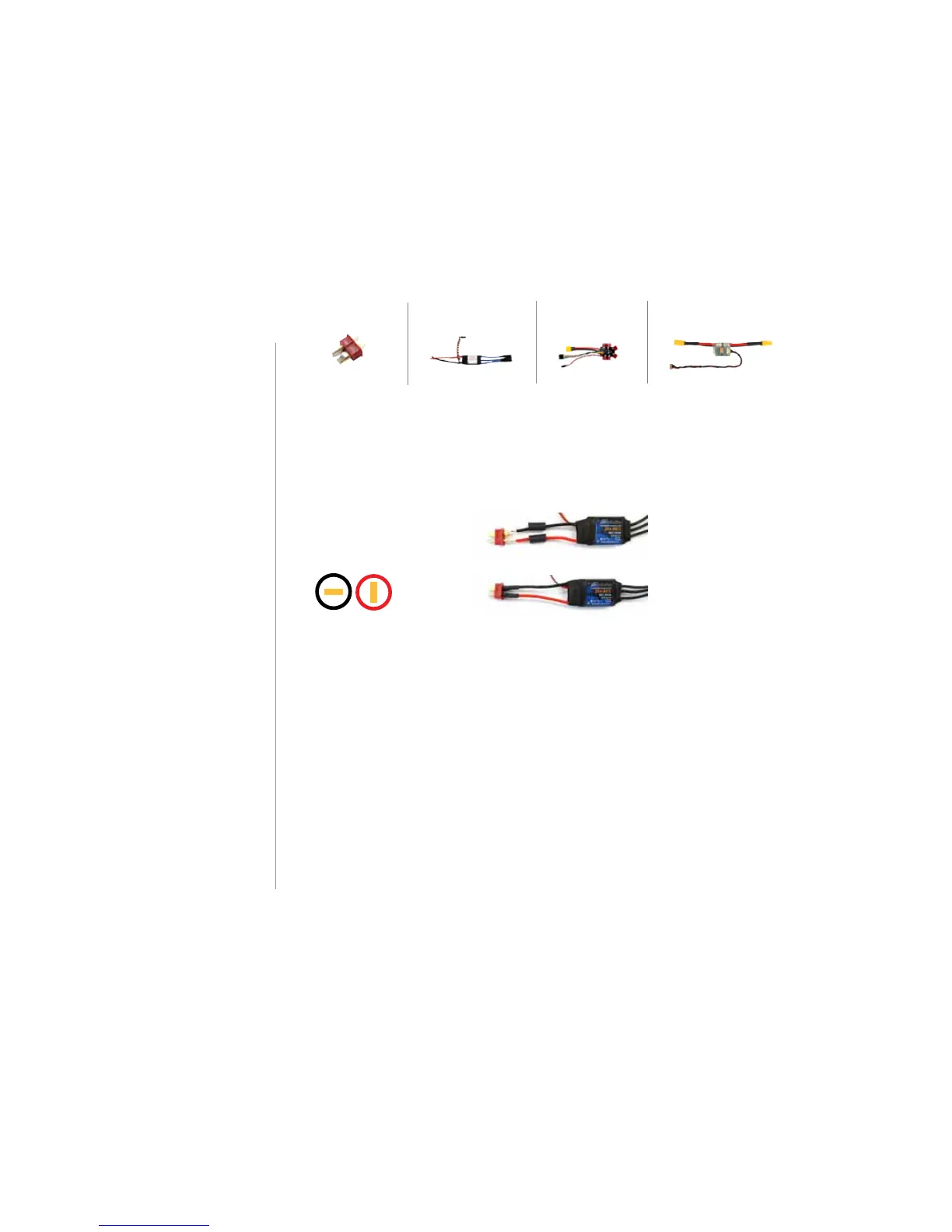

1 Solder Deans to ESCs
Solder a Deans connector to the red
and black wires on each electronic
speed controller (ESC). Check the
Deans connectors for the + and –
markings, and solder the + side to
the red wire and the – side to the
black wire. Don’t forget to add heat
shrink tubing to the wires before
soldering, and shrink the tubing over
the finished connections.
2 Number ESCs
Use tape (or other method) to label
each ESC with a number one through
six.
Deans to ESC:
negative = black
positive = red
-
+
power modulepower distribution
board (PDB)
electronic speed
controllers (ESCs)
(6)
Deans connectors (6)
