3M 10800 - Dimensional Drawing; Specifi Cations

NA - ENG
April 2017
3M-Matic
™
Accuglide 3 - 2 Inch Taping Head
Page 7

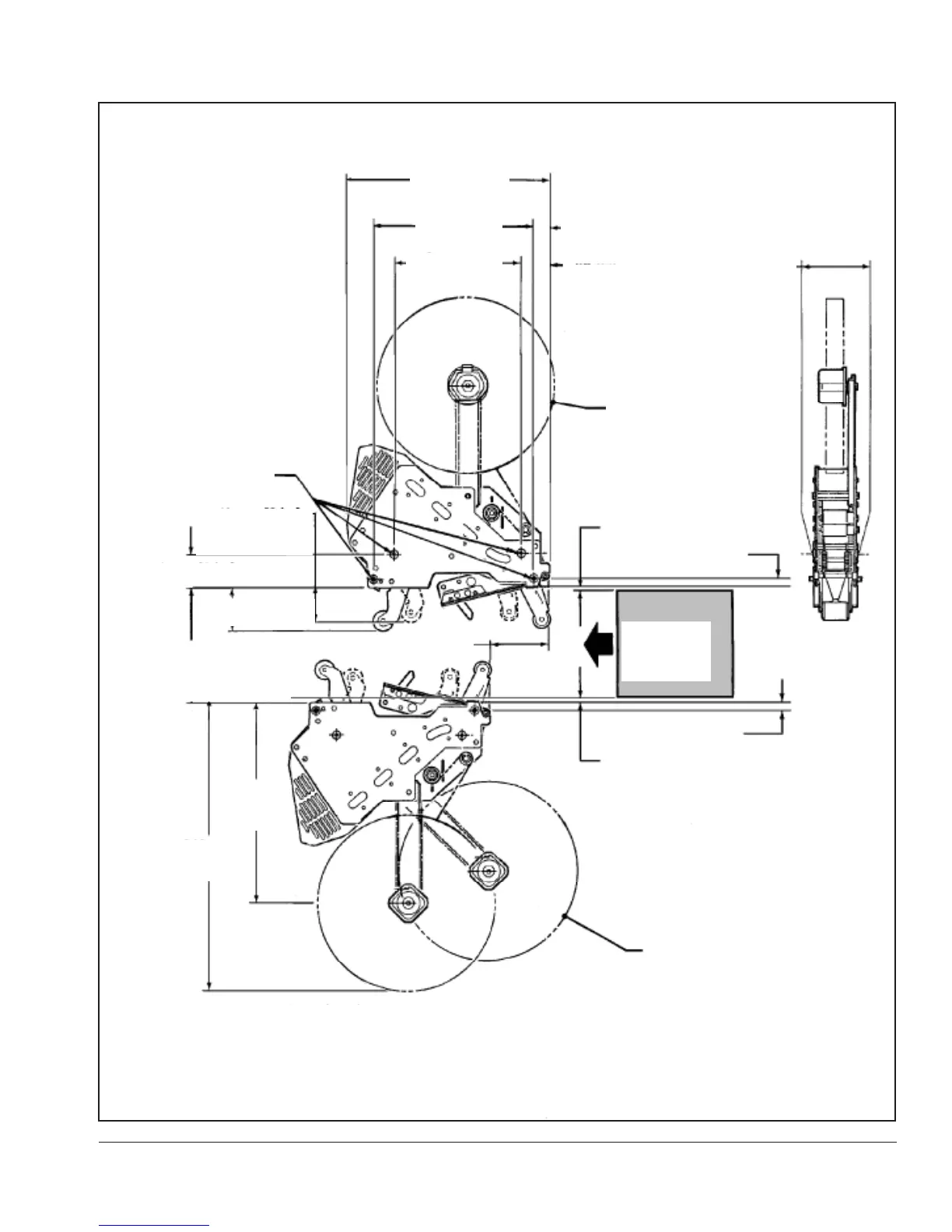

Figure 2-1 Dimensional Drawing
Optional Tape Drum
Mounting Position
6mm [1/4 in.] Maximum
18mm [11/16 in.]
Box
Feed
Direction
18mm [11/16 in.]
Side View
End View
76mm [3 in.]
50mm Tape Leg
76mm [3 in.]
6mm [1/4 in.] Maximum
405mm [16 in.]
Maximum Roll
Diameter
405mm [16 in.]
Maximum Roll
Diameter
445mm
[17-1/2 in.]
*120mm [4 3/4 in.]
Minimum Standard
Head Spacing
M6
Mounting
Holes
* This dimension can be reduced to 90mm
[3-1/2 in.] when both heads are converted
to 50mm [2 in.] tape leg lengths.
648 mm
[25-1/2 in.]
95mm [4 3/4 in.}
142mm [5 5/8 in.}
278mm
[10-15/16 in.]
350mm
[13-3/4 in.]
443mm
[17-7/16 in.]
33mm
[1-19/64 in.]
60mm
[2-3/8 in.]
105mm [4-1/8 in.]
Speci cations (continued)
