3M 2470 - Initializing the System; Wiring Communications Controller

Initializing the System
Performance Series
8
Wiring Communications Controller

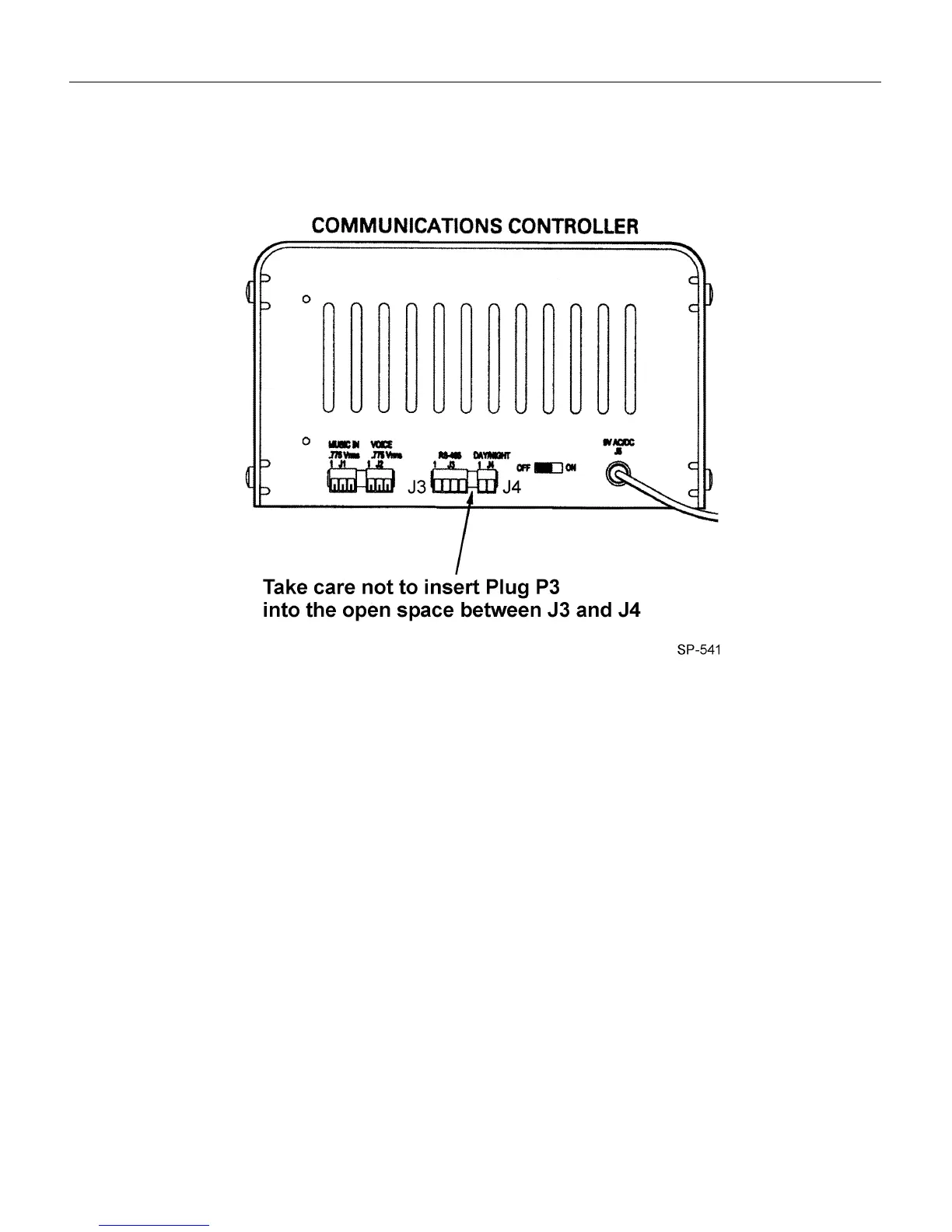

Figure 9. Connecting P3 to Communications Controller
Refer to Configuration Worksheets 2 and 3 to determine the specific wires and connections to be made.
