3M 3MRO40101A Installation And Operating Instructions

Drilling hole through Porcelain/Enamel/Ceramic Sinks
If you are reading this section, professional installation is highly
recommended.
Recommended Tools:
• VariableSpeedDrill
• PorcelainCutterToolSet(7/8”Size)
• Plumber’sPutty
Note: It is important to understand this procedure.
1. The glassy layer of porcelain/enamel/ceramic must be scored
through to the metal base, creating a disk.
2. This disk must be removed while protecting the surrounding deco-
rative coating against chipping or fracturing.
3. The base metal must be drilled through to complete the hole.
Procedure:
1. Mark center for 7/8” hole.
2. Form a dam of shallow putty around hole location and fill with
enough water to lubricate carbide drill bit.
3. Carefully drill pilot hole through porcelain/enamel/ceramic and base
metal using a carbide pilot drill bit. Always operate drill with light
pressure at slow speed (300 - 400 rpm).
4. Drill porcelain/enamel/ceramic using special 7/8” cutting tool,
making certain a complete ring has been cut through to the sink’s
metal base.
5. Change to metal cutting drill bit and drill out the center of the ring,
making sure not to contact other rim of decorative coating. Cut
through metal sink base.
E. MOUNT THE FAUCET
 Undercounterinstallations require afaucet with abuilt-in air gap
such as the one included with the system.
Undercounter Installation With An Air Gap Faucet (Air Gap is provided
by hole 1” above faucet base):
1) Familiarize yourself with all of the components shown in the air gap
faucet diagram. (See Fig. 2)
2) Slide the chrome base plate and rubber washer up the threaded
base of faucet.
3) Connect the 1/4” green tubing supplied in the installation kit to the
smaller barb on the air gap faucet. Push it on firmly until it seats.
4) From above the sink counter-top, feed the air gap tubing and the
threaded nipple through the faucet washer, escutcheon plate and
bottom washer into the faucet mounting hole and position the
faucet spout over the sink.
5) From below the sink/countertop, install the slotted washer, plastic
spacer, base nut and hex nut onto the threaded nipple and tighten
it by hand.
6) After rechecking the faucet orientation, tighten the base nut until the
faucet feels secure, then tighten the hex nut.
F. PREPARE THE SYSTEM FOR INSTALLATION
Check to see that the air charge in the empty tank is approximately
7 psi (48 kPa). Note: Check the storage tank air pre-charge. Adjust it if
necessary. To help keep the membrane as clean as possible, the RO
membrane cartridge has been shipped separately in a sealed plastic bag.
6

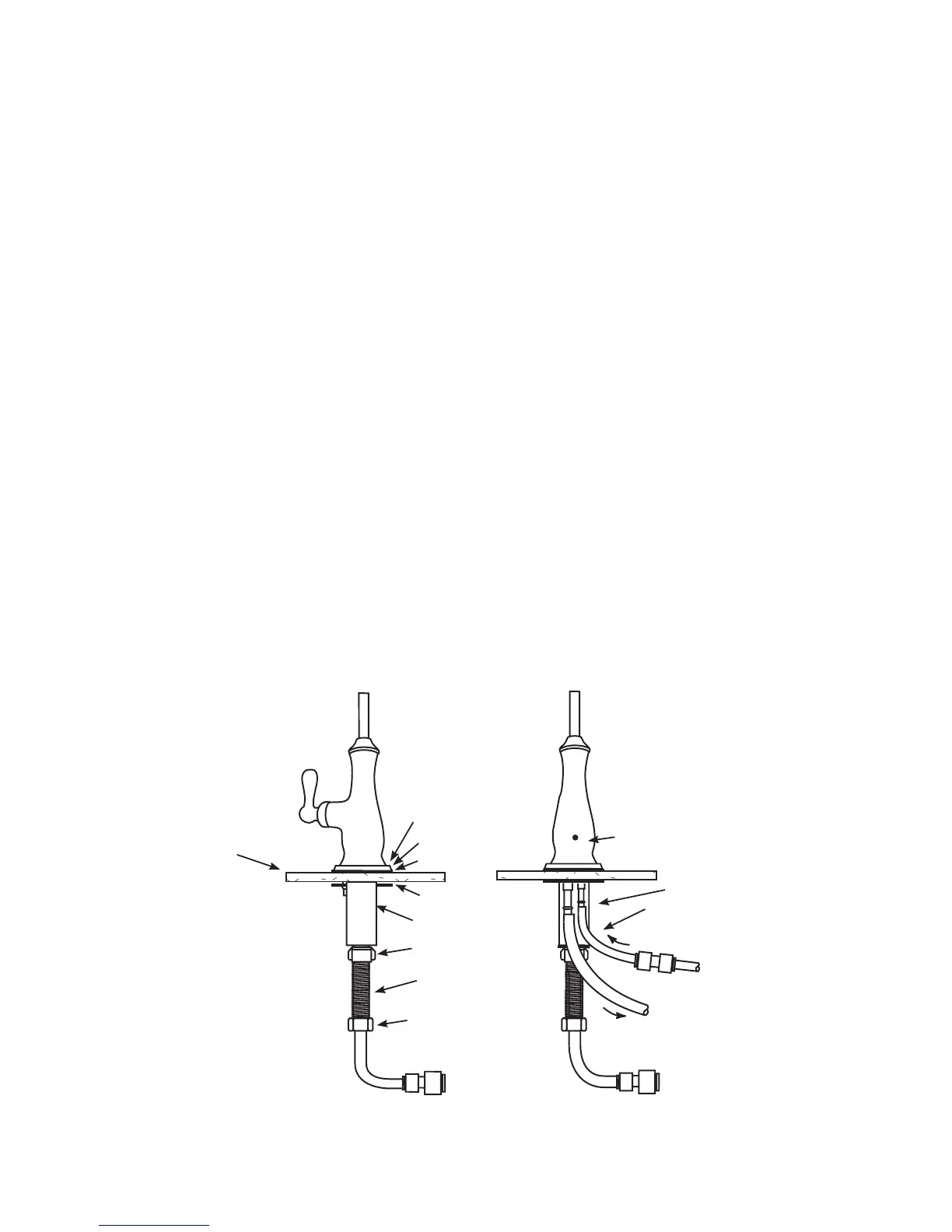

Fig. 2
Faucet with Air Gap
Side View Back View
Air Gap hole
1/4” Standard
green tubing
Special red “SFC”
tube from RO
Black 3/8” Reject
tubing to drain
Blue 3/8” Product
water tubing connection
Blue 3/8” Product
water tubing
Faucet washer
Countertop
Bottom washer
Escutcheon plate
Mounting spacer
Threaded nipple
Hex nut
Slotted washer
Base nut
Mounting spacer
1/4” x 3/8” Tube Connector
1/4” x 3/8” Tube Connector
