2 / 11
MO 0765-0601
740
wrist strap + shoe tester
3
<
>
o.k.
12
MΩ MΩ
2 -
5 -
10 -
35 -
- 10
- 35
- 50
- 100
on / off
+
-

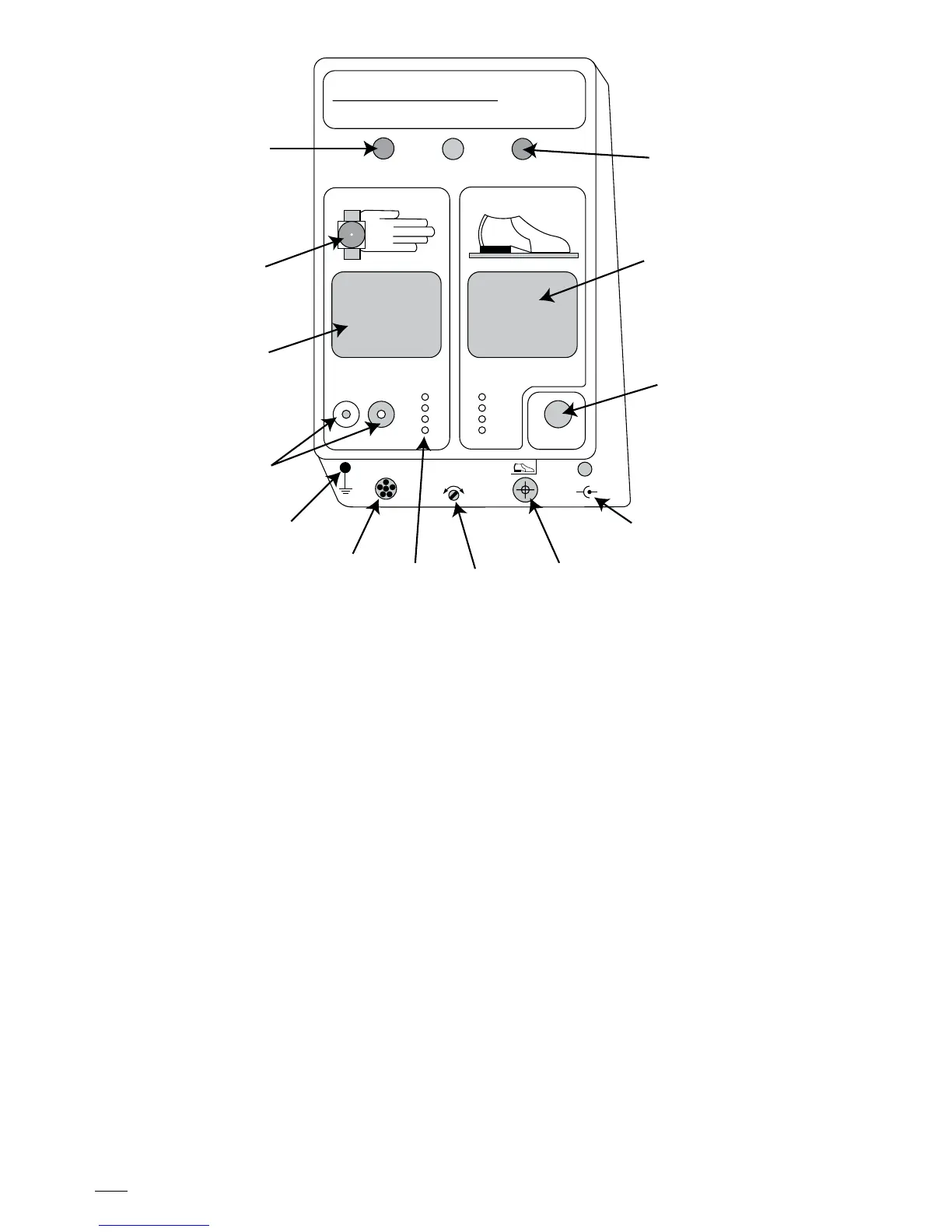

Output
R
max
DC 24
•
30 V / 150 mA
LED for
«too low resistance»
Ground cord
4 mm stud
Contact plate for
wrist strap test
Socket for
wrist strap
Ground Socket
Output signal for external devices
e.g. - data transfer to PC, electrical door
opening system, acoustic signal, etc.
LED
Upper limit
selection for wrist
strap and shoe test
Socket for
shoe electrode
Connection for AC/DC
transformer
On / Off switch
Contact plate
for shoe test
LED for
«too high resistance»
I. General
Personnel grounding devices such as wrist straps
and conductive footwear are the primary method
to minimize charge generation on the human
body. They must be able to drain this charge as
rapidly as it is generated.
For this reason, it is important to test wrist straps
and conductive footwear on a regular basis to
ensure they are functioning properly and that the
test results can be recorded
II. Declaration of Conformity
The 740 Wrist Strap and Shoe Tester is in
conformity with the regulations of the EMC-
directive 89/336/EWG. The following standards
have been taken into account while designing and
manufacturing the instrument:
EN 60204-1/85,
EN 60204-1/91,
EN 61010 (Safety),
EN 50082-1/92 and
EN 50082-2/92.
