Operation
Section 1
Page 38

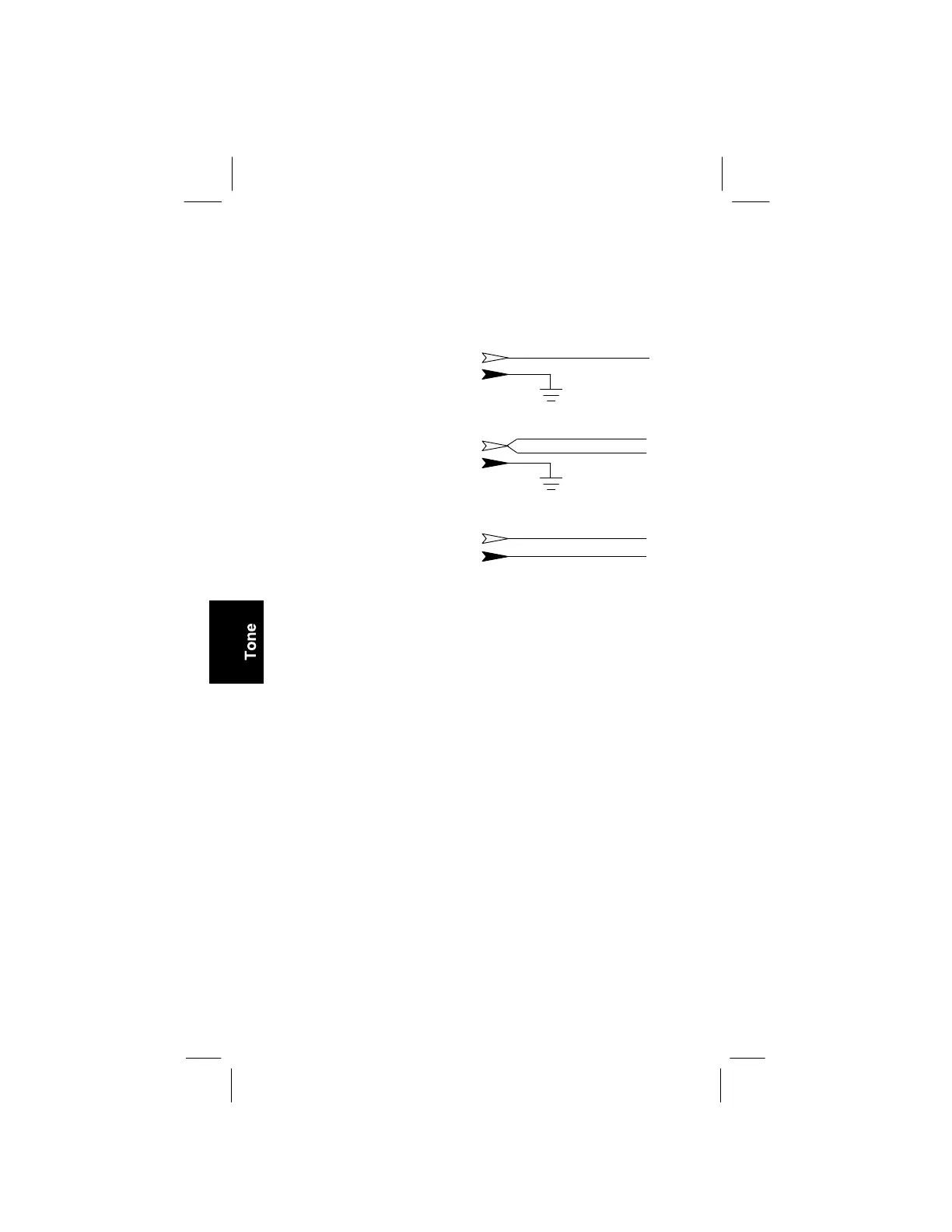

Tone
RED to the CONDUCTOR
TO BE IDENTIFIED
BLACK to GROUND
GREEN not used
Hookup:
For pair identification:
RED to TIP and RING
BLACK to GROUND
GREEN not used
For louder tone (dead pairs only):
R
B
R
B
Hookup:
For loss or gain/slope measurements:
RED to RING
BLACK to TIP
GREEN not used
R
B
About the Tone Function
The tone function provides tone for pair identification.
The
unit can send tone for two hours before automatic
shut-off.
With the TONE key, you can apply precision tone to the
cable for
loss measurements. With the 965/965M, you
can also apply tone of any user-entered frequency and
amplitude
for loss or gain/slope measurements.
For the specific tone output of your test set, see Section
Three, “Specifications.”
Caution
If hazardous voltage warnings are displayed when the test set is
switched on or reset (or at any time during the testing
procedure) follow standard procedures for de-energizing and
discharging cables.
