Operation
Section 1
Page 47

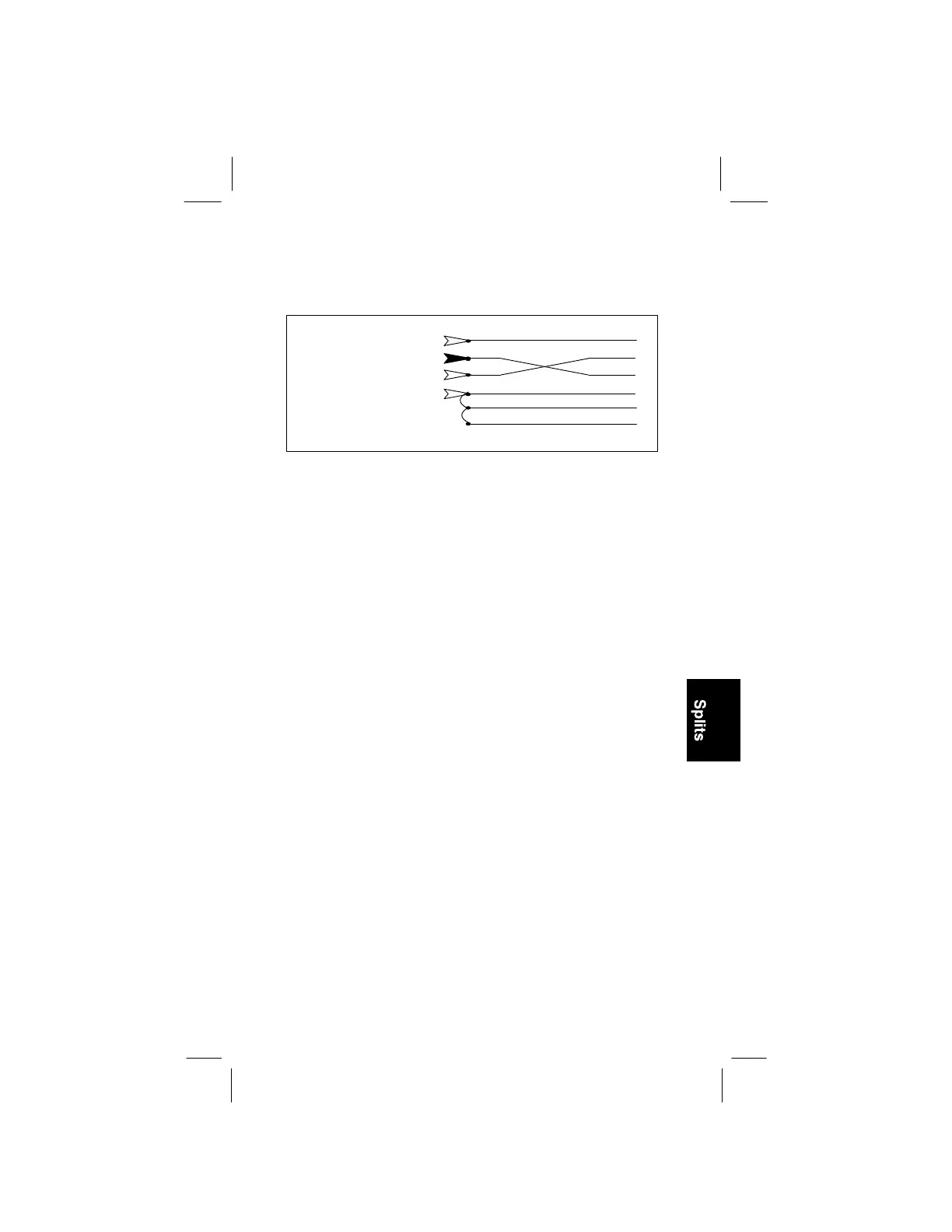

Split Locate Hookup
Hookup:
RED to GOOD 1
BLACK to SPLIT 1
GREEN to SPLIT 2
YELLOW to GOOD 2
shorted to PAIR 3
Pair 3
Pair 1
Pair 2
R
B
G
Y
