PART NAMES

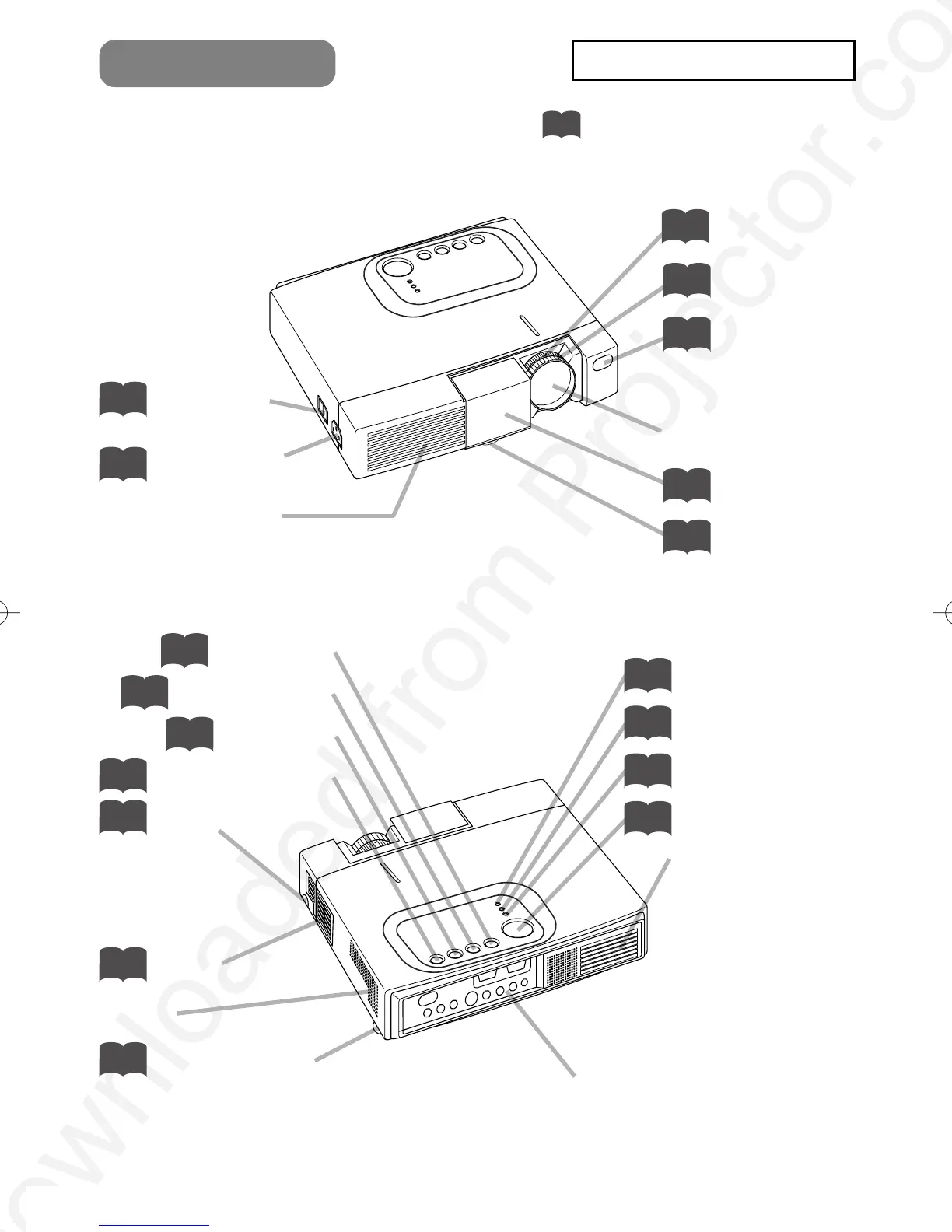

THE PROJECTOR
Indicates the corresponding
reference page
AC power inlet
(to the Power Cord)
3
Ventilation Openings
(Intake)
Power switch
Zoom ring
15
Focus ring
15
Remote sensor
13
Lens
Slide Lens Door
14
Foot Adjuster
6
Air filter
26
KEYSTONE button
20
2
STANDBY/ON button
14
INPUT button
15
RESET button
Speaker
Foot Adjuster button
6
Rear Foot Adjuster
6
LAMP indicator
25
TEMP indicator
26
POWER indicator
14
MENU button
23
Ventilation Openings
(Exhaust)
Terminal Panel
