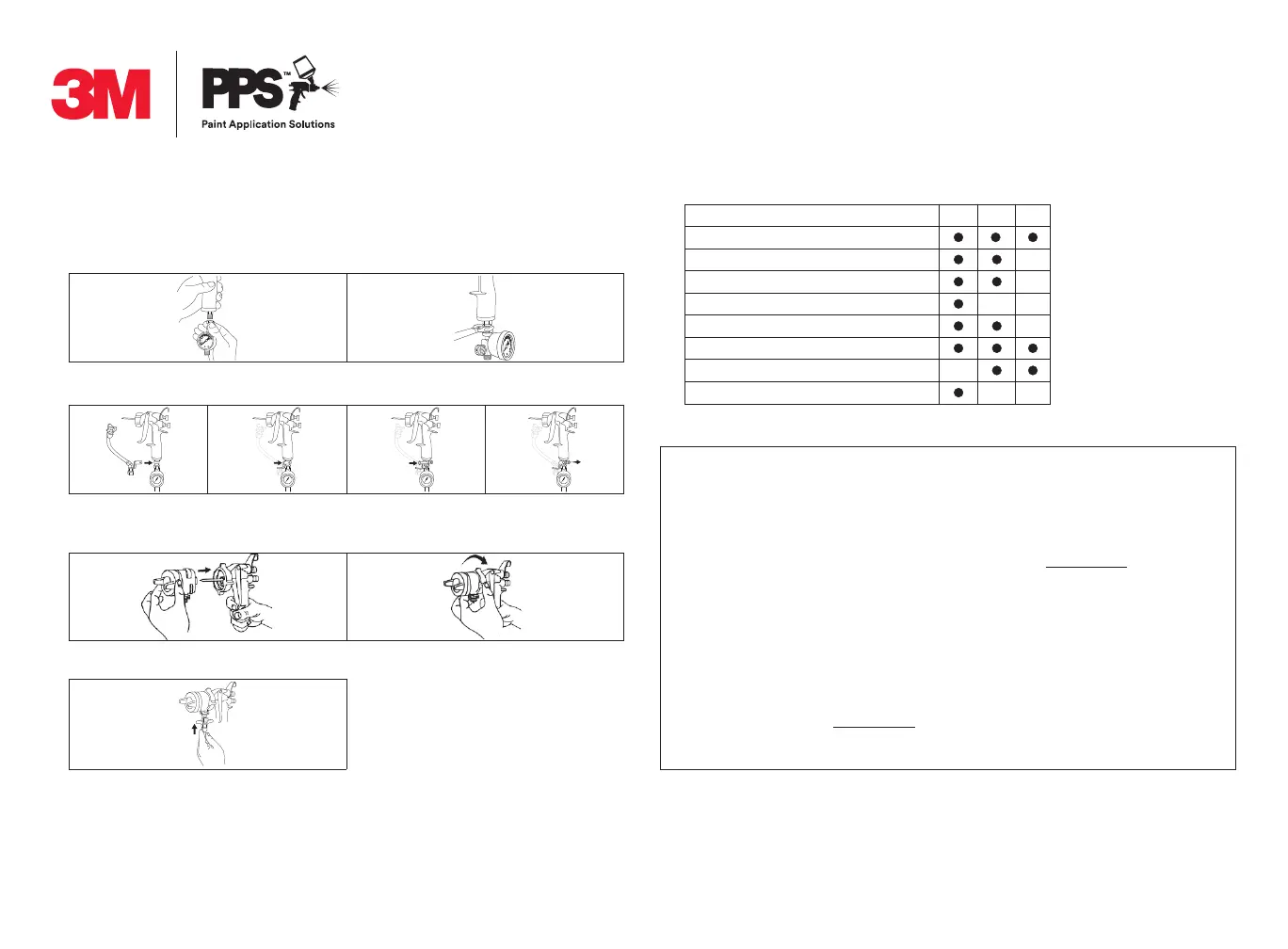

Attach Fluid Hose Whip to base of spray gun.
2
1
Attach the supplied air ow valve to the bottom of the gun.
4
Connect hose whip to nozzle.
5
Attach fluid and pressure lines from bulk feed system (or pressure pot) Note: Utilize the optional
manual fluid shut-off valve, if desired, between hose whip and fluid supply
3
Attach the nozzle to the spray gun with the locking collar fully connected. Note: It is easier to
install the nozzle while pulling the trigger backward toward the spray gun handle.
Cleaning
1.1 1.4 1.8
Base Coat / Single Stage Materials
Release Agents
1K Top Coats
2K Top Coats
Clear Coats
Textured Paints
Epoxy / Urethanes Primers
Adhesives
Nozzle Recommendation
*Starting points only, refer to Paint Manufacture for recommendation on fluid tip size
Assembly
3M™ Performance Spray Gun HVLP – Pressure
Maximum Operating Air Pressure: 18 psi / 1.24 bar
Maximum Operating Fluid Pressure: 50 psi/ 3.44 bar.
Recommended Set Up Starting Points
Fan Control Knob: Open 2 rotations from closed position
Fluid Control Knob: Open 4 rotations from closed position
Air Flow Control Valve: 18 psi / 1.24 bar.
Once the system is adequately flushed (pot, lines), depressurize the system (or close the
optional fluid valve)
After pressure is relieved, remove the hose whip from the nozzle.
Remove nozzle from spray gun to clean residue from the nozzle. Rinse out and flush
cleaning solvent through the nozzle with fluid tip pointed straight down into receptacle
to collect waste solvent.
Wipe needle tip. Store spray gun with a nozzle attached to protect the needle.
1
2
4
3
Pressure
Gravity
1
2
4
3
Once coating application is complete, disconnect the air hose from the gun.
To drain back paint into cup - Invert cup, pull trigger, and tap the PPS™ cup on a table
3 times.
Rinse out nozzle spout and flush cleaning solvent through the nozzle by pulling trigger
with fluid tip pointed straight down into receptacle to collect waste solvent.
Store spray gun with a nozzle attached to protect the needle.
The maximum operational air pressure of this HVLP spray gun is 18 psi/1.24 bar.
The maximum operational fluid pressure is 50 psi/ 3.44 bar.
WARNING!
Do not immerse spray gun or nozzles in cleaning solvents or gun washers.
See manual for additional use and safety information.
For additional questions, contact your local 3M representative.
