3M S55I - Arrangement

8
Arrangement

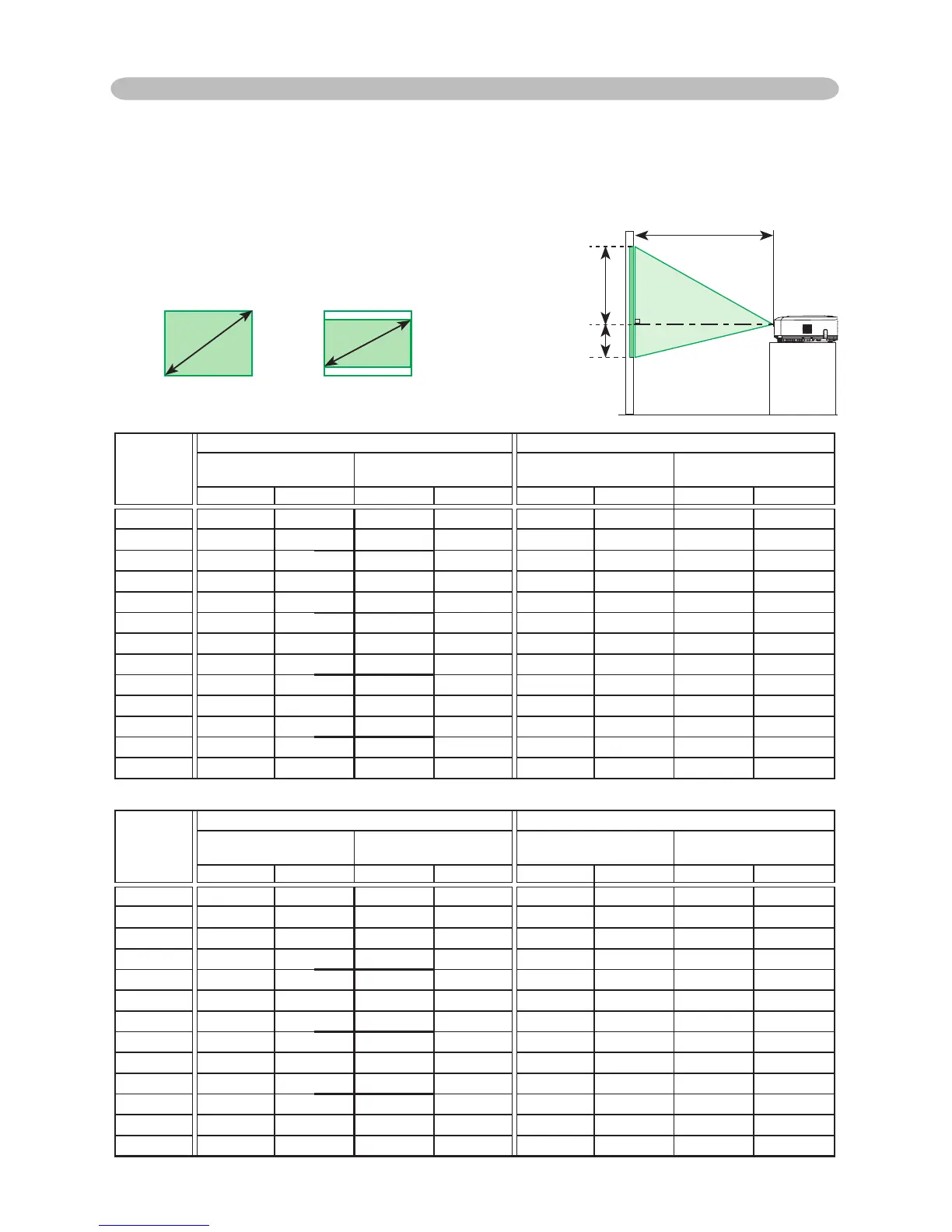

Refer to the illustrations and tables below to determine the screen size and projection distance.
The values shown in the table are calculated for a full size screen: S55i : 800×600, X55i :
1024×768
(a) The screen size (diagonal)
(b) Distance from the projector to the screen (±10%)
(c) The height of the screen (±10%)
Setting up
4:3
(a)
16:9
(a)
For the model X55i
For the model
S55i
(a) Screen
size
[inch (m)]
4 : 3 screen
16 : 9 screen
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
min.
max. down
up min. max.
down up
30 (0.8) 0.9 (36)
1.1 (43)
5 (2)
41 (16)
1.0 (39) 1.2 (47)
-1 (0) 39 (15)
40 (1.0) 1.2 (48) 1.5 (57) 6 (2) 55 (22) 1.3 (52) 1.6 (63) -2 (-1) 51 (20)
50 (1.3) 1.5 (60) 1.8 (72) 8 (3) 69 (27) 1.7 (65) 2.0 (79) -2 (-1) 64 (25)
60 (1.5) 1.8 (72) 2.2 (87) 9 (4) 82 (32) 2.0 (79) 2.4 (94) -2 (-1) 77 (30)
70 (1.8) 2.1 (84) 2.6 (101) 11 (4) 96 (38) 2.3 (92) 2.8 (110) -3 (-1) 90 (35)
80 (2.0) 2.4 (96) 2.9 (116) 12 (5) 110 (43) 2.7 (105) 3.2 (126) -3 (-1) 103 (41)
90 (2.3) 2.8 (109) 3.3 (130) 14 (5) 123 (49) 3.0 (118) 3.6 (142) -4 (-1) 116 (46)
100 (2.5) 3.1 (121) 3.7 (145) 15 (6) 137 (54) 3.3 (132) 4.0 (158) -4 (-2) 129 (51)
120 (3.0) 3.7 (145) 4.4 (174) 18 (7) 165 (65) 4.0 (158) 4.8 (190) -5 (-2) 154 (61)
150 (3.8) 4.6 (182) 5.5 (218) 23 (9) 206 (81) 5.0 (198) 6.0 (238) -6 (-2) 193 (76)
200 (5.1) 6.2 (242) 7.4 (291) 30 (12) 274 (108) 6.7 (264) 8.1 (317) -8 (-3) 257 (101)
250 (6.4) 7.7 (303) 9.3 (364) 38 (15) 343 (135) 8.4 (330) 10.1 (397) -10 (-4) 322 (127)
300 (7.6) 9.2 (364) 11.1 (437)
46 (18)
411
(162)
10.1 (397) 12.1 (476)
-12 (-5) 386 (152)
(a) Screen
size
[inch (m)]
4 : 3 screen
16 : 9 screen
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
min.
max. down
up
min.
max. down up
30 (0.8) 0.9 (36)
1.1 (43)
5 (2)
41 (16)
1.0 (39)
1.2 (47)
-1 (0) 39 (15)
40 (1.0) 1.2 (48) 1.5 (58) 6 (2) 55 (22) 1.3 (52) 1.6 (63) -2 (-1) 51 (20)
50 (1.3) 1.5 (60) 1.8 (73) 8 (3) 69 (27) 1.7 (66) 2.0 (79) -2 (-1) 64 (25)
60 (1.5) 1.8 (73) 2.2 (87) 9 (4) 82 (32) 2.0 (79) 2.4 (95) -2 (-1) 77 (30)
70 (1.8) 2.2 (85) 2.6 (102) 11 (4) 96 (38) 2.4 (93) 2.8 (111) -3 (-1) 90 (35)
80 (2.0) 2.5 (97) 3.0 (117) 12 (5) 110 (43) 2.7 (106) 3.2 (127) -3 (-1) 103 (41)
90 (2.3) 2.8 (109) 3.3 (132) 14 (5) 123 (49) 3.0 (119) 3.6 (143) -4 (-1) 116 (46)
100 (2.5) 3.1 (122) 3.7 (146) 15 (6) 137 (54) 3.4 (133) 4.0 (159) -4 (-2) 129 (51)
120 (3.0) 3.7 (146) 4.5 (176) 18 (7) 165 (65) 4.0 (159) 4.9 (192) -5 (-2) 154 (61)
150 (3.8) 4.6 (183) 5.6 (220) 23 (9) 206 (81) 5.1 (200) 6.1 (240) -6 (-2) 193 (76)
200 (5.1) 6.2 (244) 7.5 (294) 30 (12) 274 (108) 6.8 (266) 8.1 (320) -8 (-3) 257 (101)
250 (6.4) 7.8 (306) 9.3 (367) 38 (15) 343 (135) 8.5 (333) 10.2 (400) -10 (-4) 322 (127)
300 (7.6) 9.3 (367) 11.2 (441)
46 (18)
411
(162)
10.2 (400) 12.2 (480)
-12 (-5) 386 (152)
(c) up
(b)
(c) down
3M™ Digital Projector S55i/X55i
© 3M 2005. All Rights Reserved.
