3M SFT-200 - Page 20

Soft water Untreated water
Untreated water Untreated water
Fig 5.2.1
Fig 5.2.2
Untreated water Untreated water

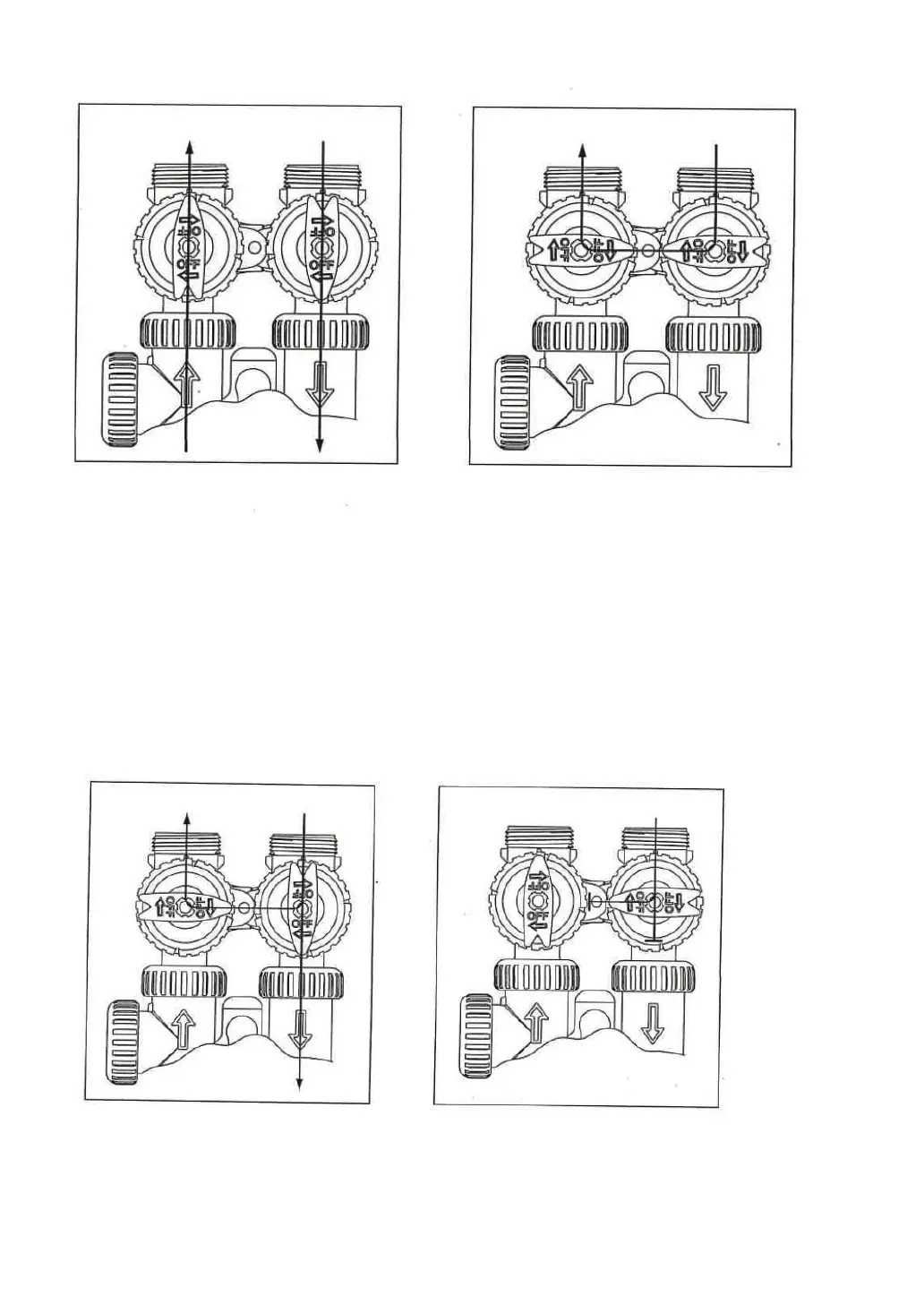

5.2.3 Diagnostic operation (Fig. 5.2.3): Untreated water enters the inlet of bypass valve and diagnostic
operation can be perform when process such as manual regeneration is activated. Untreated water exit the
system via the outlet of bypass valve into the outlet pipe.
5.2.4 Off Mode (Fig. 5.2.4): Completely no water flow to the system or outlet pipe as bypass valve is off.
Fig 5.2.3
Fig 5.2.4
