Cable Connections
CABLE CONNECTIONS

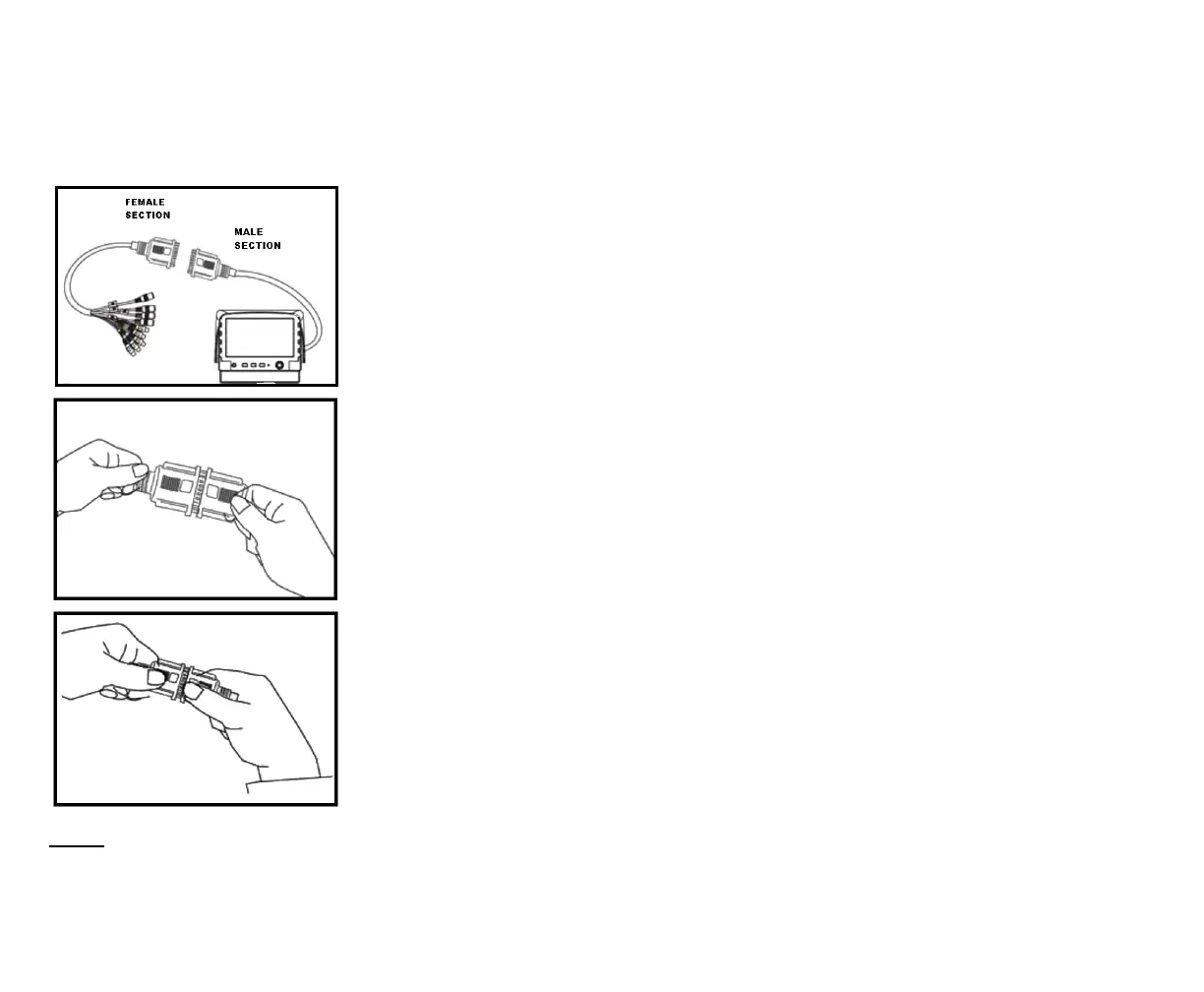

1. The first part of the cable which connected with the LCD Monitor, herewith we
called the Male Section
2. The second part of the cable which ended with the RCA/MINI DIN connectors,
herewith we called the Female Section.
Connection steps are:
1. Connect the “Male Section” to the “Female Section".
2. Tighten up the side screws.
NOTE: The Cable should be stored in a dry place and please try to avoid the water and humidity, otherwise, it may cause
problem of the product itself or even more dangerous.
