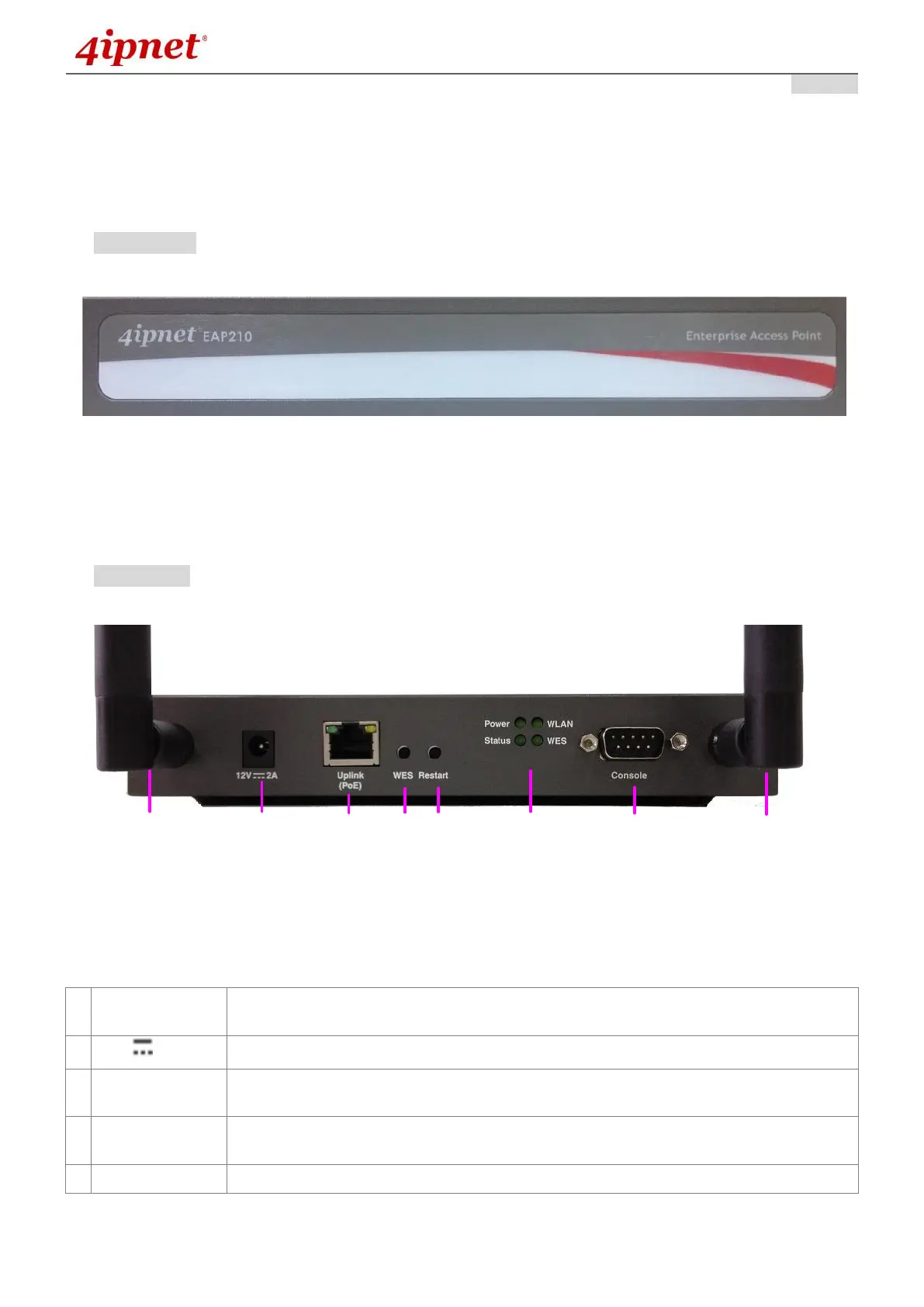

2.2 Hardware Description
This section depicts the hardware information including all panel description.
EAP210
Front Panel
EAP210 Front Panel
Rear Panel
1 2 3
7
14
5
6
EAP210 Rear Panel
1
Antenna
Connector
Reverse SMA connectors for attaching antennas.
2
12V 2A
Power Socket for the power adaptor.
3
Uplink Port
The port for uplink connection to another gateway or device. PoE (802.3af/at) is
supported.
4
WES Button
WDS Easy Setup. Press the button to build up a WDS link with another peer. 4 WDS
links can be set up.
5
Restart Button
Press to restart the system
