User’s Manual
Enterprise Access Point ENGLISH
12
Copyright © 4IPNET, INC.

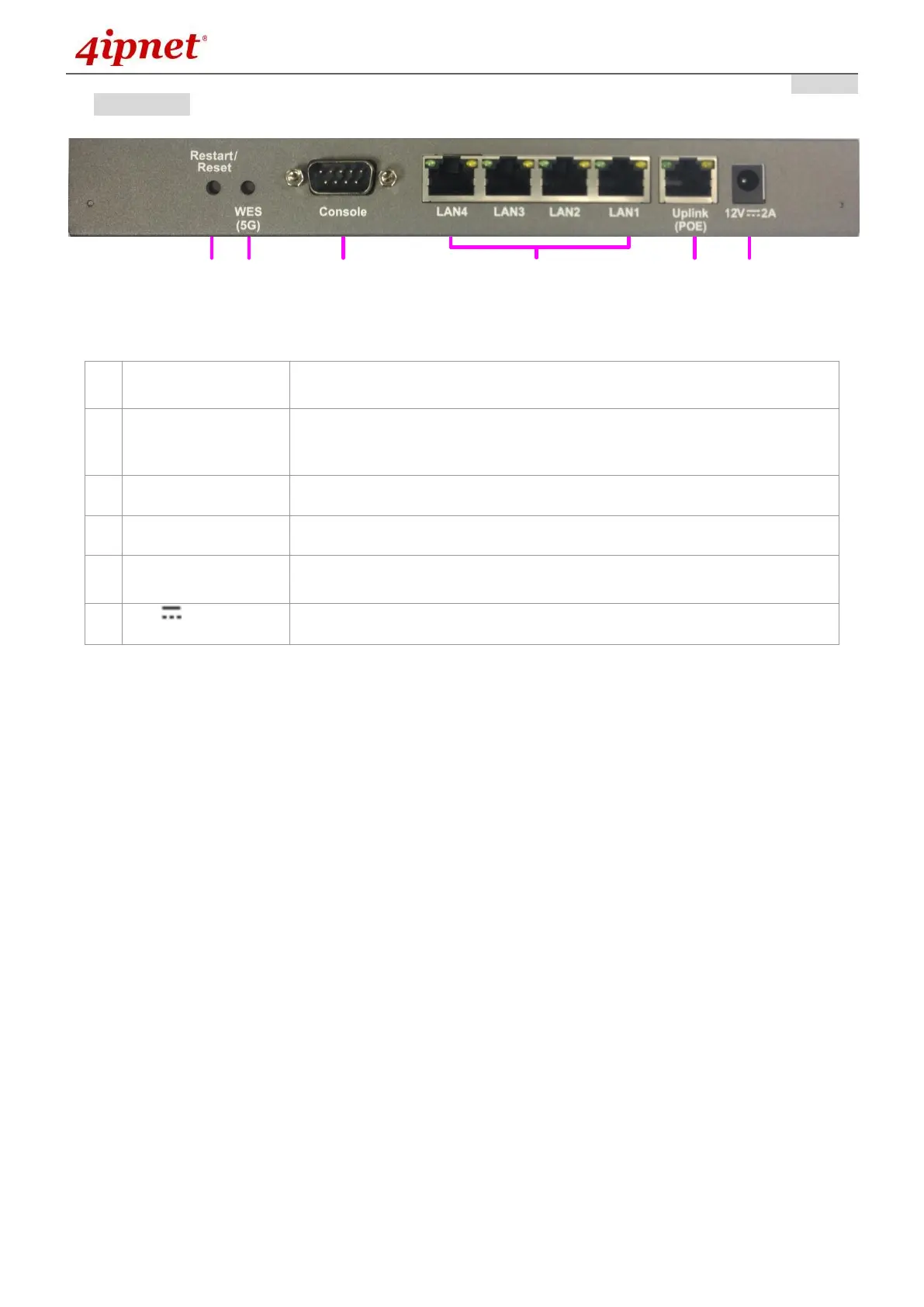

Rear Panel
1 2 3 5 64
EAP220 Rear Panel
1
Restart / Reset
Press once to restart the system; to reset the system to factory default
settings, hold for more than 5 seconds.
2
WES Button (RF B)
WDS Easy Setup. Press the button to build up a WDS link with another
peer. 4 WDS links can be set up per RF card. Note that the WES Button
only runs on the 5 GHz RF Card B.
3
Console Port
To access EAP220 via the console interface.
4
LAN 1~4 Ports
The ports for connections with LAN side devices.
5
Uplink Port (PoE)
The port for uplink connection to another gateway or device. PoE (802.3at)
is supported.
6
12V 2A
Power Socket for the power adaptor
